🔧 Civic - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers up, swap in new pads (and clips), then reassemble and verify pedal feel. This matters because worn pads reduce braking power and can damage your rotors if ignored.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground; chock the rear wheels before lifting.
• 🛑 Support your Civic with jack stands—never rely on a floor jack alone.
• 🛑 Brakes can be hot; let components cool before touching.
• 🛑 Do not let the caliper hang by the brake hose; it can damage the hose.
• 🛑 Watch brake fluid level while compressing the piston; it can overflow.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum, pair)
• Wheel chocks
• 19mm socket
• Breaker bar (1/2-inch drive)
• Torque wrench (1/2-inch drive)
• 12mm socket
• Ratchet (3/8-inch drive)
• Flathead screwdriver
• C-clamp (6-inch minimum) or disc brake piston compressor (specialty)
• Bungee cord or mechanics wire
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (clips) - Qty: 1
• Silicone brake lubricant (caliper grease) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on a level surface, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind both rear tires.
• Loosen the front lug nuts slightly before lifting (don’t remove them yet).
• Open the hood and locate the brake fluid reservoir; you’ll re-check level after compressing pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and lift the front

• Use a 19mm socket and breaker bar to loosen (not remove) the front lug nuts.
• Lift the front with a floor jack and set the car onto jack stands at the proper lift points.
• Remove the lug nuts with the 19mm socket and take off both front wheels.

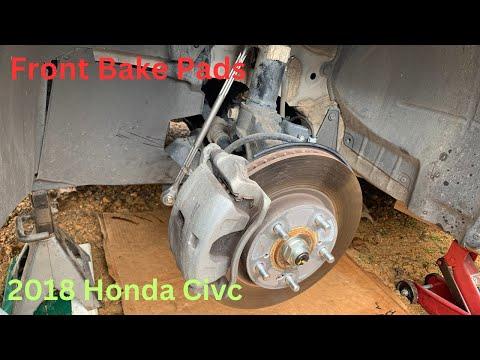

Step 2: Locate the caliper and remove the lower slide-pin bolt

• Find the brake caliper (the clamp that squeezes the rotor).
• Use a 12mm socket and ratchet to remove the lower caliper slide-pin bolt.
• Loosen (but don’t remove) the upper 12mm slide-pin bolt if needed to help the caliper pivot.

Step 3: Swing the caliper up and support it

• Use a flathead screwdriver gently if needed to help the caliper move up off the pads.
• Swing the caliper upward like a hinge.
• Support the caliper with a bungee cord or mechanics wire so there’s no strain on the brake hose.
• Do not twist or stretch the brake hose.

Step 4: Remove old pads and hardware clips

• Pull the inner and outer pads straight out by hand.
• Remove the stainless pad clips from the caliper bracket by hand or with a flathead screwdriver.
• Use a wire brush and brake cleaner spray to clean the bracket “pad lands” (where the clips sit).

Step 5: Compress the caliper piston

• Place one old brake pad against the piston face.
• Use a C-clamp (6-inch minimum) or disc brake piston compressor (specialty) to slowly push the piston fully back into the caliper.
• Check the brake fluid reservoir under the hood as you compress; if it approaches the MAX line, stop and remove a little fluid before continuing.

Step 6: Install new clips and pads (with correct lubrication)

• Install the new pad clips from the hardware kit into the caliper bracket by hand.
• Apply a very thin film of silicone brake lubricant where the pad ears slide in the clips (metal-to-metal contact points only).
• Install the new inner and outer pads into the bracket by hand.
• Keep grease off pad friction material and rotor.

Step 7: Reinstall the caliper and tighten slide-pin bolt(s)

• Swing the caliper back down over the new pads.
• Start the lower slide-pin bolt by hand to avoid cross-threading, then tighten using a 12mm socket and ratchet.
• Final-tighten with a torque wrench (a torque wrench is a tool that tightens bolts to an exact spec): Torque to 34 Nm (25 ft-lbs).

Step 8: Reinstall wheels and torque lug nuts

• Reinstall the wheels and thread lug nuts by hand.
• Lower the car off the jack stands using the floor jack.
• Use a torque wrench with 19mm socket to tighten lug nuts in a star pattern: Torque to 108 Nm (80 ft-lbs).

Step 9: Seat the pads before moving the car

• With the engine off, press the brake pedal slowly 10–15 times until it feels firm.
• Check the brake fluid reservoir level and top off only if needed (don’t overfill).
• Spray any greasy fingerprints off the rotor area using brake cleaner spray.

---

✅ After Repair

• Start the engine and confirm the brake pedal remains firm.
• Do a slow test in a safe area: roll at 5–10 mph and brake gently to confirm normal stopping.
• Bed-in (break-in) the pads: perform 6–10 moderate stops from ~30 mph to ~5 mph, allowing 30–60 seconds between stops for cooling.
• Re-check for any unusual noises, pulling, or a burning smell after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹4,000-₹9,000 (parts + labor)

DIY Cost: ₹1,800-₹5,000 (parts only)

You Save: ₹2,200-₹4,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,500/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
