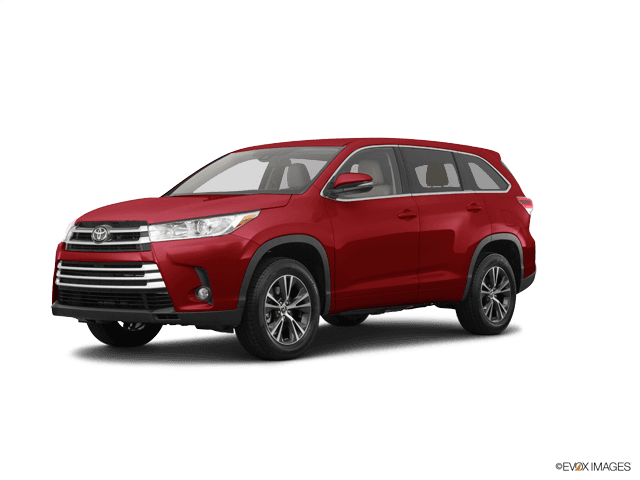

🔧 Highlander - Front Brake Pad Replacement

This repair replaces the front brake pads on your Highlander. The front pads do most of the stopping work, so replacing them correctly helps restore safe braking and prevents rotor damage.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool vehicle. Brake parts can get very hot after driving.
• ⚠️ Support your Highlander with jack stands before working under or around the wheels. Never rely on a jack alone.
• ⚠️ Do not press the brake pedal while the caliper is removed.
• ⚠️ Brake dust can be harmful. Use brake cleaner, not compressed air, to clean brake parts.
• ⚠️ Battery disconnect is not required for this front brake pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug nut socket
• 14mm socket
• 17mm wrench
• 3/8-inch ratchet
• 1/2-inch breaker bar
• Torque wrench rated to 100 ft-lbs
• Disc brake pad spreader tool (specialty)
• Flat-blade screwdriver
• Wire brush
• Brake cleaner spray
• Catch pan
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

A breaker bar is a long handle used to loosen tight bolts. A torque wrench tightens bolts to the exact tightness Toyota requires.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake caliper slide pin grease - Qty: 1
• Brake cleaner spray - Qty: 1

---

📋 Before You Begin

• Park your Highlander on level ground.
• Shift to Park and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir. If it is filled to the very top, remove a small amount with a clean suction tool before pushing the caliper pistons back.
• Front brake service on your Highlander does not require an infotainment menu, EPB service mode, scan tool, or battery disconnect.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Put on safety glasses and nitrile gloves.
• Use the 21mm lug nut socket and 1/2-inch breaker bar to loosen each front lug nut about half a turn.
• Do not remove the lug nuts yet.
• Loosen while tires touch ground.

Step 2: Raise and Support the Front

• Use the floor jack rated 3-ton minimum at the front center jacking point to raise the front of your Highlander.
• Place jack stands rated 3-ton minimum under the proper front support points.
• Slowly lower the vehicle onto the jack stands.
• Gently shake the vehicle by hand to confirm it is stable before removing wheels.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and 3/8-inch ratchet to remove the loosened lug nuts.
• Remove both front wheels and place them flat under the side of the vehicle as an added safety backup.

Step 4: Remove the Brake Caliper

• Turn the steering wheel to give yourself better access to the caliper you are working on.
• Use the 14mm socket and 3/8-inch ratchet to remove the lower and upper caliper slide bolts.
• If the slide pin spins, hold it with the 17mm wrench while loosening the bolt with the 14mm socket.
• Lift the caliper off the bracket.
• Do not let the caliper hang by the rubber brake hose. Rest it carefully on the suspension or support it securely.

Step 5: Remove the Old Brake Pads

• Use the flat-blade screwdriver to gently pry the old inner and outer brake pads out of the caliper bracket.
• Note the position of any wear indicator clip. The wear indicator is a small metal tab that makes noise when the pad is worn out.
• Remove the old pad hardware clips from the bracket by hand or with the flat-blade screwdriver.

Step 6: Clean the Caliper Bracket

• Place the catch pan under the brake area.
• Use brake cleaner spray to clean the pad contact areas on the caliper bracket.
• Use the wire brush to remove rust or buildup where the hardware clips sit.
• Do not breathe brake dust or blow it with air.

Step 7: Install New Brake Hardware

• Snap the new front brake pad hardware kit clips into the caliper bracket by hand.
• Make sure each clip sits flat and fully seated.
• Apply a very thin layer of brake caliper slide pin grease to the pad ears where they touch the hardware clips.
• Do not get grease on the brake pad friction surface or rotor.

Step 8: Compress the Caliper Piston

• Check the brake fluid reservoir under the hood. Fluid level may rise as the piston is pushed back.
• Place an old brake pad against the caliper piston.
• Use the disc brake pad spreader tool to slowly push the caliper piston fully back into the caliper.
• Move slowly so brake fluid does not overflow from the reservoir.

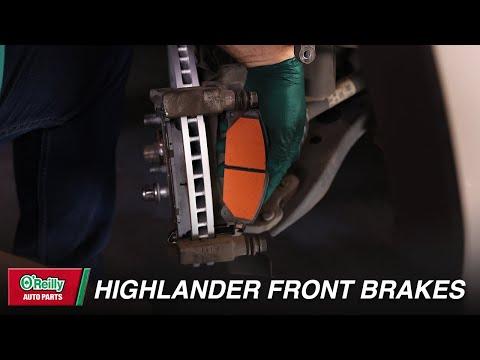

Step 9: Install the New Front Brake Pads

• Slide the new front brake pad set into the caliper bracket by hand.
• Install the pad with the wear indicator in the same general position as the original pad.
• The pads should slide smoothly in the new hardware. If they bind, remove them and recheck the clip seating.

Step 10: Reinstall the Brake Caliper

• Carefully lower the caliper over the new pads.
• Install the upper and lower caliper slide bolts by hand first to avoid cross-threading.
• Use the 14mm socket, 17mm wrench, and torque wrench rated to 100 ft-lbs to tighten the caliper slide bolts.
• Torque to 34 Nm (25 ft-lbs)

Step 11: Repeat on the Other Side

• Repeat Steps 4 through 10 on the opposite front brake.
• Always replace front brake pads in pairs.

Step 12: Reinstall the Front Wheels

• Put each wheel back on by hand.
• Install the lug nuts by hand first.
• Use the 21mm lug nut socket and 3/8-inch ratchet to snug the lug nuts in a star pattern.

Step 13: Lower and Torque the Wheels

• Use the floor jack rated 3-ton minimum to raise the vehicle slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower your Highlander until the tires touch the ground.
• Use the 21mm lug nut socket and torque wrench rated to 100 ft-lbs to tighten the lug nuts in a star pattern.
• Torque to 103 Nm (76 ft-lbs)

Step 14: Pump the Brake Pedal

• Before driving, press the brake pedal slowly several times until it feels firm.
• This moves the caliper pistons back out against the new pads.
• If the pedal stays soft or sinks, do not drive until the brake system is inspected.

---

✅ After Repair

• Check the brake fluid level and make sure it is between the MIN and MAX marks.
• Start your Highlander and press the brake pedal again. It should feel firm.
• Test the brakes at very low speed in a safe area before normal driving.
• Bed in the new pads by making several gentle stops from moderate speed. Avoid hard braking for the first 100-200 miles unless needed for safety.
• After a short test drive, check for scraping noises, burning smells, or fluid leaks.
• Recheck lug nut torque after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $130-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
