🔧 Escape - Front Brake Pad Replacement

You’ll be removing the front wheels, taking off the brake calipers, swapping the pads, and reassembling everything with the correct torque. This restores braking performance and prevents damage to the rotors if your pads are worn or noisy.

Difficulty Level: Beginner-Intermediate | Estimated Time: 1.5–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the Escape with jack stands, never rely only on a floor jack.
• 🛑 Work on a flat, solid surface with the transmission in Park and parking brake fully applied.
• 🛑 Do not press the brake pedal when a caliper is off the rotor, or the piston can pop out.
• 🛑 Brake dust can be harmful; avoid compressed air and use brake cleaner instead.
• 🛑 Keep brake fluid off paint; it can damage painted surfaces quickly.
• 🛑 You do not need to disconnect the battery for front pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum, Qty: 2)
• 🧰 Wheel chocks
• 🧰 1/2" drive breaker bar
• 🧰 1/2" drive torque wrench (10–150 ft-lbs range)
• 🧰 3/8" drive ratchet
• 🧰 7mm hex socket
• 🧰 18mm socket
• 🧰 19mm socket
• 🧰 Socket extension (3"–6")
• 🧰 Flathead screwdriver (medium)
• 🧰 C-clamp (6" or larger) or disc brake piston tool
• 🧰 Wire brush
• 🧰 Bungee cord or wire hanger
• 🧰 Brake cleaner spray
• 🧰 Shop towels or rags
• 🧰 Disposable gloves
• 🧰 Safety glasses
• 🧰 Small catch pan or tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧱 Front brake pad set (left and right) - Qty: 1 set
• 🧱 Front brake hardware kit (pad clips/shims) - Qty: 1 set
• 🧱 High-temperature brake grease - Qty: 1 small tube
• 🧱 Brake cleaner - Qty: 1–2 cans
• 🧱 Front brake rotors - Qty: 2 (optional but recommended if worn or scored)
• 🧱 Anti-seize compound - Qty: 1 small tube (for wheel hub if needed)

---

📋 Before You Begin

• 🚗 Park the Escape on a flat, level surface, set the parking brake, and place wheel chocks behind the rear wheels.
• 🚗 Make sure the engine is off and the key is removed from the ignition.
• 🚗 Loosen the front wheel lug nuts one turn with the 19mm socket before lifting the vehicle.
• 🚗 Open the hood and locate the brake fluid reservoir; if it’s very full, be ready to absorb some fluid with a clean rag as you compress the pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front of the Escape

• Use the floor jack under the front center jacking point (just behind the front subframe crossmember) to raise the front of the vehicle.
• Place jack stands under the pinch welds on both sides, just behind the front wheels, and slowly lower the vehicle onto the stands.
• Give the Escape a gentle push to confirm it is stable on the stands before working.

Step 2: Remove the front wheels

• Use the 19mm socket and breaker bar to fully remove the lug nuts from both front wheels.
• Remove the wheels and set them aside in a safe place.
• Lay wheels flat so they can’t roll away.

Step 3: Inspect rotors and brake hoses

• Visually check the brake rotors through the caliper opening. If they have deep grooves, cracks, or a heavy lip at the edge, plan to replace them.
• Inspect the rubber brake hoses for cracks, bulges, or wet spots that could indicate a leak.

Step 4: Remove caliper guide pin bolts

• Locate the two guide pin bolts on the back of the caliper (top and bottom).
• Use the 7mm hex socket and 3/8" ratchet to loosen and remove both guide pin bolts.
• Set the bolts aside somewhere clean so they stay free of dirt.

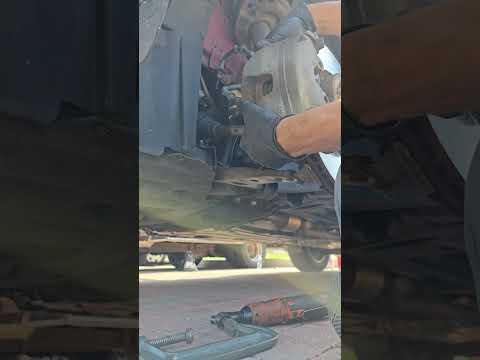

Step 5: Remove and support the caliper

• Insert the flathead screwdriver between the old outer pad and the rotor and gently pry to create a little space; this makes the caliper easier to remove.
• Slide the caliper off the rotor and pads carefully.
• Use a bungee cord or wire hanger to hang the caliper from the suspension spring so it is not hanging by the rubber brake hose.

Step 6: Remove old brake pads and hardware

• Slide the old inner and outer pads out of the caliper bracket and set them aside.
• Remove the metal pad clips (hardware) from the caliper bracket using your fingers or the flathead screwdriver.
• Note how the clips are oriented so you can install the new ones the same way.

Step 7: Clean the caliper bracket and rotor surface

• Use the wire brush to scrub the areas of the caliper bracket where the clips sit until rust and debris are removed.
• Spray brake cleaner on the bracket and rotor friction surface and wipe with shop towels to remove dust and residue.
• A clean surface prevents pad sticking and noise.

Step 8: Install new pad hardware

• Press the new metal pad clips from the hardware kit into the cleaned caliper bracket using your fingers.
• Make sure each clip snaps fully into place and sits flat and secure.

Step 9: Lubricate contact points and slide pins

• Apply a thin film of high-temperature brake grease to the areas of the pad clips where the pads will slide. Do not get grease on pad friction material or rotor.
• Pull out the caliper slide pins one at a time from the bracket (note their position), wipe them with a shop towel, and apply a thin, even coat of brake grease.
• Reinstall the pins into the bracket and make sure they slide smoothly in and out.

Step 10: Compress the caliper piston

• Place an old brake pad against the caliper piston face.
• Position the C-clamp so one side is on the back of the caliper body and the other side presses on the old pad.
• Slowly tighten the C-clamp to push the piston back into the caliper until it is fully seated and flush. Watch the brake fluid reservoir to make sure it does not overflow.
• Go slow to avoid damaging the piston seal.

Step 11: Install new brake pads

• Check your new pads: one will usually have a spring clip or “wear tab” that goes on the inner side of the rotor.
• Slide the new inner pad into the inner side of the caliper bracket, making sure the ears fit into the hardware clips.
• Slide the new outer pad into the outer side of the bracket the same way.
• Make sure the pads are seated flat and can move slightly on the clips.

Step 12: Reinstall the caliper over new pads

• Remove the bungee cord and carefully lower the caliper over the new pads and rotor, lining up the holes with the slide pins.
• Start both guide pin bolts by hand to avoid cross-threading.
• Use the 7mm hex socket and 3/8" ratchet to snug them down.
• Then torque the guide pin bolts to 35 Nm (26 ft-lbs) using the torque wrench.

Step 13: (If removing caliper bracket for rotor replacement)

• If you are replacing rotors, remove the two caliper bracket bolts on the back using the 18mm socket and breaker bar.
• Take off the bracket and slide the old rotor off the hub. If it’s stuck, gently tap the rotor hat with a rubber mallet.
• Clean the hub face with the wire brush and a little brake cleaner, then install the new rotor.
• Reinstall the caliper bracket and torque the bracket bolts to 115 Nm (85 ft-lbs) with the torque wrench and 18mm socket.

Step 14: Repeat on the other side

• Repeat Steps 4–13 for the other front wheel.
• Always replace brake pads in pairs (both fronts).

Step 15: Reinstall wheels

• Place each wheel back on its hub and hand-thread all lug nuts.
• Use the 19mm socket and ratchet to snug the lug nuts in a star pattern while the vehicle is still on stands.

Step 16: Lower the Escape and torque lug nuts

• Use the floor jack to carefully raise the vehicle slightly, remove the jack stands, and lower the vehicle fully to the ground.
• Using the torque wrench and 19mm socket, torque the lug nuts in a star pattern to 135 Nm (100 ft-lbs).

---

✅ After Repair

• 🧪 Before driving, slowly press the brake pedal several times until it feels firm. This seats the pads against the rotors.
• 🧪 Check the brake fluid level in the reservoir and adjust to the “MAX” line if needed.
• 🧪 Inspect around the calipers and hoses for any signs of fluid leaks or parts rubbing.
• 🧪 Perform a short, low-speed test drive in a safe area. Listen for grinding or abnormal noises and verify the Escape stops straight.
• 🧪 Bed-in new pads: make 5–10 gentle stops from 25–30 mph to 5–10 mph, allowing some time between stops for cooling. Avoid hard panic stops for the first 150–200 miles if possible.

---

💰 DIY vs Shop Cost

Shop Cost: $280–$450 (parts + labor)

DIY Cost: $80–$180 (parts only)

You Save: $200–$270 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
