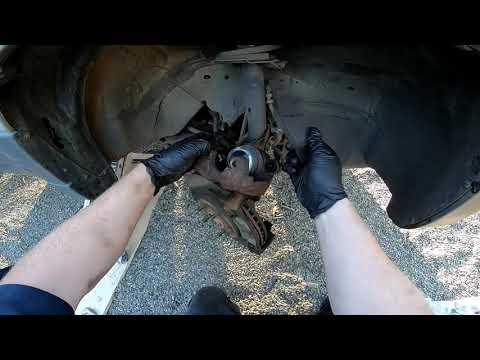

🔧 Escape - Front Brake Pad Replacement

Replacing the front brake pads on your Escape means removing the front wheels, lifting the calipers, swapping the pads, and safely seating everything back together. This repair restores stopping power and helps prevent rotor damage from worn pads.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only. Never rely on a jack alone.
• ⚠️ Use jack stands before putting any part of your body near the wheel area.
• ⚠️ Front brakes may be hot after driving. Let them cool before starting.
• ⚠️ Brake dust can be harmful. Do not blow it with compressed air.
• ⚠️ Keep brake grease and dirty hands off the pad friction material and rotor face.
• ⚠️ Battery disconnect is not required for front brake pad replacement on your Escape.
• ⚠️ The electronic parking brake affects the rear brakes, not the front pads for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 19mm lug nut socket
• 13mm socket
• 15mm wrench
• 3/8-inch ratchet
• 3/8-inch torque wrench
• 1/2-inch torque wrench
• Flat blade screwdriver
• Disc brake caliper piston compressor tool (specialty)
• Brake caliper hanger hook (specialty)
• Brake parts cleaning brush
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake caliper slide pin grease - Qty: 1
• Brake cleaner spray - Qty: 1

---

📋 Before You Begin

• ✅ Park your Escape on level ground and shift the transmission to Park.
• ✅ Set the parking brake while loosening the front lug nuts, then release it before lifting if needed for vehicle movement checks.
• ✅ Place wheel chocks behind the rear wheels. Wheel chocks are wedges that stop the vehicle from rolling.
• ✅ Open the hood and check the brake fluid reservoir. If it is completely full, remove a small amount before compressing the caliper pistons.
• ✅ Do not press the brake pedal while the caliper is removed.
• ✅ Replace pads on both front wheels as a set. Never replace only one side.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use the 19mm lug nut socket and 1/2-inch torque wrench or ratchet to loosen each front lug nut about half a turn.
• Do this while the tires are still touching the ground so the wheels do not spin.
• Tip: Do not remove them yet.

Step 2: Lift and Support the Front of the Vehicle

• Use the floor jack at the correct front jacking point to raise the front of your Escape.
• Place jack stands under the approved front support points.
• Slowly lower the vehicle onto the jack stands and gently shake the vehicle to confirm it is stable.
• Keep the floor jack lightly touching as a backup, but do not rely on it alone.

Step 3: Remove the Front Wheels

• Use the 19mm lug nut socket to remove the loosened lug nuts.
• Remove both front wheels and place them flat under the vehicle as an extra safety backup.

Step 4: Inspect the Brake Assembly

• Put on safety glasses and nitrile gloves.
• Look at the brake rotor surface. The rotor is the round metal disc the pads squeeze.
• If the rotor has deep grooves, heavy rust, cracking, or vibration symptoms, it should be resurfaced or replaced.
• Check that the brake hose is not cracked, twisted, or leaking.

Step 5: Remove the Lower Caliper Guide Pin Bolt

• Use the 15mm wrench to hold the caliper guide pin if it spins.
• Use the 13mm socket and 3/8-inch ratchet to remove the lower caliper guide pin bolt.
• The guide pin is the small sliding pin that lets the caliper move in and out as the pads wear.

Step 6: Swing the Caliper Up

• Use the flat blade screwdriver gently between the caliper and outer pad to create a small amount of clearance.
• Swing the caliper upward away from the pads.
• Use the brake caliper hanger hook to support the caliper from the suspension spring or strut area.
• Do not let the caliper hang by the rubber brake hose.

Step 7: Remove the Old Brake Pads and Hardware

• Use your hands or the flat blade screwdriver to slide the inner and outer brake pads out of the caliper bracket.
• Use the flat blade screwdriver to remove the old stainless pad clips from the caliper bracket.
• The pad clips are thin metal pieces that help the pads slide smoothly.

Step 8: Clean the Caliper Bracket

• Use the brake parts cleaning brush to clean the pad contact areas on the caliper bracket.
• Spray the bracket area with brake cleaner spray.
• Let the cleaner evaporate fully before installing new parts.
• Tip: Clean sliding surfaces prevent brake noise.

Step 9: Install the New Brake Pad Hardware

• Use your hands to snap the new front brake pad hardware kit clips into the caliper bracket.
• Make sure each clip sits fully flat and secure.
• Apply a thin film of brake caliper slide pin grease only where the brake pad ears touch the clips.
• Do not put grease on the rotor or pad friction surface.

Step 10: Compress the Caliper Piston

• Use the disc brake caliper piston compressor tool to slowly push the caliper piston fully back into the caliper.
• The piston is the round metal piece inside the caliper that pushes the brake pad.
• Go slowly and watch the brake fluid reservoir under the hood so it does not overflow.
• If fluid rises too high, remove a small amount with a clean suitable suction tool.

Step 11: Install the New Front Brake Pads

• Use your hands to slide the new inner and outer front brake pads into the caliper bracket.
• Make sure the friction material faces the rotor.
• The pads should slide in smoothly without forcing them.

Step 12: Lower the Caliper and Install the Guide Pin Bolt

• Remove the brake caliper hanger hook and carefully lower the caliper over the new pads.
• Use the 13mm socket to install the lower caliper guide pin bolt by hand first.
• Hold the guide pin with the 15mm wrench if it spins.
• Use the 3/8-inch torque wrench and 13mm socket to tighten the guide pin bolt to Torque to 35 Nm (26 ft-lbs).

Step 13: Repeat on the Other Front Side

• Repeat Steps 4 through 12 on the other front wheel using the same tools.
• Always complete both front sides before driving.

Step 14: Reinstall the Front Wheels

• Place each wheel back onto the hub by hand.
• Use the 19mm lug nut socket to install the lug nuts finger-tight.
• Tighten them in a star pattern so the wheel seats evenly.

Step 15: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to raise the vehicle slightly off the jack stands.
• Remove the jack stands.
• Lower your Escape until the tires touch the ground.
• Use the 1/2-inch torque wrench and 19mm lug nut socket to tighten the lug nuts in a star pattern to Torque to 135 Nm (100 ft-lbs).
• Fully lower the vehicle and remove the floor jack.

Step 16: Pump the Brake Pedal

• Before starting the engine, press the brake pedal slowly 5-10 times until it feels firm.
• This moves the caliper pistons back out against the new pads.
• Do not skip this step. The first pedal press may go low after pad replacement.

---

✅ After Repair

• ✅ Check the brake fluid level and adjust it to the proper range if needed.
• ✅ Start the engine and press the brake pedal again. It should feel firm, not spongy.
• ✅ Test brakes at very low speed in a safe area before normal driving.
• ✅ Bed in the new pads if the pad manufacturer recommends it. Bedding means making a series of controlled stops to transfer pad material evenly to the rotor.
• ✅ Avoid hard braking for the first 100-200 miles unless it is an emergency.
• ✅ Recheck lug nut torque after the first short drive using the 1/2-inch torque wrench and 19mm lug nut socket: Torque to 135 Nm (100 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $205-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
