🔧 Rogue - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers out of the way, replace the pads (and hardware), then reassemble and bed the pads in. Worn pads can reduce stopping power and damage the rotors if you wait too long.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the Rogue with jack stands before going under or pulling wheels.
• ⚠️ Do not press the brake pedal while a caliper is off the rotor.
• ⚠️ Brakes may be hot; let them cool before starting.
• ⚠️ Avoid breathing brake dust; use brake cleaner, not compressed air.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" breaker bar
• 1/2" torque wrench (20-150 ft-lbs range)
• 14mm socket
• 19mm socket
• 3/8" ratchet
• 6" extension (3/8")
• Flathead screwdriver
• C-clamp (6")
• Bungee cord
• Wire brush
• Brake parts cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone brake lubricant) - Qty: 1
• Brake cleaner - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, turn the engine off, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Crack the front lug nuts loose using a 21mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; be ready to remove a little fluid if it starts to overflow when you compress the pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Your Rogue has standard (non-electronic) front brake calipers; torque values are typical for this platform.

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front of the Rogue at the front center jack point.
• Set it down onto jack stands (rated 3-ton minimum) under the approved front support points.
• Give the vehicle a firm shake to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts with a 21mm socket and 3/8" ratchet (or breaker bar if needed).
• Remove both front wheels and place them under the rocker area as an extra safety backup.

Step 3: Locate the caliper bolts and inspect everything

• Turn the steering wheel to give yourself more space at the side you’re working on.
• Look at the caliper and rotor. Check rotor surface for deep grooves and heavy rust lips.
• If rotors are badly grooved, replace them.

Step 4: Remove the caliper (do not let it hang)

• Use a 14mm socket and 3/8" ratchet to remove the two caliper slide-pin bolts.
• Carefully lift the caliper off the rotor. If it’s tight, gently pry with a flathead screwdriver.
• Support the caliper with a bungee cord to the strut spring. Never hang it by the brake hose.

Step 5: Remove the old pads and hardware clips

• Slide the old pads out of the caliper bracket by hand.
• Remove the stainless pad “abutment clips” from the bracket (use a flathead screwdriver if needed).
• Clean the pad lands (the flat areas where the clips sit) using brake parts cleaner spray, shop towels, and a wire brush.

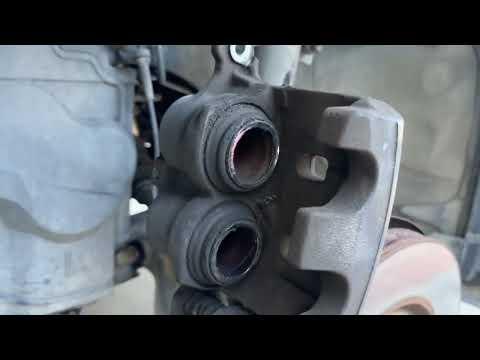

Step 6: Compress the caliper piston

• Place one old brake pad against the piston face.
• Use a C-clamp (6") to slowly press the piston fully back into the caliper. (A C-clamp is a screw clamp that presses the piston in evenly.)
• Watch the brake fluid reservoir while compressing; if it nears the top, remove a small amount with shop towels (do not spill on paint).

Step 7: Install new hardware clips and grease contact points

• Install the new abutment clips from the front brake pad hardware kit into the bracket.
• Apply a very thin film of brake caliper grease on the clip surfaces where the pads slide (not on the pad friction material).
• Thin layer only—too much attracts dirt.

Step 8: Install the new pads

• Install the new inner and outer pads into the bracket.
• If a pad has a wear indicator, install it in the same position as the original (commonly inner pad).
• Make sure pads move freely in the clips (they should slide with hand pressure).

Step 9: Reinstall the caliper and torque the bolts

• Lower the caliper over the new pads.
• Install the caliper slide-pin bolts by hand first to avoid cross-threading.
• Tighten with a 14mm socket and torque wrench: Torque to 34 Nm (25 ft-lbs).

Step 10: (If removed) Reinstall the caliper bracket and torque the bolts

• If you removed the caliper bracket, reinstall it using a 19mm socket and torque wrench.
• Torque to 108 Nm (80 ft-lbs).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread lug nuts.
• Lower the Rogue until the tires just touch the ground so they won’t spin.
• Use a 21mm socket and torque wrench to tighten in a star pattern: Torque to 113 Nm (83 ft-lbs).
• Fully lower and remove the jack stands and jack.

---

✅ After Repair

• With the engine off, slowly pump the brake pedal 10-15 times until it feels firm.
• Check brake fluid level; top off with DOT 3 if needed (do not overfill).
• Start the engine and confirm the pedal feels normal.
• Do a low-speed test in a safe area. Confirm smooth stops and no pulling.
• Bed-in (break-in) the pads: make 6-10 moderate stops from 30-40 mph, allowing 30-60 seconds between stops for cooling. Avoid hard stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $190-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
