🔧 GLE - Front Brake Pad Replacement

Replacing the front brake pads restores safe stopping power and prevents rotor damage when pads get thin. On your GLE, this is a straightforward job, but you must support the vehicle safely and reinstall hardware correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: standard (non-AMG) front floating calipers; hardware may vary slightly.

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the SUV with jack stands before going under/near the wheel well.
• ⚠️ Do not press the brake pedal while a caliper is off the rotor.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ Watch brake fluid level while compressing the piston; overflow can damage paint.
• ⚠️ Keep grease off pad friction material and rotor faces.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30–200 ft-lbs range)
• 7mm hex bit socket
• 9mm hex bit socket
• E18 external Torx socket
• Ratchet (3/8" or 1/2")
• Flat-blade screwdriver
• Small pick tool
• C-clamp or brake caliper piston compressor (specialty)
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad wear sensor - Qty: 1
• Brake lubricant (silicone or ceramic brake grease) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the engine off, and remove the key.
• Chock the rear wheels using wheel chocks.
• Loosen the front wheel bolts 1/2 turn using a 17mm socket and breaker bar before lifting.
• Open the hood and check the brake fluid reservoir level; if it’s near MAX, remove a little with a suction tool (do not spill). Compressed pistons raise fluid level.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front

• Lift one front corner using a floor jack (rated 3-ton minimum) at the proper jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum).
• Remove the wheel bolts with a 17mm socket and remove the wheel.

Step 2: Remove the pad wear sensor

• Locate the wear sensor clipped into the pad (usually on one front wheel only).
• Use a small pick tool to gently pry the sensor out of the pad, then disconnect it from the harness.
• Pull the connector—never yank the wire.

Step 3: Remove the caliper spring clip (if equipped)

• Use a flat-blade screwdriver to carefully pry the outer anti-rattle spring clip off the front of the caliper.
• Keep your hand on it as you release it so it doesn’t fly.

Step 4: Remove caliper guide pin bolts

• On the back of the caliper, remove the two guide pin bolts using a 7mm hex bit socket (some variants use a 9mm hex bit socket).
• Support the caliper so it doesn’t drop when the second bolt comes out.

Step 5: Hang the caliper safely

• Lift the caliper off the rotor and hang it from the suspension spring using a bungee cord.
• Do not let the caliper hang by the brake hose.

Step 6: Remove old pads and inspect

• Slide the inner and outer pads out of the bracket by hand.
• Inspect the rotor surface and thickness. If heavily grooved, cracked, or deeply rust-lipped, plan to replace rotors too.
• Clean pad contact points on the bracket with a wire brush and brake cleaner spray.

Step 7: Compress the caliper piston

• Use a C-clamp or brake caliper piston compressor (specialty) to press the piston back slowly.
• A piston compressor is a tool that pushes the piston in evenly so the new thicker pads fit.
• Watch the brake fluid reservoir as you compress; stop if it’s about to overflow.

Step 8: Install new pads (and grease correctly)

• Apply a thin film of brake lubricant (silicone or ceramic brake grease) to pad ears/edges where they slide in the bracket.
• Do not grease the pad friction surface or the rotor.
• Install the new inner and outer pads into the bracket.

Step 9: Reinstall caliper and torque fasteners

• Set the caliper back over the new pads.
• Install the guide pin bolts by hand first, then tighten using the 7mm hex bit socket or 9mm hex bit socket and a torque wrench.
• Torque to 35 Nm (26 ft-lbs) for caliper guide pin bolts.
• If you removed the caliper carrier/bracket (not always required), reinstall using an E18 external Torx socket and torque wrench: Torque to 200 Nm (148 ft-lbs).

Step 10: Reinstall the spring clip and wear sensor

• Reinstall the anti-rattle spring clip using a flat-blade screwdriver.
• Plug in the new wear sensor and clip it into the pad until fully seated.
• Route the wire exactly like the original so it can’t rub the wheel.

Step 11: Reinstall wheel and torque wheel bolts

• Reinstall the wheel and hand-thread the wheel bolts.
• Lower the SUV off the jack stands using the floor jack (rated 3-ton minimum).
• Tighten wheel bolts in a star pattern using a torque wrench: Torque to 150 Nm (111 ft-lbs).

Step 12: Repeat on the other front wheel

• Repeat the same process for the other side.
• Replace pads on both sides together.

---

✅ After Repair

• With the engine off, pump the brake pedal slowly 8–12 times until it feels firm. This seats the pads against the rotors.
• Check brake fluid level and top off only if needed.
• Start the engine and confirm normal pedal feel, then do a slow test stop in a safe area.
• Pad bedding-in: make 6–10 moderate stops from ~30–40 mph with cooling time between. Avoid hard stops for the first 150–200 miles.

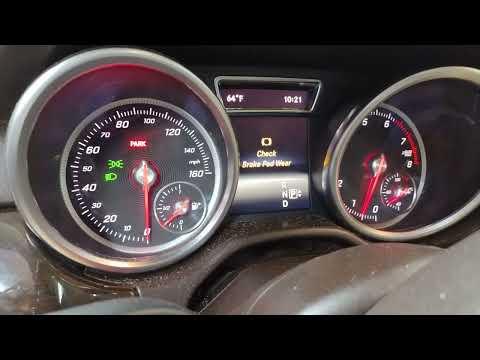

• If the brake pad warning stays on, recheck the wear sensor connection and routing.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
