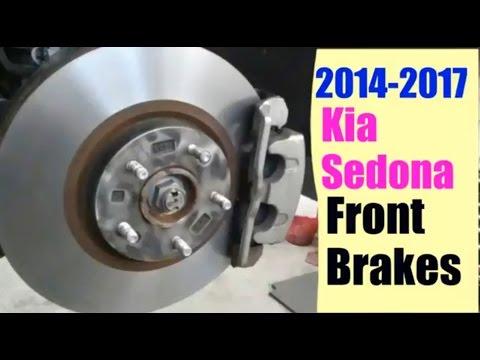

🔧 Sedona - Front Brake Pad Replacement

You’ll be removing the front wheels, swinging the front brake calipers up, and swapping the old pads for new ones. Then you’ll compress the caliper pistons so everything fits back together and the brakes apply smoothly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: standard front single-piston sliding calipers.

---

⚠️ Safety & Precautions

• 🛑 Support the Sedona with jack stands on solid, level ground—never rely on a jack alone.
• 🛑 Brake dust is irritating—wear eye protection and avoid blowing dust with compressed air.
• 🛑 Brakes may be hot—let the front brakes cool before starting.
• 🛑 Watch brake fluid level while compressing pistons—overflow can damage paint.
• 🛑 No battery disconnect is required for front pads on the Sedona.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" breaker bar
• 1/2" torque wrench (20-150 ft-lbs range)
• 14mm socket
• 17mm socket
• 3/8" ratchet
• Flat-blade screwdriver
• C-clamp (6" minimum)
• Brake caliper hanger hook (specialty)
• Wire brush
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone-based) - Qty: 1
• Brake cleaner - Qty: 1
• Brake fluid (DOT 3 or DOT 4) - Qty: 1 quart

---

📋 Before You Begin

• 🧱 Park on level ground, put the shifter in P, and set the parking brake.
• 🧱 Place wheel chocks behind the rear tires.
• 🧱 Open the hood and locate the brake fluid reservoir. Loosen the cap (leave it sitting on top).
• 🧱 If the reservoir is very full, remove a little fluid with shop towels to prevent overflow while compressing pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and raise the front

• Use a 21mm socket with a 1/2" breaker bar to loosen the front wheel lug nuts about 1/2 turn (do not remove yet).
• Use a floor jack (rated 3-ton minimum) to lift the front of the Sedona at the proper front jacking point.
• Set it down securely on jack stands (rated 3-ton minimum).

Step 2: Remove the front wheels

• Remove the lug nuts with the 21mm socket and take both front wheels off.
• Slide the wheels under the van as a backup safety support.

Step 3: Inspect and access the caliper

• Turn the steering (by hand at the tire/hub area) so the caliper is easier to reach.
• Look at the caliper and locate the two caliper slide-pin bolts (typically 14mm heads).

Step 4: Remove the caliper slide-pin bolts

• Use a 14mm socket with a 3/8" ratchet to remove the upper and lower caliper slide-pin bolts.
• Carefully lift the caliper off the pads.
• Hang the caliper using a brake caliper hanger hook (specialty) so it does not pull on the rubber brake hose.

Step 5: Remove old pads and hardware

• Pull the old inner and outer pads out of the bracket by hand.
• If equipped with pad clips (abutment clips), remove them using a flat-blade screwdriver.
• Clean the bracket pad-contact areas using brake cleaner and a wire brush.
• Clean metal contact points prevent pad sticking.

Step 6: Compress the caliper piston

• Place one old pad against the piston face.
• Use a C-clamp (6" minimum) to slowly press the piston back into the caliper.
• Go slowly and watch the brake fluid reservoir for rising fluid.
• Slow compression helps avoid seal damage.

Step 7: Install new pad hardware and grease (correct locations only)

• Install the new abutment clips from the front brake pad hardware kit into the bracket (press in by hand; use a flat-blade screwdriver gently if needed).
• Apply a thin film of brake caliper grease (silicone-based) to the clip “rails” where the pad ears slide.
• Do not get grease on pad friction material or rotor surfaces.

Step 8: Install the new pads

• Install the new inner and outer pads into the bracket by hand.
• If one pad has a wear indicator tab, install it in the same position as the original.

Step 9: Reinstall the caliper and torque fasteners

• Lower the caliper back over the new pads.
• Install the slide-pin bolts by hand first to avoid cross-threading.
• Use a 14mm socket and 3/8" ratchet to snug them.
• Final tighten using a 1/2" torque wrench (20-150 ft-lbs range): Torque to 25-35 Nm (18-26 ft-lbs) for the caliper slide-pin bolts.

Step 10: If you removed the caliper bracket (only if needed)

• If pads won’t fit or you’re also replacing rotors, you may have removed the caliper bracket bolts (typically 17mm heads).
• Reinstall bracket bolts using a 17mm socket and 1/2" torque wrench (20-150 ft-lbs range): Torque to 100-120 Nm (74-89 ft-lbs).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the Sedona off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a 1/2" torque wrench: Torque to 110-130 Nm (81-96 ft-lbs).

Step 12: Restore pedal feel (critical)

• With the engine OFF, pump the brake pedal slowly 10-15 times until it feels firm.
• Check brake fluid level and top off with DOT 3 or DOT 4 if needed.
• Tighten the reservoir cap by hand.

---

✅ After Repair

• 🧪 Start the engine and confirm the brake pedal remains firm.
• 🧪 Check for any brake fluid leaks around the calipers and hoses.
• 🧪 Do a cautious test drive: low speed first, then normal stops.
• 🧪 Pad bed-in (break-in): make 6-10 moderate stops from ~30 mph to ~5 mph, allowing short cool-down between stops. Avoid hard panic stops for the first 150-200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $50-$150 (parts only)

You Save: $200-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
