🔧 QX50 - Front Brake Pad Replacement

Replacing the front brake pads restores safe stopping power and prevents metal-to-metal rotor damage when pads get thin. You’ll remove the front calipers, swap the pads (and hardware), then reassemble with the correct torque and a proper pedal pump-up.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: OEM-style single-piston front calipers; torque specs are QX50-typical.

---

⚠️ Safety & Precautions

• 🧯 Work on level ground; support with jack stands (never jack only).
• 🧤 Brake dust is harmful—avoid blowing dust; use brake cleaner and a catch pan.
• 🔥 Brakes get extremely hot—let the front brakes cool fully before starting.
• 🧷 Do not let the caliper hang by the brake hose; support it with a hanger.
• 🧪 Brake fluid damages paint—wipe spills immediately; keep the reservoir from overflowing.
• 🔌 Battery disconnect is not required for front pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench (21mm)
• Torque wrench (10–200 Nm range)
• Socket set (10mm–22mm)
• Ratchet (3/8" drive)
• Breaker bar (1/2" drive)
• Open-end wrench set (14mm–19mm)
• C-clamp (6")
• Brake caliper hanger hook (specialty)
• Flathead screwdriver
• Wire brush
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake hardware kit (clips/shims) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• 🅿️ Park on level ground, steering straight, and chock the rear wheels.
• 🛞 Loosen the front lug nuts 1/2 turn using a 21mm lug wrench before lifting.
• 🧴 Open the hood and locate the brake fluid reservoir; keep the cap loosely set on top (do not remove and leave it open to dirt).
• 🧰 If your reservoir is very full, siphon a little with a clean towel (pads retracting can raise fluid).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Place jack stands (rated 3-ton minimum) under the front support points and lower the vehicle onto them.
• Shake the vehicle slightly to confirm it’s stable before going under the wheel area.

Step 2: Remove the front wheels

• Remove the lug nuts using a 21mm lug wrench and take off both front wheels.
• Set wheels under the side of the vehicle as an extra safety backup.

Step 3: Locate the caliper bolts and remove the caliper

• Turn the steering to give better access (left for right wheel, right for left wheel).
• Remove the caliper slide-pin bolts using a ratchet (3/8" drive) with a 14mm socket (common size on this platform).
• Lift the caliper off the bracket and immediately support it using a brake caliper hanger hook (specialty).
• Tip: Hook caliper to the spring/strut.

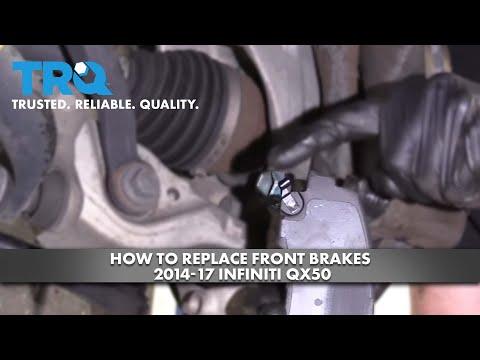

Step 4: Remove the old pads and hardware

• Slide the old pads out of the bracket by hand; use a flathead screwdriver gently if they’re stuck.
• Remove the pad clips/hardware from the bracket using a flathead screwdriver.
• Clean the bracket pad “rails” with a wire brush and brake cleaner spray.

Step 5: Compress the caliper piston

• Place an old pad against the piston face.
• Use a C-clamp (6") to slowly push the piston fully back into the caliper.
• Check the brake fluid reservoir as you compress; wipe any spills with shop towels.
• Tip: Go slow to avoid fluid overflow.

Step 6: Service the slide pins (recommended)

• Pull each slide pin out of the bracket by hand; wipe clean with shop towels.
• Apply a thin coat of brake caliper grease (silicone) to the smooth pin surface only.
• Reinsert pins and confirm they move smoothly with fingertip pressure.

Step 7: Install new hardware clips and pads

• Install the new clips from the front brake hardware kit (clips/shims) into the bracket by hand.
• Add a very thin film of brake caliper grease (silicone) where the pad ears touch the clips (metal-to-metal contact points only).
• Slide the new inner and outer pads into place.
• Tip: Keep grease off pad friction material.

Step 8: Reinstall the caliper and torque fasteners

• Position the caliper over the new pads.
• Install the caliper slide-pin bolts using a ratchet (3/8" drive) with a 14mm socket.
• Torque to 34 Nm (25 ft-lbs) for the caliper slide-pin bolts.
• If you removed the caliper bracket (only if needed), install bracket bolts using a breaker bar (1/2" drive) with a 22mm socket and Torque to 107 Nm (79 ft-lbs).

Step 9: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the vehicle using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern with a torque wrench (10–200 Nm range).
• Torque to 108 Nm (80 ft-lbs) for the lug nuts.

---

✅ After Repair

• 🦶 With the engine OFF, pump the brake pedal 10–15 times until it feels firm (this seats the pistons).
• 🧪 Check brake fluid level and top off with DOT 3 only if needed.
• 🚗 Do a low-speed test in a safe area: confirm normal braking and no pulling/noises.
• 🛑 Pad break-in: make 6–10 gentle stops from 30–40 mph, letting brakes cool between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $50-$150 (parts only)

You Save: $200-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
