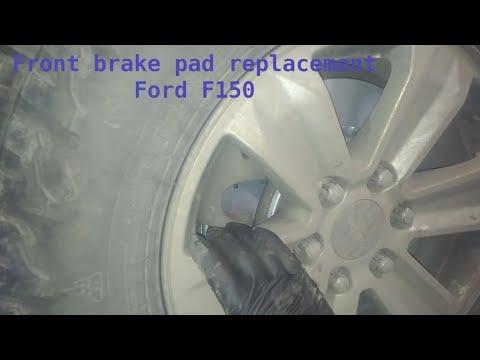

🔧 F-150 - Front Brake Pad Replacement

You’ll be removing the front calipers, swapping the old pads for new ones, and compressing the caliper pistons so everything fits back together. Fresh pads restore safe stopping power and prevent grinding damage to the rotors.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: Stock front brakes (no aftermarket calipers/rotors).

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and support your A4 with jack stands (never the jack alone).
• 🔥 Brakes get extremely hot—let everything cool before touching.
• 🧪 Don’t inhale brake dust; use brake cleaner, not compressed air.
• 🧷 Do not let the caliper hang by the brake hose—support it with a hanger.
• 🧴 Brake fluid can damage paint—wipe spills immediately.
• 🔋 Battery disconnect is not required for this front brake pad job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-250 ft-lbs)
• 13mm socket
• 18mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs)
• C-clamp (6" minimum)
• Brake caliper hanger hook (specialty)
• Flathead screwdriver
• Wire brush
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on a flat surface, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front wheel lug nuts 1 turn before lifting using a 21mm socket and breaker bar.
• Open the hood and locate the brake fluid reservoir; keep the cap set on loosely so pressure can vent while you compress pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front and remove the wheels

• Lift the front with a floor jack (rated 3-ton minimum) at the proper front jacking point, then support with jack stands (rated 3-ton minimum).
• Remove lug nuts using a 21mm socket and 1/2" drive breaker bar, then remove both front wheels.

Step 2: Remove the caliper (one side at a time)

• Turn the steering wheel to give yourself working room on the side you’re doing first.
• Remove the two caliper slide pin bolts using a 13mm socket and 3/8" drive ratchet.
• Carefully lift the caliper off the rotor. Support it with a brake caliper hanger hook (specialty) (this is a hook/strap that holds the caliper so the brake hose isn’t strained).

Step 3: Remove old pads and hardware

• Slide the inner and outer pads out of the bracket by hand. Use a flathead screwdriver gently if they’re stuck.
• Remove the stainless pad clips (hardware) from the bracket using a flathead screwdriver.
• Clean the bracket pad “tracks” with a wire brush and spray with brake cleaner spray. Wipe with shop towels.
• Tip: Clean tracks = quieter brakes.

Step 4: Remove the caliper bracket (if needed for hardware/rotor clearance)

• If your pad hardware won’t install easily with the bracket in place, remove the bracket bolts using an 18mm socket and 1/2" drive breaker bar.
• Reinstall bracket and tighten: Torque to 250 Nm (184 ft-lbs) using a 1/2" drive torque wrench (20-250 ft-lbs).

Step 5: Install new pad hardware and grease contact points

• Install the new clips from the hardware kit into the bracket by hand until fully seated.
• Apply a thin film of brake caliper grease (silicone) where the pad “ears” touch the clips (metal-to-metal contact points).
• Do not get grease on pad friction material or the rotor.

Step 6: Compress the caliper piston

• Place the old inner pad against the piston face, then use a C-clamp (6" minimum) to slowly press the piston back into the caliper (a C-clamp is a screw clamp that pushes the piston in evenly).
• Watch the brake fluid reservoir while compressing; if it looks too full, soak up a small amount with shop towels.
• Tip: Go slow to avoid damaging seals.

Step 7: Install new pads

• Install the new inner and outer pads into the bracket by hand.
• Confirm the pads slide freely in the clips (no binding).

Step 8: Reinstall the caliper

• Set the caliper back over the new pads.
• Install the slide pin bolts using a 13mm socket and 3/8" drive ratchet.
• Tighten slide pin bolts: Torque to 32 Nm (24 ft-lbs) using a 3/8" drive torque wrench (10-100 ft-lbs).

Step 9: Repeat on the other front wheel

• Repeat Steps 2–8 on the opposite side.
• Tip: Always replace pads in pairs.

Step 10: Reinstall wheels and lower the truck

• Reinstall wheels and hand-thread lug nuts.
• Lower the truck to the ground using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern: Torque to 203 Nm (150 ft-lbs) using a 1/2" drive torque wrench (20-250 ft-lbs) and 21mm socket.

---

✅ After Repair

• With the engine off, pump the brake pedal 8–12 times until it feels firm (this seats the pistons against the new pads).
• Check brake fluid level and top off with DOT 3 if needed.
• Start the truck and do a slow test stop in a safe area. Listen for grinding or pulling.
• Bed-in the pads: make 6–10 moderate stops from 30–40 mph, allowing 30–60 seconds between stops for cooling.
• Re-check for leaks and re-check lug nut torque after 50–100 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
