🔧 Suburban - Front Brake Pad Replacement

Replacing the front brake pads on your Suburban involves removing the front wheels, swinging the front brake calipers out of the way, swapping pads/hardware, and compressing the caliper pistons so the new thicker pads fit. Doing it carefully prevents brake noise, uneven wear, and soft pedal feel.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the SUV with jack stands on the frame—never rely on a floor jack alone.
• ⚠️ Chock the rear wheels with wheel chocks and keep the transmission in Park.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ Do not press the brake pedal with a caliper removed.
• ⚠️ Watch the brake fluid level—pushing pistons back can overflow the reservoir.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 22mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-200 ft-lbs range)
• 13mm socket
• 18mm socket
• Ratchet (3/8" drive)
• Wire brush
• C-clamp (6" minimum)
• Bungee cord
• Flathead screwdriver
• Brake parts cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Crack the front lug nuts loose 1/2 turn using a 22mm socket and breaker bar before lifting.
• Open the hood and check the brake fluid reservoir level; leave the cap sitting loosely on top. Helps prevent overflow pressure.
• Plan to do both front sides in the same session (pads should be replaced in pairs).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front using a floor jack (rated 3-ton minimum) at the front jacking point.
• Set the SUV onto jack stands (rated 3-ton minimum) placed securely on the frame.
• Give the SUV a gentle push to confirm it’s stable before you work.

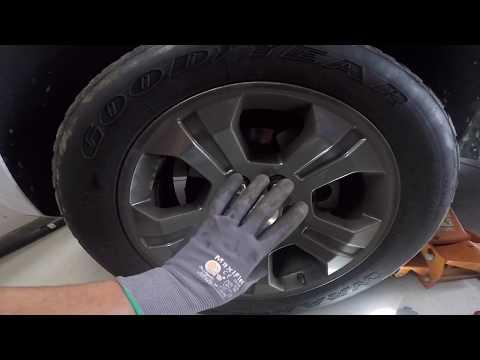

Step 2: Remove the front wheels

• Remove the lug nuts using a 22mm socket and ratchet (3/8" drive) or breaker bar.
• Remove both front wheels and set them aside.

Step 3: Locate the caliper bolts (guide pins)

• Turn the steering knuckle for access (point the tire area outward).
• Find the two caliper guide pin bolts on the back side of the caliper.
• Guide pins are the sliding bolts that let the caliper move as pads wear.

Step 4: Remove the caliper from the bracket

• Remove the two guide pin bolts using a 13mm socket and ratchet (3/8" drive).
• Carefully lift the caliper off the pads/rotor.
• Hang the caliper from the suspension with a bungee cord. Do not let it hang by the brake hose.

Step 5: Remove the old pads and hardware clips

• Slide the inner and outer pads out of the bracket by hand. Use a flathead screwdriver gently if stuck.
• Remove the stainless hardware clips (abutment clips) from the bracket.
• Clean the pad contact areas on the bracket using brake parts cleaner spray and a wire brush.

Step 6: Compress the caliper pistons

• Place one old pad against the pistons, then compress slowly using a C-clamp (6" minimum).
• Go slowly and watch the brake fluid reservoir under the hood for rising level.
• If it starts to overflow, remove some fluid before continuing. Slow pressure prevents seal damage.

Step 7: Install new hardware clips and grease contact points

• Snap the new hardware clips into the caliper bracket by hand.
• Apply a thin film of brake caliper grease (silicone) where the pad “ears” slide on the clips.
• Do not get grease on the pad friction material or rotor.

Step 8: Install the new pads

• Install the inner and outer pads into the bracket by hand.
• Make sure they slide freely (no binding). If tight, re-clean the bracket lands with brake parts cleaner spray and wire brush.

Step 9: Reinstall the caliper and torque the bolts

• Set the caliper back over the new pads and align the guide pin holes.
• Install and tighten the guide pin bolts using a 13mm socket.
• Torque to 42 Nm (31 ft-lbs) using a 1/2" drive torque wrench (30-200 ft-lbs range).

Step 10: Repeat on the other front side

• Perform the same pad/hardware replacement on the other front wheel.
• Keep parts separated left/right to avoid mixing hardware.

Step 11: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts first.
• Lower the SUV off the stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern with a 22mm socket.
• Torque to 190 Nm (140 ft-lbs) using a 1/2" drive torque wrench (30-200 ft-lbs range).

---

✅ After Repair

• With the engine off, pump the brake pedal slowly 10-15 times until it feels firm. This seats the pistons against the new pads.
• Check the brake fluid level and top off only if needed (use the correct DOT brake fluid listed on the reservoir cap).
• Start the engine and confirm the pedal stays firm.
• Do a cautious test drive at low speed and verify normal stopping.
• Bed-in the pads with 6-10 moderate stops from 30–40 mph, letting brakes cool between stops. Avoid hard stops for 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
