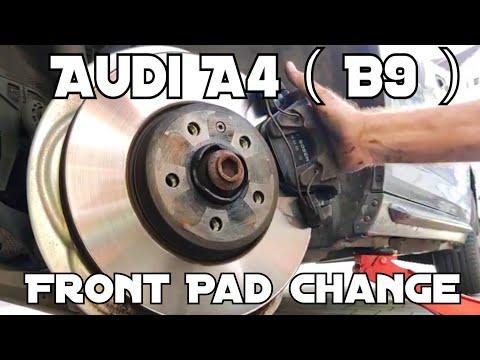

🔧 A4 - Front Brake Pad Replacement

Replacing your A4’s front brake pads means removing the front calipers, swapping the old pads for new ones, and reinstalling everything with the correct torque. This restores safe stopping power and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support the car with jack stands; never rely on a jack alone.
• 🧤 Brake dust is unhealthy—wear a mask and avoid blowing dust with air.
• 🔥 Brakes get hot—let everything cool before touching.
• 🧪 Brake fluid can damage paint—wipe spills immediately.
• 🔩 Never let the caliper hang by the brake hose; support it with a hook.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-200 Nm range)
• 13mm socket
• 15mm open-end wrench
• 21mm socket
• Ratchet (3/8" drive)
• 3/8" drive torque wrench (10-60 Nm range)
• Brake caliper piston compressor tool (specialty)
• Flathead screwdriver
• Pick tool
• Bungee cord
• Wire brush
• Brake cleaner spray
• Small drip tray
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad wear sensor - Qty: 1
• Brake caliper carrier bolts - Qty: 4
• Brake caliper guide pin bolts - Qty: 4
• Brake grease (silicone or high-temp brake lube) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, put the transmission in Park, and chock the rear wheels.
• 🔓 Loosen the front wheel bolts slightly with a 17mm socket and breaker bar before lifting the car.
• 🧪 Open the hood and locate the brake fluid reservoir; do not remove fluid yet, but keep an eye on the level (it can rise when you compress the piston).
• 🧰 Set up your drip tray and have brake cleaner spray ready.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front and remove the wheel

• Use a floor jack to lift the front jack point, then place jack stands securely.
• Remove the wheel bolts using a 17mm socket and ratchet.
• Tip: Slide the wheel under the rocker for backup.

Step 2: Locate the caliper bolts and wear sensor

• Turn the steering wheel to give yourself room (left wheel: turn right; right wheel: turn left).
• Find the brake pad wear sensor wire (if equipped) and unclip it using a pick tool.
• Disconnect the sensor carefully; use a flathead screwdriver only if needed to release the clip.

Step 3: Remove the caliper guide pin bolts

• On the back of the caliper, remove the two guide pin bolts using a 13mm socket.
• Hold the slide pin flats with a 15mm open-end wrench so it doesn’t spin.
• Lift the caliper off the bracket.

Step 4: Support the caliper

• Hang the caliper from the suspension spring using a bungee cord.
• This prevents damage to the brake hose (the rubber line).

Step 5: Remove the old pads and clean contact points

• Pull the inner and outer pads out by hand.
• Remove the stainless pad abutment clips (if present) using a flathead screwdriver.
• Clean the bracket pad “rails” with a wire brush and brake cleaner spray.
• Tip: Clean rails help prevent squeaks.

Step 6: Remove the caliper carrier (bracket) if required

• If your new pads won’t fit easily or you’re replacing hardware, remove the carrier bolts using a 21mm socket and breaker bar.
• Remove the carrier and set it aside.
• Torque to 200 Nm (148 ft-lbs) for the carrier bolts during reassembly.
• Tip: These bolts are tight—use steady force.

Step 7: Compress the caliper piston

• Place the old inner pad against the piston face.
• Use a brake caliper piston compressor tool (specialty) to slowly push the piston fully back into the caliper.
• A piston compressor is a clamp-style tool that pushes the piston in evenly.
• Watch the brake fluid reservoir level under the hood while compressing (do not let it overflow).

Step 8: Install new pad clips (if included) and grease correctly

• Install new stainless pad clips into the carrier (if provided) by hand.
• Apply a thin film of brake grease only on pad ears where they touch the clips/rails.
• Do not get grease on pad friction material or rotor surfaces.

Step 9: Install the new pads

• Install the new inner and outer pads into the carrier by hand.
• Reconnect the new wear sensor to the pad and route the wire in the factory clips.

Step 10: Reinstall the caliper and torque bolts

• Slide the caliper over the new pads.
• Install the guide pin bolts using a 13mm socket, holding the pin with a 15mm open-end wrench.
• Torque to 30 Nm (22 ft-lbs) for the guide pin bolts.

Step 11: Reinstall the wheel and torque wheel bolts

• Reinstall the wheel and hand-thread the bolts.
• Lower the car off the stands using the floor jack.
• Use a torque wrench with a 17mm socket to tighten wheel bolts in a star pattern.
• Torque to 120 Nm (89 ft-lbs).

Step 12: Repeat on the other front wheel

• Repeat Steps 1–11 on the other side.
• Tip: Do one side at a time to compare.

---

✅ After Repair

• 🦶 With the engine off, press the brake pedal 10–15 times until it feels firm (this seats the pistons against the pads).
• 🧪 Check brake fluid level and top up only if needed with the correct DOT brake fluid listed on the reservoir cap.
• 👀 Look for any twisted wear sensor wire and confirm it’s clipped away from the wheel.
• 🚗 Road test at low speed first; confirm normal braking and no warning lights.
• 🛑 Pad bedding: make 8–10 smooth stops from ~40 to 10 mph, allowing a little cooling between stops; avoid hard stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $60-$200 (parts only)

You Save: $240-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
