🔧 Pilot - Front Brake Pad Replacement

Your Pilot’s front brake pads wear down over time and need replacement to keep stopping power strong and to prevent rotor damage. This job involves removing the front wheels, swinging the brake calipers out of the way, swapping pads and hardware, then reassembling with correct torque.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the Pilot with jack stands before getting under it.
• ⚠️ Do not press the brake pedal while a caliper is off the rotor.
• ⚠️ Brake dust is irritating—avoid blowing it with air; use brake cleaner.
• ⚠️ Watch brake fluid level when compressing pistons; remove excess if it nears overflow.
• ⚠️ Keep grease and brake fluid off pad/rotor friction surfaces.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• Breaker bar (1/2" drive)
• Torque wrench (20-150 ft-lbs range)
• Ratchet (3/8" drive)
• 12mm socket
• 17mm socket
• C-clamp (6" minimum) or brake caliper piston tool (specialty)
• Flat-blade screwdriver
• Needle-nose pliers
• Wire hook or bungee cord
• Brake parts cleaner
• Silicone brake grease
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake grease packet - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, shift to Park, and apply the parking brake.
• Chock the rear wheels with wheel chocks.
• Loosen the front lug nuts 1/2 turn with a 19mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; you’ll be watching the level as you push the caliper pistons back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front

• Lift the front with a floor jack (rated 3-ton minimum) at the correct front jacking point.
• Set the Pilot down onto jack stands (rated 3-ton minimum) and confirm it’s stable.

Step 2: Remove the front wheels

• Remove the lug nuts using a 19mm socket and ratchet (3/8" drive).
• Pull both front wheels off and set them aside.
• Do one side at a time for reference.

Step 3: Access the caliper and pads

• Locate the brake caliper (the clamp that squeezes the pads onto the rotor).
• Remove the two caliper slide-pin bolts using a 12mm socket and ratchet (3/8" drive).
• Carefully pivot the caliper upward and support it with a wire hook or bungee cord so it doesn’t hang by the brake hose.

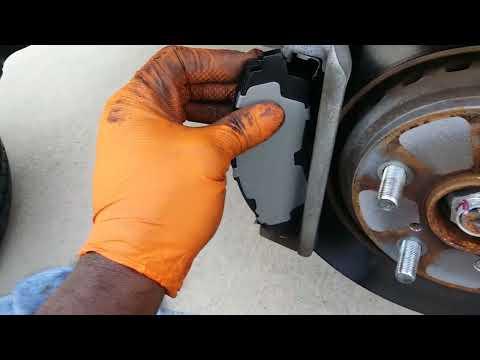

Step 4: Remove old pads and hardware

• Slide the old pads out by hand; use a flat-blade screwdriver gently if they’re stuck.
• Remove the stainless pad clips (abutment clips) from the caliper bracket using a flat-blade screwdriver or needle-nose pliers.
• Spray the bracket pad-contact areas with brake parts cleaner and wipe with shop towels.

Step 5: Retract the caliper piston

• Place an old pad against the piston face, then compress the piston slowly with a C-clamp (6" minimum) or brake caliper piston tool (specialty).
• Go slowly and watch the brake fluid reservoir under the hood so it doesn’t overflow.
• Slow compression helps protect seals.

Step 6: Install new hardware and pads

• Install new abutment clips into the bracket by hand; make sure they fully seat.
• Apply a thin film of silicone brake grease where the pad “ears” slide on the clips (not on pad friction material).
• Install the new pads into the bracket.
• If your pads have a wear indicator (small metal “squealer”), install it in the same position as the old pad set on that side.

Step 7: Reinstall the caliper

• Pivot the caliper back over the new pads.
• Install the slide-pin bolts by hand first, then tighten with a 12mm socket and torque wrench.
• Torque to 34 Nm (25 ft-lbs)
• Slide pins are the caliper’s moving guide pins; the caliper should slide smoothly when finished.

Step 8: Repeat on the other front side

• Repeat Steps 3–7 on the other front brake.

Step 9: Reinstall wheels and torque lug nuts

• Reinstall both wheels and snug lug nuts with a 19mm socket and ratchet (3/8" drive).
• Lower the Pilot off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench.
• Torque to 127 Nm (94 ft-lbs)

---

✅ After Repair

• Pump the brake pedal 8–15 times until it feels firm (this seats the pads against the rotors).
• Check brake fluid level; top off with DOT 3 only if needed.
• With the engine running, do a low-speed test in a safe area to confirm normal braking and no pulling/noises.
• Pad bedding (recommended): do 6–10 moderate stops from ~40 mph to ~10 mph, letting brakes cool a bit between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
