🔧 Malibu - Front Brake Pad Replacement

Replacing the front brake pads on your Malibu means removing the front wheels, lifting the caliper off the rotor, swapping the pads (and hardware if included), then reassembling and pumping the brake pedal to restore pressure. This is routine maintenance when pads are worn, squealing, or the wear sensor is contacting the rotor.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands before working under/around the wheel area.
• ⚠️ Do not press the brake pedal while the caliper is removed.
• ⚠️ Brake dust is harmful—avoid blowing dust; use brake cleaner instead.
• ⚠️ Watch the brake fluid level while compressing pistons; remove excess if it nears the top.
• ⚠️ Work one side at a time so you can use the other side as a reference.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum, pair)
• Wheel chocks
• 19mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-200 Nm range)
• 13mm socket
• 18mm socket
• Flat-blade screwdriver
• C-clamp (6" minimum)
• Bungee cord
• Wire brush
• Brake parts cleaner
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake hardware kit (clips/shims) - Qty: 1
• High-temp brake grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the shifter in Park, and set the parking brake.
• Place wheel chocks behind both rear wheels.
• Open the hood and locate the brake fluid reservoir. You’ll watch the level when compressing the caliper piston.
• Turn the steering wheel to give yourself more space (turn left to work on the right side, and vice-versa).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front wheel lug nuts

• Use a 19mm socket with a 1/2" drive breaker bar to crack the lug nuts loose about 1/2 turn (do not remove yet).

Step 2: Lift and support the front of the car

• Lift the front with a floor jack (rated 2-ton minimum) at the proper front jacking point.
• Set the car down onto jack stands (rated 2-ton minimum, pair).
• Give the car a gentle shake to confirm it’s stable before removing the wheel.

Step 3: Remove the front wheel

• Remove the lug nuts using the 19mm socket and 3/8" drive ratchet (or breaker bar).
• Remove the wheel and set it under the rocker panel as an extra safety backup.

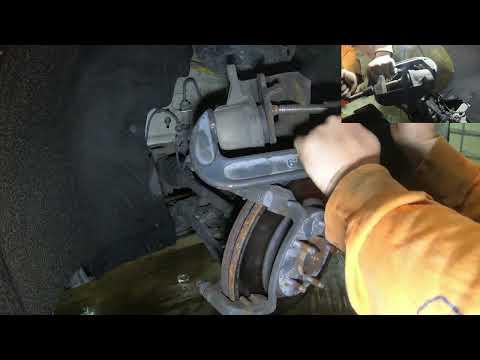

Step 4: Remove the caliper guide pin bolts

• Locate the two caliper guide pin bolts on the back side of the caliper.
• Use a 13mm socket with a 3/8" drive ratchet to remove the upper and lower guide pin bolts.
• Carefully lift the caliper off the rotor.
• Hang the caliper from the strut spring using a bungee cord so the brake hose is not stretched.
• Never let the caliper hang by the hose.

Step 5: Remove the old pads and hardware

• Slide the old inner and outer pads out of the bracket by hand. If stuck, gently pry with a flat-blade screwdriver.
• Remove the pad abutment clips (hardware) from the bracket.
• Use brake parts cleaner and a wire brush to clean rust from the bracket “shelves” where the clips sit.

Step 6: Compress the caliper piston

• Place one old brake pad against the piston face.
• Use a C-clamp (6" minimum) to slowly push the piston straight back into the caliper.
• Check the brake fluid reservoir under the hood while compressing; stop if it looks like it may overflow.
• Go slow to avoid seal damage.

Step 7: Install new hardware and pads

• Install the new abutment clips from the front brake hardware kit onto the bracket.
• Apply a thin film of high-temp brake grease (silicone) where the pad ears contact the clips (metal-to-metal sliding points only).
• Install the new inner and outer pads into the bracket.

Step 8: Reinstall the caliper and torque fasteners

• Lower the caliper over the new pads.
• Reinstall the guide pin bolts using a 13mm socket.
• Torque to 35 Nm (26 ft-lbs) using a torque wrench (20-200 Nm range).

Step 9: Reinstall the wheel and torque the lug nuts

• Reinstall the wheel and hand-thread all lug nuts.
• Snug lug nuts in a star pattern using the 19mm socket.
• Lower the car off the jack stands using the floor jack.
• Torque to 140 Nm (103 ft-lbs) in a star pattern using a torque wrench.

Step 10: Repeat on the other front wheel

• Repeat Steps 1-9 on the other side.

---

✅ After Repair

• With the engine OFF, pump the brake pedal slowly 10-15 times until it feels firm.
• Check brake fluid level and top off only if needed (do not overfill).
• Start the engine and confirm the pedal stays firm.
• Do a careful low-speed test in a safe area: verify normal braking and no pulling or grinding.
• If your pad set includes a break-in procedure, follow it (many pads like 8-10 moderate stops from 50 km/h to 15 km/h with cool-down time).

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹12,000 (parts + labor)

DIY Cost: ₹2,500-₹6,500 (parts only)

You Save: ₹3,500-₹5,500 by doing it yourself!

Shop labor rates vary but typically run ₹1,200-₹2,500/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
