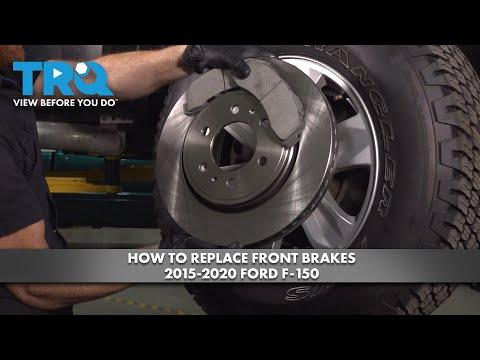

F-150 - Front Brake Pad Replacement 🛠️

I’ll give you a clear, beginner-friendly procedure specific to your F-150.

Tools & Supplies Needed 🧰

• 🛞 Floor jack and jack stands (stands hold the truck safely once lifted)
• 🔩 Lug wrench or 1/2" breaker bar with 21 mm socket (lug nuts)
• 🔧 Socket set:
  • 13 mm socket – front caliper slide pin bolts
  • 21 mm socket – caliper bracket bolts (if you remove the bracket)
  • Ratchet and short extension
• 🧰 Torque wrench (tightens bolts to a set value)
• 🪛 Flat screwdriver or small pry bar
• 🧲 Wire hook / bungee cord (to hang the caliper, not by the hose)
• 🧼 Brake cleaner spray
• 🧴 High-temp brake grease (for pad ears and slide pins)
• 🧤 Gloves and safety glasses
• 📏 C-clamp or disc brake piston tool (to push piston back)
• 🧽 Clean rags; optional small wire brush

Key Torque Specs 🔧

• 🛠️ Front wheel lug nuts: 150 lb-ft (203 N·m)
• 🛠️ Front caliper slide pin bolts: 25–30 lb-ft (34–41 N·m)
• 🛠️ Front caliper bracket bolts: 166 lb-ft (225 N·m)

Safety First ⚠️

• 🧯 Always support the truck with jack stands, never only the jack.
• 🧱 Chock (block) the rear wheels so it cannot roll.
• 😷 Use brake cleaner, do not blow brake dust into the air.
• 🔥 Make sure brakes are cool before working.

F-150 - Lift & Remove Wheels 🚙

1. Loosen front lug nuts 1/2 turn with the 21 mm socket while the truck is on the ground.
2. Set parking brake and chock rear wheels.
3. Lift the front using the floor jack under the front frame crossmember.
4. Place jack stands under the frame rails behind each front wheel; lower the truck onto them.
5. Remove front wheels and set them aside.

F-150 - Remove Caliper & Old Pads 🧱

1. Turn the steering to open up space (turn right to work on left wheel, and opposite).
2. Locate the caliper slide pin bolts on the back of the caliper (top and bottom).
3. Remove slide pin bolts with the 13 mm socket.
   • If the pin spins, hold the flat on the pin with a wrench while loosening.
4. Lift the caliper off the bracket.
   • Wiggle it; use a flat screwdriver gently if needed.
   • Hang it with a wire/bungee so it does not hang by the hose.
5. Slide the old pads out of the bracket.
   • Note which pad had the metal wear indicator tab (usually inner pad).
6. Inspect the rotor for deep grooves, cracks, or heavy ridges. Replace rotors if badly worn or if you had vibration when braking.

F-150 - Clean Bracket & Hardware 🧽

1. Remove old pad hardware clips from the bracket if your new pads include new clips.
2. Clean the bracket where the clips sit using brake cleaner and a wire brush; wipe dry.
3. Install new hardware clips by snapping them into place.
4. Service slide pins:
   • Pull each pin out, wipe off old grease.
   • Apply a thin coat of high-temp brake grease.
   • Reinsert and make sure each pin slides smoothly.

F-150 - Compress Piston 🔄

1. Check brake fluid level in the master cylinder; if very full, remove a little so it doesn’t overflow.
2. Place an old pad against the piston inside the caliper.
3. Use a C-clamp between the back of the caliper and the old pad; slowly tighten until the piston is fully seated.
4. Check the rubber boot around the piston to be sure it is not twisted or torn.

F-150 - Install New Pads 🆕

1. Apply a very thin layer of brake grease to the metal “ears” of the new pads where they contact the hardware clips.
   • Do not get grease on pad friction surfaces or rotor.
2. Install new inner and outer pads into the bracket.
   • If one pad has a wear indicator tab, install it in the same position as the old one (usually inner pad).
3. Reinstall the caliper over the new pads, making sure it fits over them without forcing.
4. Install slide pin bolts by hand first, then torque to 25–30 lb-ft (34–41 N·m).

Repeat the same steps on the other front side.

F-150 - Refit Wheels & Torque 🔩

1. Reinstall front wheels; start lug nuts by hand in a star pattern.
2. Lift slightly, remove jack stands, then lower the truck fully.
3. Torque lug nuts in a star pattern to 150 lb-ft (203 N·m).

F-150 - Final Steps & Test 🧪

1. Pump the brake pedal 5–10 times with the engine off until it feels firm. This seats the pads.
2. Check brake fluid level and top up with the correct fluid if needed.
3. Look for leaks around calipers and hoses.

Pad Bedding (Break-In) 🚗

1. On a safe road, do 5–6 medium stops from about 40–10 km/h (25–6 mph).
2. Then 2–3 slightly harder stops from about 60–20 km/h (37–12 mph).
3. Drive for 5–10 minutes with light braking to cool the brakes.

If you tell me whether you’re also changing the front rotors, I can add a short rotor-removal section specific to your truck.
