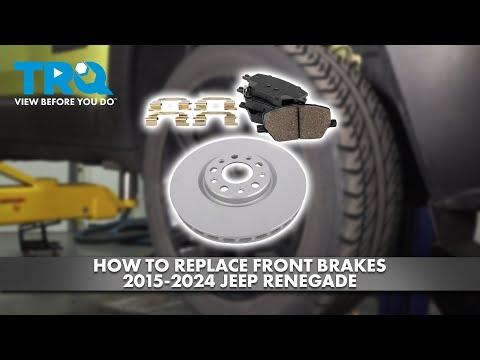

🔧 Renegade - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front calipers out of the way, replace the pad set (and any included hardware), then compress the caliper pistons so everything fits back together. This restores safe braking and prevents metal-to-metal damage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🧯 Work on level ground; support your Renegade on jack stands (never only a jack).
• 🧤 Brake dust is harmful—wear nitrile gloves and safety glasses; use brake cleaner, not compressed air.
• 🔥 Brakes can be hot after driving—let them cool before starting.
• 🧪 Brake fluid can overflow when you compress the piston—check the reservoir level often and wipe spills immediately (it damages paint).
• 🔌 Battery disconnect is not required for front pads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Torque wrench (10–200 Nm range)
• Breaker bar
• 17mm socket
• 19mm socket
• 13mm socket
• 18mm socket
• 21mm socket
• Ratchet
• C-clamp brake piston compressor
• Small flathead screwdriver
• Bungee cord
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, leave the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Crack the front lug nuts loose 1/2 turn using a 17mm socket or 19mm socket and a breaker bar (do this before lifting).
• Open the hood and locate the brake fluid reservoir. You don’t need to remove the cap, but keep an eye on the fluid level while compressing pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack to lift the front at the proper jacking point, then place jack stands under the approved support points.
• Lower onto the jack stands and give the vehicle a gentle shake to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts using a 17mm socket or 19mm socket and a ratchet.
• Set the wheels aside, flat on the ground.

Step 3: Remove the caliper (keep it supported)

• Turn the steering wheel to give yourself more room at the caliper.
• Remove the two caliper slide/guide bolts using a 13mm socket and ratchet.
• Lift the caliper off the bracket.
• Hang the caliper from the strut spring using a bungee cord so it doesn’t hang by the brake hose. Never let the hose carry weight.

Step 4: Remove old pads and hardware

• Pull the inner and outer pads out of the bracket by hand.
• If your new pads include new abutment clips, pry the old clips out using a small flathead screwdriver.
• Clean the pad “tracks” on the bracket using a wire brush and spray with brake cleaner.

Step 5: Compress the caliper piston

• Place one of the old pads against the piston face.
• Use a C-clamp brake piston compressor to slowly push the piston fully back into the caliper.
• Check the brake fluid reservoir level under the hood while compressing; remove excess fluid if it starts to overflow.

Step 6: Install new hardware and pads

• Install the new abutment clips (if included) into the bracket by hand until they fully seat.
• Apply a thin film of brake caliper grease (silicone) to pad contact points where the pad ears touch the clips. Keep grease off pad friction material.
• Install the new pads into the bracket (inner pad typically goes on the piston side).

Step 7: Reinstall the caliper and torque fasteners

• Lower the caliper over the new pads.
• Reinstall the slide/guide bolts using a 13mm socket and ratchet.
• Torque to 35 Nm (26 ft-lbs)

Step 8: Repeat on the other side

• Repeat Steps 3–7 on the other front wheel.
• Do both sides—front pads should be replaced in pairs.

Step 9: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Snug the lug nuts using a 17mm socket or 19mm socket with a ratchet.
• Lower the vehicle off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench.
• Torque to 135 Nm (100 ft-lbs)

---

✅ After Repair

• 🦶 Pump the brake pedal slowly 8–12 times until it feels firm (this seats the pads against the rotors).
• 🧪 Re-check brake fluid level and top off only if needed.
• 🔍 Look through the wheel spokes to confirm pads are seated and nothing is leaking.
• 🚗 Do a cautious test drive: gentle stops first, then progressively firmer stops.
• 🛑 If the pedal stays soft or sinks, do not drive—recheck caliper installation and fluid level.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
