🔧 Golf - Front Brake Pad Replacement

Your Golf’s front pads can be replaced at home, but VW used more than one front brake setup on this platform, and the caliper bracket bolt type/torque can change. To give you the exact tool sizes and torque specs (so you don’t strip bolts or under-tighten), I need two quick details first.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Golf with jack stands—never rely on a floor jack alone.
• 🛑 Don’t press the brake pedal with a caliper removed.
• 🛑 Brake dust is irritating—wear a dust mask and safety glasses.
• 🛑 Keep brake fluid off paint; it damages paint fast.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• Torque wrench (20–200 Nm range)
• Ratchet
• Breaker bar
• 7mm hex bit socket
• 13mm socket
• 15mm wrench
• Caliper piston compression tool (specialty)
• Flat trim tool
• Bungee cord
• Wire brush
• Safety glasses
• Nitrile gloves
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad wear sensor (if equipped) - Qty: 1
• Brake caliper guide pin bolt kit (recommended) - Qty: 1
• Brake grease (silicone/ceramic) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and locate the brake fluid reservoir. Fluid may rise when compressing pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Answer these 2 quick checks (so torques/tools are exact)

• Use a tape measure or ruler to check the front rotor diameter (roughly 288 mm or 312 mm).
• Look at the inner pad on the front-left wheel: does it have a wire plugged into it (pad wear sensor) or no wire?

Step 2: Lift the front and remove the wheel

• Use a 17mm socket and breaker bar to loosen the wheel bolts 1/2 turn (on the ground).
• Lift with a floor jack and support with jack stands at the proper front jack points.
• Remove the wheel bolts with a 17mm socket and remove the wheel.
• When reinstalling later: Torque to 120 Nm (89 ft-lbs).

Step 3: Remove the caliper guide pin bolts

• Turn the steering so you can access the back of the caliper.
• Hold the guide pin flats with a 15mm wrench.
• Remove the two caliper guide pin bolts using a 13mm socket and ratchet.

Step 4: Lift the caliper off and support it

• Carefully lift the caliper off the pads/rotor.
• Hang the caliper from the strut spring using a bungee cord. Never let it hang by the hose.

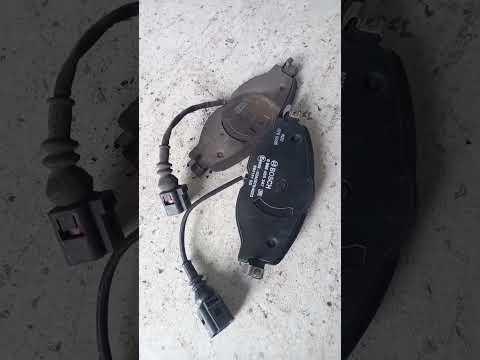

Step 5: Remove old pads and prep the bracket

• Remove the inner and outer pads by hand.
• If your Golf has a pad wear sensor, unplug it using a flat trim tool (gently pry the connector tab).
• Clean pad contact points on the bracket using brake cleaner and a wire brush.

Step 6: Compress the caliper piston

• Install the old inner pad against the piston (by hand) to spread force evenly.
• Use a caliper piston compression tool (specialty) to push the piston straight back slowly.
• Check the brake fluid reservoir level and remove excess if needed. Do not overflow the reservoir.

Step 7: Install new pads (and grease correctly)

• Apply a thin layer of brake grease to pad “ears” (where the pad slides in the bracket). Keep grease off pad/rotor.
• Install the new inner and outer pads into the bracket by hand.
• If equipped, route and reconnect the wear sensor wire exactly like the original.

Step 8: Reinstall the caliper and tighten guide pin bolts

• Set the caliper back over the new pads.
• Start both guide pin bolts by hand to avoid cross-threading.
• Hold guide pin flats with a 15mm wrench and tighten with a 13mm socket.
• Torque to 35 Nm (26 ft-lbs).

Step 9: Reinstall the wheel

• Install the wheel bolts by hand.
• Lower the Golf and tighten wheel bolts in a star pattern using a torque wrench.
• Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• Pump the brake pedal slowly 10–15 times until it feels firm. This seats the pads.
• Check brake fluid level and top off only if needed (use the correct DOT fluid shown on the reservoir cap).
• Do a low-speed test in a safe area: confirm normal stopping and no pulling/noises.
• Avoid hard stops for the first 150–300 miles to help pads bed in evenly.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---

🎯 Ready to get started?

Reply with: (1) your front rotor size (288 or 312 mm) and (2) whether there’s a wear-sensor wire on the front-left pad. I’ll then update this with the exact caliper bracket bolt tool/torque (the one that varies) and any hardware notes for your Golf.
