🔧 Renegade - Front Brake Pad Replacement

You’ll remove the front caliper, swap the old pads for new ones, then reassemble and torque everything correctly. This restores braking performance and prevents metal-to-metal rotor damage when pads are worn.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: Common Renegade front caliper hardware (guide pins and bracket bolts). Bolt head sizes can vary—match the socket to the bolt head you see.

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface and support the vehicle with jack stands—never rely on a jack alone.
• ⚠️ Chock the rear wheels so the vehicle cannot roll.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ Don’t let the caliper hang by the brake hose—support it with a hanger.
• ⚠️ Watch the brake fluid level when compressing pistons; remove excess if it rises too high.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20–200 Nm range)
• 13mm socket
• 17mm socket
• Flat-blade screwdriver
• C-clamp (6")
• Brake caliper hanger (specialty)
• Wire brush
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Brake pad hardware/anti-rattle clip kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind both rear tires.
• Loosen the front wheel lug nuts 1/2 turn before lifting (use a 19mm socket and breaker bar).
• Open the hood and locate the brake fluid reservoir; you’ll re-check the level after pushing the piston back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift at the proper front jacking point.
• Set the vehicle down onto jack stands (rated 3-ton minimum).
• Give the vehicle a firm shake to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts using a 19mm socket and 3/8" drive ratchet.
• Remove the wheel and set it aside.

Step 3: Remove the caliper (the clamping part)

• Turn the steering wheel to give yourself more room at the caliper.
• Locate the two caliper guide/slide pin bolts on the back of the caliper.
• Remove the guide/slide pin bolts using a 13mm socket and 3/8" drive ratchet.
• Carefully lift the caliper off the bracket.
• Hang the caliper from the suspension using a brake caliper hanger (specialty).
• Slide pins let the caliper “float” evenly.

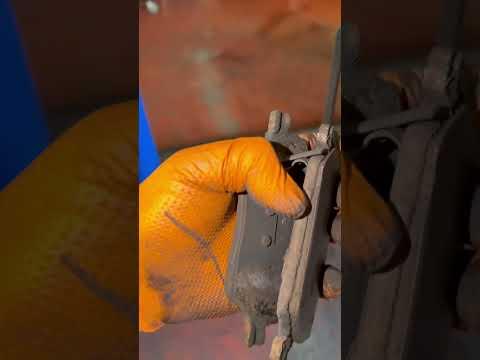

Step 4: Remove the old brake pads and hardware

• Slide the old inner and outer pads out of the bracket by hand.
• Remove the anti-rattle clips from the bracket using a flat-blade screwdriver.
• Clean the bracket pad contact areas with brake cleaner and a wire brush.

Step 5: Compress the caliper piston

• Place one old pad against the piston face (this spreads the force evenly).
• Use a C-clamp (6") to slowly press the piston back into the caliper.
• Go slowly and watch the brake fluid reservoir under the hood; don’t let it overflow.
• The piston must retract to fit new pads.

Step 6: Install new hardware clips and new pads

• Install new anti-rattle clips onto the bracket by hand (they should snap/seat firmly).
• Apply a thin layer of brake caliper grease (silicone) to pad “ears” where they slide on the clips.
• Install the new pads into the bracket (inner pad typically goes on the piston side).

Step 7: Reinstall the caliper

• Lower the caliper back over the new pads.
• Install and tighten the guide/slide pin bolts using a 13mm socket and torque wrench.
• Torque to 35 Nm (26 ft-lbs).

Step 8: If you removed the caliper bracket (only if needed)

• If the bracket was removed for any reason, reinstall bracket bolts using a 17mm socket and torque wrench.
• Torque to 118 Nm (87 ft-lbs).

Step 9: Reinstall wheels and torque lug nuts

• Reinstall the wheel and hand-thread all lug nuts.
• Snug lug nuts in a star pattern using a 19mm socket and ratchet.
• Lower the vehicle off the jack stands using the floor jack.
• Final-tighten lug nuts in a star pattern with a torque wrench.
• Torque to 135 Nm (100 ft-lbs).

Step 10: Restore brake pedal feel

• With the engine OFF, press the brake pedal slowly 10–15 times until it feels firm.
• Check the brake fluid level and top off only if needed.
• Do a final look for anything loose, twisted hoses, or leaks.

---

✅ After Repair

• Start the engine and confirm the brake pedal stays firm.
• Do a low-speed test in a safe area (5–10 mph), then gradually increase speed.
• Bed-in the pads: make 6–10 moderate stops from ~30 mph to ~5 mph, with short cool-down driving between stops.
• Re-check lug nut torque after 25–50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$150 (parts only)

You Save: $190-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
