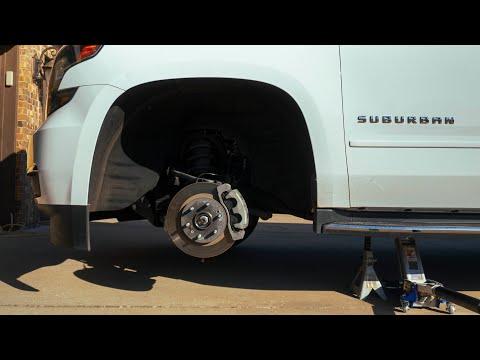

🔧 Suburban - Front Brake Pad Replacement

Replacing the front brake pads on your Suburban means removing the front wheels, swinging the front calipers out of the way, installing new pads (and hardware), then reassembling and pumping the brake pedal to restore a firm pedal. This is routine maintenance, but the parts are heavy and the bolts are tight, so take your time.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the truck with jack stands before removing any wheels.
• ⚠️ Do not press the brake pedal while a caliper is off the rotor.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ Brake fluid can damage paint—cover fenders and wipe spills immediately.
• ⚠️ Do not let the caliper hang by the brake hose—support it with a bungee cord.
• Battery disconnect is not required for front pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• Breaker bar (1/2-inch drive)
• Torque wrench (20-250 ft-lbs range)
• 13mm socket
• 18mm socket
• Ratchet (3/8-inch drive)
• Flathead screwdriver
• C-clamp (6-inch minimum)
• Wire brush
• Bungee cord
• Brake parts cleaner
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• High-temperature brake lubricant - Qty: 1
• Brake cleaner - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 (top-off as needed)

---

📋 Before You Begin

• Park on level ground, shift to Park, and chock the rear wheels.
• Open the hood and locate the brake fluid reservoir. Keep the cap on, but be ready: the fluid level may rise when you compress the caliper pistons.
• Loosen the front wheel lug nuts slightly before lifting (do not remove yet).
• Tip: Take a photo of pad orientation first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front

• Use a floor jack (rated 3-ton minimum) to lift the front at the front jacking point.
• Set the truck down onto jack stands (rated 3-ton minimum) and confirm it is stable.
• Keep wheel chocks at the rear tires.

Step 2: Remove the front wheels

• Use a 21mm socket and breaker bar (1/2-inch drive) to remove the lug nuts, then remove the wheels.
• Set lug nuts aside where they won’t get dirty.

Step 3: Locate the caliper bolts

• Turn the steering to give yourself room to work on one side.
• On the back of the caliper, locate the two caliper guide pin bolts (these are the bolts that let the caliper “slide”).

Step 4: Remove the caliper and support it

• Use a 13mm socket and ratchet (3/8-inch drive) to remove the two caliper guide pin bolts.
• Lift the caliper off the rotor. If it’s stuck, use a flathead screwdriver to gently pry between the old pad and rotor to create a little space.
• Support the caliper with a bungee cord so the brake hose is not strained.

Step 5: Remove old pads and hardware

• Slide the old pads out of the caliper bracket by hand.
• Remove the old abutment clips (the thin metal pad “rails”) from the bracket.
• Use brake parts cleaner and a wire brush to clean the bracket pad contact areas until smooth.

Step 6: Compress the caliper pistons

• Place one old pad against the pistons, then use a C-clamp (6-inch minimum) to slowly press the pistons fully back into the caliper.
• Go slowly and watch the brake fluid reservoir level under the hood—do not let it overflow.
• Tip: Slow pressure helps prevent messy overflow.

Step 7: Install new hardware and pads

• Install the new abutment clips from the front brake pad hardware kit into the caliper bracket.
• Apply a thin layer of high-temperature brake lubricant where the pad “ears” touch the clips (metal-to-metal contact points only).
• Install the new pads into the bracket in the same orientation as the old pads.

Step 8: Reinstall the caliper

• Position the caliper over the new pads and rotor.
• Install the caliper guide pin bolts by hand first, then tighten with a 13mm socket and ratchet (3/8-inch drive).
• Final tighten with a torque wrench (20-250 ft-lbs range): Torque to 42 Nm (31 ft-lbs).

Step 9: Repeat on the other front side

• Repeat Steps 3–8 on the other front wheel.
• Tip: Always replace pads on both sides.

Step 10: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the truck to the ground using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (20-250 ft-lbs range): Torque to 190 Nm (140 ft-lbs).

Step 11: Pump the brake pedal and check fluid

• Before driving, pump the brake pedal slowly 10–15 times until it feels firm.
• Check the brake fluid level and top off only if needed using brake fluid (DOT 3).

---

✅ After Repair

• With the engine on, confirm the brake pedal stays firm and does not sink.
• Do a low-speed test stop in a safe area. Listen for grinding or clunks.
• Bed-in (break-in) the pads: make 8–10 moderate stops from ~40 mph down to ~10 mph, allowing short cooling time between stops. Avoid hard stops for the first 200 miles.
• Recheck brake fluid level after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 (parts + labor)

DIY Cost: ₹4,000-₹12,000 (parts only)

You Save: ₹8,000-₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹2,000-₹4,000/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
