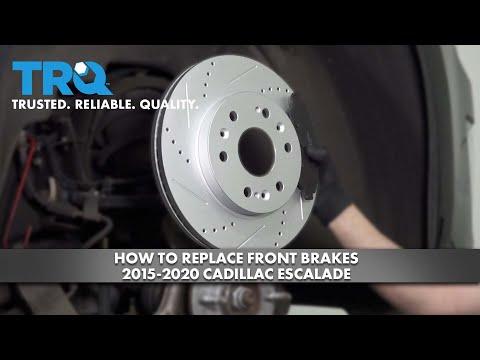

🔧 Escalade - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front calipers out of the way, swap the pads, then compress the caliper pistons so everything fits back together. This restores safe braking and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Escalade with jack stands; never rely on a jack.
• 🛑 Brakes may be hot; let them cool before touching parts.
• 🛑 Do not inhale brake dust; use brake cleaner, not compressed air.
• 🛑 Don’t let the caliper hang by the brake hose; use a caliper hanger hook (a hooked tool/strap that supports the caliper).
• 🛑 Check brake fluid level while compressing pistons; remove a little if it looks overfull.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (50-200 ft-lbs range)
• Ratchet (3/8" drive)
• Socket set (metric)
• 18mm socket
• 13mm socket
• C-clamp (6" minimum) or disc brake piston compressor (specialty)
• Flat trim tool or flathead screwdriver
• Wire brush
• Caliper hanger hook (specialty)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake hardware/abutment clip kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels using wheel chocks.
• 🧴 Open the hood and locate the brake fluid reservoir; keep the cap on, but check the fluid level so you can watch it while compressing pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front lug nuts

• Use a 21mm lug nut socket with a 1/2" drive breaker bar to loosen (do not remove) the front lug nuts.

Step 2: Raise and support the front end

• Use a floor jack (rated 3-ton minimum) to lift the front of the Escalade at the proper jacking point.
• Set it onto jack stands (rated 3-ton minimum) and confirm it’s stable before you work.
• Remove the lug nuts with the 21mm lug nut socket and take the wheels off.

Step 3: Remove the caliper guide pin bolts

• Turn the steering wheel to give yourself room at the caliper.
• Use a 13mm socket and ratchet (3/8" drive) to remove the two caliper guide pin bolts (upper and lower).

Step 4: Support the caliper and remove the old pads

• Lift the caliper off the bracket.
• Hang the caliper using a caliper hanger hook (specialty) so the brake hose is not stretched.
• Slide the inner and outer pads out of the bracket by hand. If they’re stuck, use a flat trim tool or flathead screwdriver gently.
• Take a photo of pad orientation.

Step 5: Remove and replace the pad hardware clips

• Remove the old stainless hardware/abutment clips from the caliper bracket.
• Use a wire brush to clean the pad “rails” (where the clips sit) until smooth.
• Install the new hardware clips from your front brake hardware/abutment clip kit.

Step 6: Compress the caliper piston

• Position the old inner pad against the piston face (to spread force evenly).
• Use a C-clamp (6" minimum) or disc brake piston compressor (specialty) to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir as you compress; if it gets too high, remove a small amount with a clean suction tool (do not spill on paint).

Step 7: Install the new pads

• Apply a thin film of brake caliper grease (silicone) to pad backing contact points and caliper/bracket contact points (do not get any on pad friction material or rotor).
• Slide the new inner and outer pads into the bracket, making sure they move freely in the clips.

Step 8: Reinstall the caliper

• Place the caliper over the new pads.
• Install the guide pin bolts using a 13mm socket and ratchet (3/8" drive).
• Tighten the guide pin bolts with a torque wrench: Torque to 74 Nm (55 ft-lbs).

Step 9: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the Escalade off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench: Torque to 190 Nm (140 ft-lbs).

Step 10: Seat the pads and confirm pedal feel

• Before driving, pump the brake pedal slowly 8–12 times until it feels firm. This seats the pistons against the new pads.
• Verify the brake fluid level is between MIN and MAX.
• Spray any greasy fingerprints off rotors/calipers using brake cleaner and let dry.

---

✅ After Repair

• 🧪 Test in a safe area: roll at low speed and brake gently to confirm normal stopping and no pulling.
• 🔎 Listen for abnormal grinding/squeal; light pad “whoosh” is normal at first.
• 🛞 Recheck lug nut torque after 25–50 miles using a torque wrench: Torque to 190 Nm (140 ft-lbs).
• 🧯 Pad break-in: make 8–10 moderate stops from 30–35 mph with cooling time between; avoid hard stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
