🔧 Tucson - Front Brake Pad Replacement

Replacing the front brake pads on your Tucson means removing the front wheels, opening each front brake caliper, replacing the worn pads, and reinstalling everything safely. This restores braking performance and prevents damage to the front brake rotors.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only. Never rely on a jack by itself.
• ⚠️ Always support your Tucson with jack stands before working near the wheels.
• ⚠️ Brake dust can be harmful. Do not blow it with compressed air.
• ⚠️ Brake fluid can damage paint. Wipe spills immediately with a clean rag and water.
• ⚠️ The brake pedal may go to the floor after the repair until you pump it several times.
• ⚠️ Battery disconnect is not required for front brake pad replacement on your Tucson.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• Breaker bar 1/2-inch drive
• Torque wrench 1/2-inch drive
• 14mm socket
• 17mm wrench
• Ratchet 3/8-inch drive
• Flat blade screwdriver
• Disc brake pad spreader tool (specialty)
• C-clamp 6-inch
• Brake caliper hanger hook
• Wire brush
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake lubricant - Qty: 1
• DOT 3 brake fluid - Qty: 1 small bottle

---

📋 Before You Begin

• Park your Tucson on level ground and shift the transmission to Park.
• Apply the parking brake firmly.
• Place wheel chocks behind the rear tires. Wheel chocks are wedges that stop the vehicle from rolling.
• Open the hood and locate the brake fluid reservoir near the driver-side rear of the engine bay.
• Check the brake fluid level. If it is at or near the MAX line, remove a small amount with a clean suction tool before compressing the calipers.
• Keep the brake reservoir cap loosely installed while compressing the caliper pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 21mm lug nut socket and breaker bar 1/2-inch drive to loosen the front lug nuts about one turn.
• Do not remove the lug nuts yet.
• Loosen before lifting the vehicle.

Step 2: Raise and Support the Front of the Vehicle

• Use a floor jack (rated 2-ton minimum) at the front center jacking point or approved front side pinch weld jacking point.
• Raise your Tucson high enough for both front wheels to clear the ground.
• Place jack stands (rated 2-ton minimum) under the approved front support points.
• Lower the vehicle gently onto the jack stands.
• Lightly shake the vehicle by hand to confirm it is stable before working.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and ratchet 3/8-inch drive to remove the loosened lug nuts.
• Remove both front wheels and place them flat under the side of the vehicle as an extra safety backup.

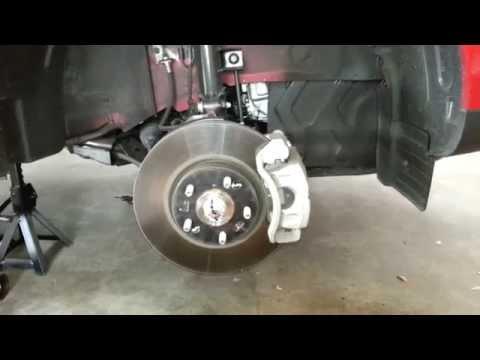

Step 4: Inspect the Brake Assembly

• Put on safety glasses and nitrile gloves.
• Look at the brake caliper, rotor, brake hose, and pad thickness before taking anything apart.
• The caliper is the clamp-shaped part that squeezes the brake pads against the rotor.
• If the rotor is deeply grooved, cracked, heavily rusted, or below service thickness, replace or resurface the rotors before installing new pads.

Step 5: Remove the Lower Caliper Slide Bolt

• Use a 14mm socket and ratchet 3/8-inch drive to remove the lower caliper slide bolt.
• If the slide pin spins, hold the flat side of the pin with a 17mm wrench while loosening the bolt with the 14mm socket.
• The slide pin lets the caliper move smoothly as the pads wear.

Step 6: Swing the Caliper Up

• Use a flat blade screwdriver gently between the caliper and outer pad if the caliper is tight.
• Swing the caliper upward away from the pads.
• Support the caliper with a brake caliper hanger hook.
• Do not let the caliper hang by the rubber brake hose.

Step 7: Remove the Old Brake Pads and Hardware

• Pull the inner and outer brake pads out of the caliper bracket by hand.
• Use a flat blade screwdriver if the pads are stuck, but do not gouge the bracket.
• Remove the old stainless pad clips from the caliper bracket.
• The pad clips are thin metal guides that help the pads slide quietly.

Step 8: Clean the Caliper Bracket

• Use a wire brush to clean rust and dirt from the pad contact areas on the caliper bracket.
• Spray the area with brake cleaner spray.
• Wipe clean with shop towels.
• Do not spray brake cleaner on painted body panels.

Step 9: Install the New Brake Pad Hardware

• Press the new clips from the front brake pad hardware kit into the caliper bracket by hand.
• Make sure each clip sits fully flat and matches the shape of the original clip.
• Apply a very thin layer of brake lubricant to the pad contact points on the clips.
• Do not get lubricant on the brake pad friction material or rotor surface.

Step 10: Compress the Caliper Piston

• Place one old brake pad against the caliper piston.
• Use a disc brake pad spreader tool (specialty) or C-clamp 6-inch to slowly push the piston fully back into the caliper.
• The piston is the round part inside the caliper that pushes the inner brake pad.
• Watch the brake fluid reservoir while compressing the piston. Use shop towels to catch any overflow.
• Compress slowly to avoid pushing fluid back too fast.

Step 11: Install the New Front Brake Pads

• Install the new inner and outer pads into the caliper bracket by hand.
• Make sure the friction material faces the rotor.
• If the pad set includes a wear indicator, install it in the same general position as the old pad.
• The wear indicator is a small metal tab that squeals when pads are worn.
• Slide the pads back and forth slightly to confirm they move freely in the clips.

Step 12: Reinstall the Caliper

• Lower the caliper over the new pads by hand.
• If it will not fit, use the disc brake pad spreader tool (specialty) or C-clamp 6-inch to compress the piston a little more.
• Reinstall the lower caliper slide bolt by hand first to avoid cross-threading.
• Use a 14mm socket and torque wrench 3/8-inch drive to tighten the caliper slide bolt to Torque to 24-34 Nm (18-25 ft-lbs).
• If the slide pin spins, hold it with a 17mm wrench.

Step 13: Repeat on the Other Front Side

• Repeat Steps 4 through 12 on the other front brake assembly.
• Use the same 14mm socket, 17mm wrench, wire brush, brake cleaner spray, and disc brake pad spreader tool (specialty).
• Always replace front brake pads as a complete axle set.

Step 14: Reinstall the Front Wheels

• Place each front wheel back onto the hub.
• Thread the lug nuts by hand first.
• Use the 21mm lug nut socket and ratchet 3/8-inch drive to snug the lug nuts in a star pattern.
• Do not fully torque the lug nuts while the wheels are still off the ground.

Step 15: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack (rated 2-ton minimum) to raise your Tucson slightly off the jack stands.
• Remove the jack stands (rated 2-ton minimum).
• Lower the vehicle until the tires touch the ground.
• Use a 21mm lug nut socket and torque wrench 1/2-inch drive to tighten the lug nuts in a star pattern to Torque to 88-107 Nm (65-79 ft-lbs).

Step 16: Pump the Brake Pedal

• Sit in the driver seat and press the brake pedal slowly several times until it feels firm.
• This moves the caliper pistons back against the new pads.
• Do not drive until the pedal feels normal and firm.

Step 17: Check Brake Fluid Level

• Open the hood and check the brake fluid reservoir.
• Add DOT 3 brake fluid only if the level is below the MIN mark.
• Keep the level between MIN and MAX.
• Reinstall the reservoir cap securely.

---

✅ After Repair

• ✅ Start your Tucson and press the brake pedal again. It should feel firm.
• ✅ Check around both front calipers for any signs of fluid leakage.
• ✅ Test drive slowly in a safe area before normal driving.
• ✅ Perform several gentle stops from low speed to confirm smooth braking.
• ✅ Avoid hard braking for the first 200 miles unless needed for safety.
• ✅ Recheck lug nut torque after 25-50 miles using the 21mm lug nut socket and torque wrench 1/2-inch drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 USD equivalent (parts + labor)

DIY Cost: $45-$120 USD equivalent (parts only)

You Save: $130-$330 by doing it yourself!

Shop labor rates vary by location. This repair takes a shop approximately 1.0-1.5 hours.

---
