🔧 Tucson - Front Brake Pad Replacement

This job replaces the front brake pads on your Tucson. The pads are the friction material that squeeze the brake rotors to stop the vehicle, and replacing them before they wear too far protects the rotors and keeps braking safe.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool brake system. Hot brakes can burn skin.
• ⚠️ Support your Tucson with jack stands. Never rely on a floor jack alone.
• ⚠️ Replace front brake pads as a set on both front wheels for even braking.
• ⚠️ Do not press the brake pedal while a caliper is removed.
• ⚠️ Brake dust can be harmful. Use brake cleaner, not compressed air.
• ⚠️ No battery disconnect is required for this front brake pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug nut socket
• 14mm socket
• 17mm wrench
• 3/8-inch ratchet
• 3/8-inch torque wrench
• Breaker bar 1/2-inch drive
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• C-clamp 6-inch
• Flat-blade screwdriver medium
• Brake caliper hanger hook
• Brake cleaner aerosol
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake caliper slide pin grease - Qty: 1
• Disc brake quiet compound - Qty: 1

---

📋 Before You Begin

• 🚗 Park your Tucson on level ground.
• 🅿️ Set the parking brake and place the transmission in 1st gear.
• 🧱 Place wheel chocks behind the rear wheels. Wheel chocks are wedges that stop the vehicle from rolling.
• 🛞 Slightly loosen the front lug nuts before lifting the vehicle.
• 🧴 Check the brake fluid reservoir under the hood. If it is very full, remove a small amount with a clean fluid syringe before compressing the caliper piston.
• 📱 No infotainment menu or scan tool step is required for the front brakes on your Tucson.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 21mm lug nut socket and breaker bar 1/2-inch drive to loosen each front lug nut about half a turn.
• Do not remove the lug nuts yet.
• Tip: Loosen while tires touch ground.

Step 2: Lift and Support the Front of the Tucson

• Use a floor jack (rated 2-ton minimum) at the front center jacking point or the proper front side pinch weld jacking point.
• Place jack stands (rated 2-ton minimum) under the reinforced side pinch welds.
• Lower the vehicle gently onto the jack stands.
• Use wheel chocks behind the rear wheels if not already installed.
• Give the vehicle a light push to confirm it is stable before working near the brakes.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and 3/8-inch ratchet to remove the loosened lug nuts.
• Remove both front wheels and set them flat under the vehicle as an extra safety backup.

Step 4: Inspect the Brake Assembly

• Put on safety glasses and nitrile gloves.
• Look at the caliper, rotor, brake hose, and pad wear.
• The caliper is the clamp-shaped part that squeezes the pads against the rotor.
• If the rotor is deeply grooved, cracked, heavily rusted, or below minimum thickness, replace or machine the rotors before installing new pads.

Step 5: Remove the Lower Caliper Bolt

• Use a 14mm socket and 3/8-inch ratchet to loosen the lower caliper bolt.
• If the slide pin spins, hold it with a 17mm wrench while removing the bolt with the 14mm socket.
• The slide pin is the small moving pin that lets the caliper float evenly as the pads wear.

Step 6: Swing the Caliper Up

• Use a flat-blade screwdriver medium to gently pry the caliper outward a small amount if it feels tight.
• Swing the caliper upward away from the brake pads.
• Use a brake caliper hanger hook to support the caliper from the suspension spring or strut.
• Do not let the caliper hang by the rubber brake hose.

Step 7: Remove the Old Brake Pads and Hardware

• Use your hands or a flat-blade screwdriver medium to slide the old inner and outer brake pads out of the caliper bracket.
• Remove the old stainless pad clips from the bracket if your new hardware kit includes replacements.
• Use brake cleaner aerosol and shop rags to clean the caliper bracket contact areas.
• Avoid spraying brake cleaner on rubber boots.

Step 8: Check and Lubricate the Slide Pins

• Pull the caliper slide pins out by hand one at a time.
• Wipe each pin clean with shop rags.
• Apply a thin coat of brake caliper slide pin grease to each slide pin.
• Push each pin back into its rubber boot and make sure it moves smoothly.
• Do not use regular chassis grease. It can damage brake rubber parts.

Step 9: Install the New Pad Hardware

• Install the new front brake pad hardware kit clips into the caliper bracket by hand.
• Make sure each clip sits fully flat in the bracket.
• Use a flat-blade screwdriver medium only for gentle seating if needed.

Step 10: Compress the Caliper Piston

• Place one old brake pad against the caliper piston.
• Use a C-clamp 6-inch to slowly push the piston fully back into the caliper.
• The piston is the round metal part that pushes the inner pad during braking.
• Watch the brake fluid reservoir while compressing. Stop if fluid gets close to overflowing.
• Tip: Go slowly to protect seals.

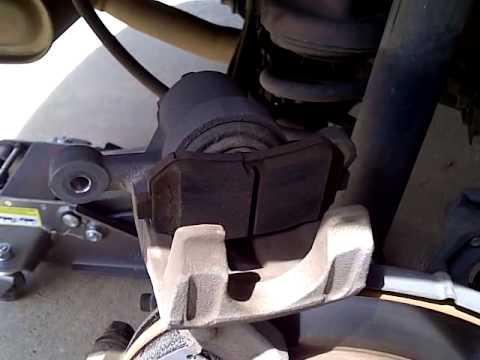

Step 11: Install the New Front Brake Pads

• Apply a light coat of disc brake quiet compound to the metal backing plates only, not the friction material.
• Slide the new inner and outer pads into the caliper bracket by hand.
• Make sure the pad friction material faces the rotor.
• The pads should slide smoothly in the clips without forcing.

Step 12: Reinstall the Caliper

• Remove the brake caliper hanger hook.
• Swing the caliper back down over the new pads.
• Install the lower caliper bolt by hand first to avoid cross-threading.
• Use the 14mm socket, 17mm wrench, and 3/8-inch torque wrench to tighten the caliper bolt.
• Torque to 27 Nm (20 ft-lbs).

Step 13: Repeat on the Other Front Side

• Repeat Steps 4 through 12 on the other front brake.
• Use the same 14mm socket, 17mm wrench, C-clamp 6-inch, and brake cleaner aerosol.
• Always replace both front pads as a complete axle set.

Step 14: Reinstall the Front Wheels

• Install both front wheels by hand.
• Thread the lug nuts on by hand first.
• Use the 21mm lug nut socket and 3/8-inch ratchet to snug the lug nuts in a star pattern.
• Do not fully torque the lug nuts while the wheels are in the air.

Step 15: Lower and Torque the Wheels

• Use the floor jack (rated 2-ton minimum) to lift the vehicle slightly off the jack stands.
• Remove the jack stands (rated 2-ton minimum).
• Lower your Tucson until the tires touch the ground.
• Use the 21mm lug nut socket and 3/8-inch torque wrench to tighten the lug nuts in a star pattern.
• Torque to 88-108 Nm (65-80 ft-lbs).

Step 16: Pump the Brake Pedal

• Sit in the driver seat and press the brake pedal slowly several times until it feels firm.
• This moves the caliper pistons back against the new pads.
• Do not drive until the brake pedal feels firm.

---

✅ After Repair

• ✅ Check brake fluid level and top off only if needed with the correct brake fluid listed on the reservoir cap.
• ✅ Start the engine and press the brake pedal again. It should feel firm and steady.
• ✅ Test the brakes at low speed in a safe area before normal driving.
• ✅ Bed in the pads if the pad maker recommends it. A common method is 8-10 moderate stops from about 30 mph to 5 mph, with cooling time between stops.
• ✅ Avoid hard emergency-style braking for the first 200 miles unless needed for safety.
• ✅ Recheck wheel lug nut torque after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $175-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
