🔧 Cherokee - Front Brake Pad Replacement

Replacing the front brake pads restores stopping power and prevents rotor damage when pads get thin. You’ll remove the front calipers, swap the pads and hardware clips, then reassemble and bed-in the pads.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support your Cherokee on jack stands—never rely on a jack.
• 🛑 Brake dust is harmful—wear a dust mask and use brake cleaner, not compressed air.
• 🛑 Don’t press the brake pedal with the caliper removed.
• 🛑 Brakes may be hot—let everything cool before starting.
• 🛑 Watch brake fluid level when compressing the piston; it can overflow.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum, pair)
• Wheel chocks
• 19mm socket
• Breaker bar (1/2" drive)
• Torque wrench (20-250 ft-lbs range)
• 13mm socket
• 15mm wrench
• 21mm socket
• Ratchet (1/2" drive)
• Ratchet (3/8" drive)
• Flat blade screwdriver
• Caliper piston compressor tool (specialty)
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• High-temp silicone brake lubricant - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the steering wheel straight, and place wheel chocks behind the rear tires.
• Loosen the front wheel lug nuts slightly before lifting the vehicle.
• Pop the hood and loosen the brake fluid reservoir cap (leave it sitting on top). This helps fluid return when you compress the piston.
• Take a photo of pad orientation first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a 19mm socket and breaker bar to loosen (do not remove) the front lug nuts.
• Use a floor jack to lift the front of the Cherokee at the proper front jacking point.
• Place jack stands under the proper support points and lower the vehicle onto them using the floor jack.

Step 2: Remove the front wheels

• Remove the lug nuts using a 19mm socket and ratchet.
• Remove both front wheels.

Step 3: Inspect the caliper and rotor

• Look through the caliper to confirm the pads are low and note how the pad hardware clips sit.
• If the rotor is heavily grooved or has a big outer lip, consider replacing rotors too.

Step 4: Remove the caliper guide pin bolts

• Use a 13mm socket to remove the two caliper guide pin bolts.
• If the guide pin spins, hold it with a 15mm wrench while turning the bolt with the 13mm socket.

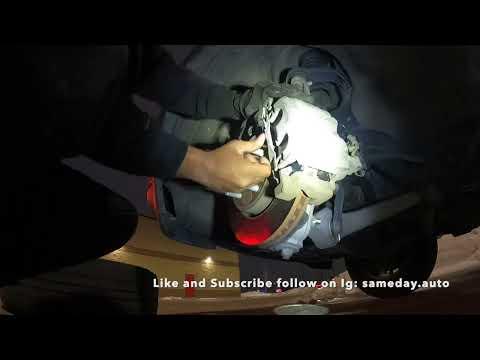

Step 5: Remove and support the caliper

• Use a flat blade screwdriver to gently pry the caliper outward a little if it’s tight.
• Lift the caliper off the bracket.
• Hang the caliper from the suspension spring/strut using a bungee cord.
• Never let the caliper hang by the hose.

Step 6: Remove the old pads and hardware clips

• Pull the inner and outer pads out by hand.
• Remove the stainless hardware clips from the caliper bracket by hand or with a flat blade screwdriver.

Step 7: Clean the bracket contact points

• Spray the bracket pad lands with brake cleaner spray.
• Use a wire brush to clean rust where the hardware clips sit.
• Wipe off residue and let it dry.

Step 8: Install new hardware clips and lubricate correctly

• Install the new hardware clips from the front brake pad hardware kit into the bracket by hand.
• Apply a thin film of high-temp silicone brake lubricant where the pad ears slide on the clips.
• Do not get lubricant on the pad friction material or rotor surface.

Step 9: Compress the caliper piston

• A caliper piston compressor tool is a clamp-style tool that slowly pushes the piston back into the caliper.
• Position the old inner pad against the piston, then use the caliper piston compressor tool (specialty) to press the piston in slowly.
• Check the brake fluid reservoir while compressing; remove excess fluid if it starts to overflow.

Step 10: Install the new pads

• Install the new inner and outer pads into the bracket by hand.
• If your pad set includes a wear indicator clip, install it in the same position as the old one.

Step 11: Reinstall the caliper and torque bolts

• Place the caliper over the new pads.
• Install the two guide pin bolts by hand first, then tighten with a 13mm socket.
• Torque to 35 Nm (26 ft-lbs) using a torque wrench.

Step 12: Repeat on the other side

• Repeat Steps 4–11 for the other front brake.
• Do both sides even if one looks fine.

Step 13: Reinstall wheels and torque lug nuts

• Install the wheels and hand-thread the lug nuts.
• Lower the Cherokee off the stands using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench.
• Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• With the engine off, pump the brake pedal 10–15 times until it feels firm.
• Check brake fluid level and reinstall/tighten the reservoir cap.
• Start the engine and confirm the pedal feels normal (it may drop slightly with brake assist).
• Do a cautious test drive and confirm no pulling, grinding, or warning lights.
• Bed-in the pads: make 6–10 moderate stops from 40 mph to 10 mph, letting brakes cool slightly between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
