🔧 Rogue - Front Brake Pad Replacement

You’ll be removing the front wheels, sliding the brake calipers off, and swapping the old pads for new ones on your Rogue. Then you’ll reassemble everything and bed (break in) the new pads so they stop smoothly and quietly.

Difficulty Level: Beginner | Estimated Time: 1.5–2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the vehicle with jack stands; never work under a car held only by a jack.
• ⚠️ Wear safety glasses and mechanic gloves; brake dust and rust can fall into your eyes and cut your hands.
• ⚠️ Do not press the brake pedal with a caliper removed; you can push the piston out.
• ⚠️ Keep brake fluid off paint; it can damage painted surfaces. Wipe spills immediately.
• ⚠️ Work on cool brakes only. Recently driven brakes can be extremely hot.
• ⚠️ Your Rogue hybrid uses high-voltage systems, but this job is only on the mechanical front brakes; no HV shut-down is needed as long as you stay away from orange cables.
• ⚠️ Battery disconnect is not required, but keep ignition OFF and do not open doors while calipers are off to avoid any automatic brake system self-checks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 2-ton or higher, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ 21mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet or breaker bar
• 🛠️ 14mm socket
• 🛠️ 19mm socket
• 🛠️ Torque wrench (10–150 ft-lbs range)
• 🛠️ Flathead screwdriver (medium size)
• 🛠️ Needle-nose pliers
• 🛠️ C-clamp (6" or larger) or disc brake piston tool
• 🛠️ Wire brush
• 🛠️ Bungee cord or strong wire hanger
• 🛠️ Shop rags
• 🛠️ Brake cleaner spray
• 🛠️ Disposable mask
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses
• 🛠️ Small wire pick or small flat screwdriver

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front brake pad set (left and right) - Qty: 1 set
• 🔩 Front brake pad hardware kit (pad clips / shims) - Qty: 1 set
• 🔩 High-temperature brake grease - Qty: 1 small tube
• 🔩 Brake cleaner - Qty: 1–2 cans
• 🔩 Anti-seize compound - Qty: 1 small tube
• 🔩 Front brake rotors - Qty: 2 (optional but recommended if worn or warped)
• 🔩 Brake fluid DOT 3 or DOT 4 - Qty: 1 small bottle (for top-up only)

---

📋 Before You Begin

• 🔧 Park your Rogue on a flat, solid surface, shift to Park, and apply the parking brake fully.
• 🔧 Place wheel chocks behind both rear wheels so the car cannot roll.
• 🔧 Loosen the front wheel lug nuts one turn with the 21mm socket before lifting the vehicle.
• 🔧 Identify the front jacking point (center under the front subframe) and side pinch welds where jack stands will go.
• 🔧 Keep the ignition OFF and key away from the vehicle during the job.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and Support the Front of the Vehicle

• Use the floor jack (3-ton) under the front center jacking point to raise the front of your Rogue until both front wheels are off the ground.
• Place jack stands under the left and right front pinch welds and slowly lower the car onto the stands with the floor jack.
• Give the car a gentle push to confirm it is stable on the jack stands.

Step 2: Remove Front Wheels

• Use the 21mm socket and 1/2" drive ratchet to remove the lug nuts from both front wheels.
• Remove the wheels and set them aside where they will not tip over.
• Lay wheels flat under car as extra safety.

Step 3: Inspect the Brake Assembly

• Look at the caliper (the part that squeezes the pads), the rotor (the disc), and the pads (between caliper and rotor).
• Check rotor surface: if it is deeply grooved, cracked, or very rusty, plan to replace rotors too.

Step 4: Remove Caliper Slide Pin Bolts

• On the back of the caliper, locate the two slide pin bolts (top and bottom).
• Use a 14mm socket and 3/8" ratchet to loosen and remove both slide pin bolts.
• Set the bolts aside where they will not get dirty.

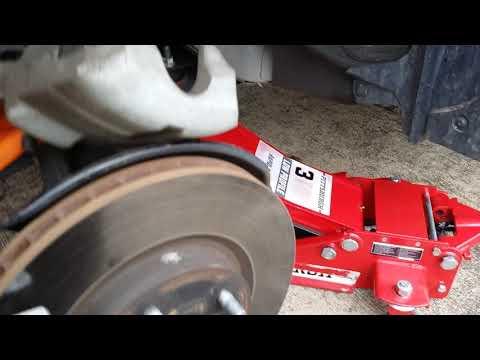

Step 5: Lift Caliper and Support It

• Use a flathead screwdriver to gently pry the caliper outward a bit to relieve pressure from the pads.
• Lift the caliper off the bracket and rotor.
• Hang the caliper from the strut spring using a bungee cord or strong wire so the brake hose is not stretched.
• Never let caliper hang from rubber hose.

Step 6: Remove Old Brake Pads and Hardware

• Slide the inner and outer pads out of the caliper bracket by hand.
• Note the position of any wear sensor tab on one of the pads so you can match it on the new pad in the same location.
• Use needle-nose pliers or a flathead screwdriver to remove the old metal pad clips from the caliper bracket.

Step 7: Clean Bracket and Hardware Surfaces

• Use a wire brush to clean the caliper bracket where the pad clips sit until bare clean metal is visible.
• Spray the area lightly with brake cleaner to remove dust; wear your mask and safety glasses.
• Wipe with shop rags as needed.
• Do not breathe brake dust; keep face away.

Step 8: Check and Clean Caliper Slide Pins

• Pull the slide pins (the smooth pins that the caliper bolts into) out of the caliper bracket one at a time by hand.
• Wipe old grease off each pin with shop rags and a little brake cleaner.
• Check rubber boots for tears; if damaged, they should be replaced.
• Apply a light coat of high-temperature brake grease to each pin and reinstall into the bracket; make sure they move smoothly.

Step 9: Compress the Caliper Piston

• Place one of the old brake pads against the caliper piston face.
• Use the C-clamp or disc brake piston tool across the back of the caliper and the old pad to slowly push the piston back into the caliper.
• Go slowly and watch the brake fluid reservoir under the hood (driver side); open the cap slightly if fluid level gets close to the top.
• Compress both front pistons before driving car.

Step 10: Install New Pad Clips and Prepare Pads

• Install the new metal pad clips from the hardware kit into the caliper bracket by hand; they should snap firmly into place.
• Use a small wire pick or small flat screwdriver to confirm the clips are fully seated.
• Apply a very thin film of high-temperature brake grease to the spots on the clips where the pad “ears” will slide. Do not get grease on pad friction surfaces or rotors.

Step 11: Install New Brake Pads

• Identify the inner pad (often has a spring clip or wear indicator tab) and outer pad.
• Slide the new inner pad into the inner side of the bracket, making sure the wear indicator tab (if present) is in the same position as the old one (usually on the leading edge).
• Slide the new outer pad into the outer side of the bracket.
• Ensure both pads move smoothly in the clips.

Step 12: Reinstall Caliper Over New Pads

• Carefully lower the caliper over the new pads and onto the bracket; make sure the slide pins line up with the holes in the caliper ears.
• Install the top and bottom slide pin bolts by hand to avoid cross-threading.
• Use the 14mm socket and 3/8" ratchet to tighten the slide pin bolts.
• Use the torque wrench with the 14mm socket to tighten each slide pin bolt to 25 Nm (19 ft-lbs).

Step 13: (If Replacing Rotors) Remove Caliper Bracket and Rotor

• If you are replacing rotors, remove the two large caliper bracket bolts on the back of the steering knuckle using a 19mm socket and 1/2" breaker bar.
• Remove the caliper bracket and set aside.
• Pull the rotor off the hub; if stuck, tap around the hat area (center) with a rubber mallet.
• Clean the hub face with a wire brush and apply a very thin film of anti-seize compound on the hub surface.
• Install the new rotor onto the hub, holding it flat and fully seated.
• Reinstall the caliper bracket with the 19mm socket and tighten the two bolts with the torque wrench to 133 Nm (98 ft-lbs).

Step 14: Repeat on the Other Front Side

• Repeat Steps 4–13 on the other front wheel.
• Always replace pads on both sides together.

Step 15: Reinstall Wheels

• Put each wheel back on the hub and hand-thread all lug nuts.
• Use the 21mm socket and 1/2" ratchet to snug the lug nuts in a star pattern while the car is still on stands (do not fully torque yet).

Step 16: Lower Vehicle and Torque Lug Nuts

• Use the floor jack to lift the car slightly, remove the jack stands, then lower the car fully to the ground.
• Use a torque wrench with the 21mm socket to tighten all lug nuts in a star pattern to 113 Nm (83 ft-lbs).

Step 17: Pump Brake Pedal and Check Fluid

• Sit in the driver’s seat and slowly press the brake pedal several times until it becomes firm. This seats the pads against the rotors.
• Check the brake fluid level in the reservoir under the hood. It should be between MIN and MAX. Add a small amount of correct brake fluid if needed.
• Reinstall the brake fluid reservoir cap securely.

---

✅ After Repair

• 🚗 Start your Rogue and, with the car in Park, press the brake pedal a few times; it should feel firm and consistent.
• 🚗 Check around the front brakes for any signs of leaks, loose hoses, or missing hardware.
• 🚗 Perform a short, low-speed test drive: gently brake from 20–30 km/h a few times to confirm normal operation and no pulling or noises.
• 🚗 Bed the new pads: make 6–8 medium stops from about 40–50 km/h down to 10 km/h, allowing some driving time between stops so brakes can cool slightly. Avoid hard panic stops for the first 300–500 km unless necessary.
• 🚗 After the test drive, recheck lug nut torque and look for any unusual smells or smoke (a light odor during first drives can be normal while pads bed in).

---

💰 DIY vs Shop Cost

Shop Cost: $280–$420 (parts + labor)

DIY Cost: $90–$180 (pads, hardware, cleaner, grease)

You Save: $190–$240 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
