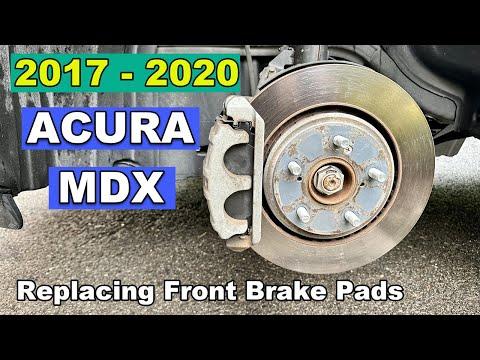

🔧 MDX - Front Brake Pad Replacement

Replacing the front brake pads restores safe stopping power and prevents metal-to-metal grinding that can ruin the rotors. On your MDX, you’ll remove the front caliper, swap the pads and hardware, compress the piston, then reassemble and torque everything correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🛑 Support the SUV with jack stands—never rely on a floor jack alone.
• 🛑 Brakes may be hot; let them cool before starting.
• 🛑 Avoid breathing brake dust; use brake cleaner, not compressed air.
• 🛑 Do not let the caliper hang by the brake hose—support it with a hanger.
• 🛑 Keep brake fluid off paint; it can damage the finish.
• 🛑 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• Breaker bar (1/2")
• Torque wrench (10-200 ft-lbs range)
• 12mm socket
• 17mm socket
• Ratchet (3/8")
• Ratchet (1/2")
• Flathead screwdriver
• C-clamp (6-inch minimum)
• Brake caliper hanger hook
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses
• Small turkey baster

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, put the shifter in P, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts 1/2 turn using a 19mm socket and breaker bar before lifting.
• Open the hood and loosen the brake fluid reservoir cap (leave it sitting on top).
• If the reservoir is very full, remove a small amount using a small turkey baster (brake fluid level rises when you compress the pistons).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front using a floor jack (rated 3-ton minimum) at the front jacking point.
• Set the SUV down onto jack stands (rated 3-ton minimum) at the front support points.
• Give the SUV a gentle shake to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts with a 19mm socket and ratchet (1/2").
• Remove both front wheels and set them aside.

Step 3: Locate the caliper and identify the bolts

• The caliper is the clamp that squeezes the rotor; it sits over the brake pads.
• The two smaller rear bolts are the slide pin bolts (these let the caliper move).

Step 4: Remove the caliper slide pin bolts

• Remove the two slide pin bolts using a 12mm socket and ratchet (3/8").
• If the caliper is stuck, gently pry a little with a flathead screwdriver (go slow).

Step 5: Support the caliper

• Lift the caliper off the pads/rotor.
• Hang it from the suspension spring using a brake caliper hanger hook.
• Never stretch or twist the hose.

Step 6: Remove old pads and hardware

• Slide the old pads out of the bracket by hand.
• Remove the pad abutment clips (hardware) using a flathead screwdriver.
• Clean the bracket “pad lands” (where clips sit) using a wire brush and brake cleaner spray.

Step 7: Compress the caliper piston

• Place an old pad against the piston face (to protect it).
• Slowly compress the piston using a C-clamp (6-inch minimum) until it seats fully.
• Watch the brake fluid reservoir level while compressing; remove fluid with a small turkey baster if it gets too high.
• Compress slowly to avoid seal damage.

Step 8: Install new hardware and grease contact points

• Install new abutment clips from the hardware kit by pressing them into the bracket by hand.
• Apply a thin layer of brake caliper grease (silicone) to the clip contact surfaces (where pad “ears” slide).
• Do not get grease on the pad friction material or rotor.

Step 9: Install the new brake pads

• Slide the new pads into the bracket until they sit squarely and can move freely.
• If a pad has a wear indicator, install it in the same position as the old one.

Step 10: Reinstall the caliper and torque bolts

• Lower the caliper over the new pads.
• Install the slide pin bolts using a 12mm socket and ratchet (3/8").
• Torque to 35 Nm (26 ft-lbs) using a torque wrench (10-200 ft-lbs range).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the SUV off the stands using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using a 19mm socket and torque wrench (10-200 ft-lbs range).
• Torque to 127 Nm (94 ft-lbs).

Step 12: Repeat on the other front side

• Perform the same pad replacement steps on the other front wheel.
• Always replace pads on both sides.

---

✅ After Repair

• Before moving the SUV, pump the brake pedal slowly 10-15 times until it feels firm.
• Check brake fluid level and top off with DOT 3 if needed.
• Start the engine and confirm the pedal stays firm with light pressure.
• Do a cautious test drive: low speed, light braking first, then gradually normal braking.
• Pad break-in (bedding): make 8-10 moderate stops from ~40 to ~10 mph, allowing 30-60 seconds between stops for cooling.
• Recheck for leaks, abnormal smells, or pulling to one side.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
