🔧 Corolla - Front Brake Pad Replacement

Replacing the front brake pads on your Corolla restores stopping power and prevents rotor damage when pads get thin. You’ll remove the front wheel, swing the caliper up, swap pads/hardware, then compress the piston and reassemble with the correct torque.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands; never rely on a floor jack.
• ⚠️ Brakes may be hot; let everything cool before touching.
• ⚠️ Do not press the brake pedal with the caliper removed.
• ⚠️ Brake dust is harmful; use brake cleaner, not compressed air.
• ⚠️ Keep brake fluid off paint; it can damage the finish.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 14mm socket
• 17mm socket
• Torque wrench (10–150 ft-lbs range)
• C-clamp (6" minimum)
• Flathead screwdriver
• Wire brush
• Bungee cord
• Brake cleaner
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (clips/shims) - Qty: 1
• Brake caliper grease (silicone or synthetic) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 (small bottle, top-off as needed)

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Pop the hood and locate the brake fluid reservoir; leave the cap loosely set on top (don’t remove it completely) so fluid can move when the piston is pushed back.
• Take a quick photo of each caliper before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front lug nuts

• Use a 21mm socket with a breaker bar to loosen the lug nuts about 1/2 turn while the tire is still on the ground.

Step 2: Lift and support the front of the car

• Use the floor jack to lift the front at the proper front jacking point.
• Set the car onto jack stands and lightly shake the car to confirm it’s stable.
• Remove the wheel using the 21mm socket.

Step 3: Locate the caliper and remove the lower slide pin bolt

• The caliper is the part that squeezes the pads; the slide pin bolts are the smaller bolts holding it to the bracket.
• Use a 14mm socket and 3/8" drive ratchet to remove the lower slide pin bolt.
• Keep the bolt clean; set it aside.

Step 4: Swing the caliper up and support it

• Use a flathead screwdriver to gently pry the caliper up if it’s snug.
• Support the caliper with a bungee cord so it doesn’t hang by the brake hose.
• Never let the caliper dangle by the hose.

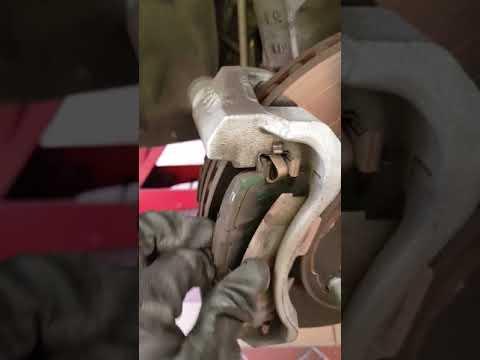

Step 5: Remove the old pads and hardware

• Pull the inner and outer pads out by hand.
• Remove the pad clips/shims from the bracket (this is the “hardware”).
• Use brake cleaner and a wire brush to clean the pad contact areas on the bracket.

Step 6: Compress the caliper piston

• Place one old brake pad against the piston face.
• Use a C-clamp (6" minimum) to slowly push the piston back into the caliper until it bottoms out.
• Check the brake fluid reservoir while compressing; if it gets too high, remove a small amount (do not overflow).
• Go slow to avoid damaging seals.

Step 7: Install new hardware and grease the contact points

• Install the new pad clips from the hardware kit into the bracket by hand.
• Apply a thin film of brake caliper grease where the pad “ears” slide on the clips (metal-to-metal contact points only).
• Do not get grease on the pad friction material or rotor.

Step 8: Install the new pads

• Install the inner and outer pads into the bracket.
• If your pads include wear indicators, ensure they match the original orientation on each side.

Step 9: Reinstall the caliper and torque the slide pin bolt

• Swing the caliper back down over the new pads.
• Reinstall the lower slide pin bolt using a 14mm socket.
• Torque to 34 Nm (25 ft-lbs) using a torque wrench.

Step 10: If you removed the caliper bracket, torque the bracket bolts

• If you also removed the bracket (common when changing rotors), reinstall the bracket bolts using a 17mm socket.
• Torque to 107 Nm (79 ft-lbs) using a torque wrench.

Step 11: Reinstall the wheel and torque lug nuts

• Reinstall the wheel and hand-thread all lug nuts.
• Lower the car until the tire just touches the ground and won’t spin.
• Tighten lug nuts in a star pattern using a 21mm socket.
• Torque to 103 Nm (76 ft-lbs) using a torque wrench.

Step 12: Pump the brake pedal before driving

• With the engine off, press the brake pedal 8–15 times until it feels firm.
• Check the brake fluid level and top off with DOT 3 if needed.

---

✅ After Repair

• Start the car and hold the brake pedal; it should feel firm and not sink.
• Do a slow test in a safe area: confirm normal braking and no pulling/noises.
• Bed-in (break-in) the pads: make 6–10 medium stops from ~30–40 mph to ~5 mph, letting brakes cool a bit between stops.
• Recheck for leaks and recheck brake fluid level after your test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$150 (parts only)

You Save: $190-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
