🔧 Grand Cherokee - Front Brake Pad Replacement

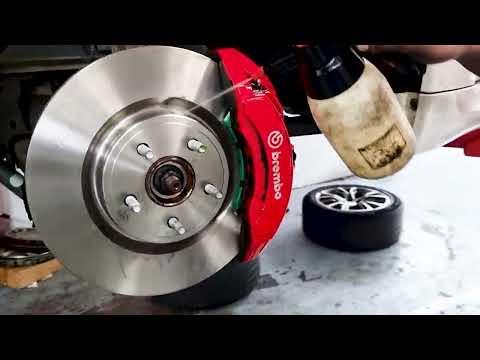

On your Grand Cherokee SRT8, the front brakes use Brembo fixed calipers. Pad replacement is mainly removing the pad retaining pins and spring clip, swapping pads, and pushing the caliper pistons back so the new thicker pads fit.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support the SUV with jack stands; never rely on a jack alone.
• 🧯 Brake dust is irritating—wear a mask and avoid blowing dust with compressed air.
• 🔥 Brakes get extremely hot—work only when rotors/calipers are fully cool.
• 🧤 Keep hands clear when pushing pistons back; go slow to avoid fluid overflow.
• 🔋 Battery disconnect is not required for front pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 22mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-250 ft-lbs range)
• Brass punch set (6mm)
• Small hammer
• Flat-blade screwdriver
• Brake piston spreader tool (specialty)
• Needle-nose pliers
• Wire brush
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set (Brembo-compatible) - Qty: 1
• Brake pad hardware kit (pins/spring clip) - Qty: 1
• High-temp brake lubricant - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and chock the rear wheels.
• Loosen the front lug nuts slightly using a 22mm socket and breaker bar before lifting.
• Open the hood and check the brake fluid level; if it’s near MAX, be ready to remove a little so it doesn’t overflow when pistons are pushed back.
• A brake piston spreader is a tool that pushes caliper pistons back evenly so the new pads fit.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front and remove the wheel

• Lift the front using a floor jack and support it with jack stands at the proper lift points.
• Remove the lug nuts with a 22mm socket and take the wheel off.

Step 2: Remove the pad retaining pins and spring clip

• Locate the two pad retaining pins and the center anti-rattle spring on the front of the Brembo caliper.
• If your pins have small retaining clips, remove them using needle-nose pliers.
• Use a brass punch (6mm) and small hammer to tap the pins out. Support the spring as the second pin comes out so it doesn’t snap free.
• Remove the anti-rattle spring and set it aside.
• Do one side at a time to stay organized.

Step 3: Remove the old pads

• Slide the pads out of the caliper by hand. If they’re stuck, use a flat-blade screwdriver gently to start them moving.
• Note pad orientation (inner vs outer) and how any shims sit.

Step 4: Push the caliper pistons back

• Place one old pad back against the pistons to protect them, then use a brake piston spreader tool (specialty) to push the pistons back slowly and evenly.
• Watch the brake fluid reservoir while compressing; use shop towels to catch any overflow.
• Stop when the pistons are fully seated and the new pads will fit easily.

Step 5: Clean and prep the pad contact points

• Clean pad slides/contact areas on the caliper using brake cleaner spray and shop towels.
• Lightly brush rust/debris from the pins using a wire brush.
• Apply a thin film of high-temp brake lubricant to pad backing plate contact points and pin contact areas (avoid pad friction material and rotor face).

Step 6: Install the new pads

• Slide the new inner and outer pads into place by hand.
• Make sure they sit flat and move smoothly in their guides.

Step 7: Reinstall the anti-rattle spring and pins

• Position the anti-rattle spring on the front of the caliper.
• Start both pins by hand, then tap them through using a brass punch (6mm) and small hammer.
• Reinstall any pin retaining clips using needle-nose pliers.

Step 8: Reinstall the wheel and torque lug nuts

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the SUV off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 176 Nm (130 ft-lbs).

---

✅ After Repair

• With the engine OFF, pump the brake pedal 10-15 times until it feels firm (this seats the pistons against the new pads).
• Check brake fluid level and top off only if needed.
• Do a careful test drive: start with low-speed stops, then verify no pulling, grinding, or warning lights.
• Pad bed-in (recommended for SRT Brembos): make 8-10 moderate stops from about 60 km/h to 15 km/h, driving a minute between stops; then avoid holding the pedal down at a complete stop while the brakes are hot.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 (parts + labor)

DIY Cost: ₹6,000-₹18,000 (parts only)

You Save: ₹6,000-₹7,000+ by doing it yourself!

Shop labor rates around Panipat vary but often run ₹800-₹1,500/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
