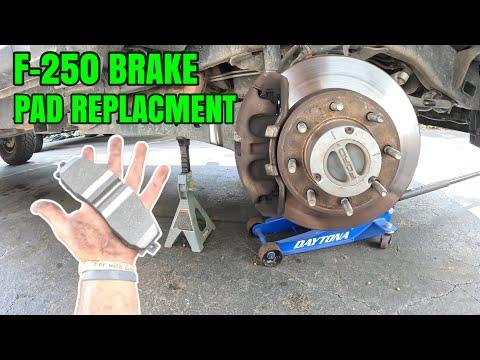

🔧 F-250 Super Duty - Front Brake Pad Replacement

On your F-250, front pads can be replaced without opening the brake hydraulic system, as long as you don’t disconnect the brake hose. The only “gotcha” is that Ford used different front caliper/bracket setups depending on SRW vs DRW (and brake package), which changes the exact bolt sizes and torque specs.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support the truck with jack stands; never rely on a jack alone.
• 🧤 Brakes make dust—wear a mask and avoid blowing dust with compressed air.
• 🔥 Rotors/calipers can be hot if you just drove—let them cool.
• 🔩 Don’t let the caliper hang by the brake hose; support it with a hanger.
• 🔋 Battery disconnect is not required for front pads on your F-250.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar (1/2-inch drive)
• Torque wrench (30-250 ft-lbs range)
• 21mm socket (lug nuts)
• Ratchet (3/8-inch drive)
• Socket set (8mm-24mm)
• C-clamp (6-inch)
• Brake caliper piston compressor (specialty)
• Flat-blade screwdriver
• Brake cleaner spray
• Wire brush
• Bungee cord

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake hardware kit (clips) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Loosen the front lug nuts 1/2 turn using a 21mm socket and breaker bar before lifting.
• Quick check (needed for exact bolt sizes + torque specs): Is your F-250 SRW (single rear wheel) or DRW (dually)? If you’re not sure, tell me if you have rear fender flares and two rear tires per side.
• If you can, upload a clear photo of the back side of the front caliper showing the bolts. That lets me match your exact caliper/bracket and give you the correct Ford torque specs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Place jack stands (rated 3-ton minimum) under the frame and lower the truck onto them.
• Remove the wheel using a 21mm socket and ratchet (3/8-inch drive).
• Turn the steering for more access.

Step 2: Open the brake fluid reservoir (control overflow)

• Open the hood and remove the brake fluid reservoir cap by hand.
• If the reservoir is very full, siphon a small amount out (do not spill).

Step 3: Remove the caliper and support it

• Remove the caliper guide/slide bolts using the correct socket set (8mm-24mm) and ratchet (3/8-inch drive). (Exact size depends on SRW/DRW setup.)
• Lift the caliper off the rotor. Use a flat-blade screwdriver to gently pry if needed.
• Hang the caliper from the suspension using a bungee cord.

Step 4: Remove old pads and hardware

• Pull the old pads out of the bracket by hand.
• Remove the pad abutment clips (hardware) from the bracket by hand or with a flat-blade screwdriver.

Step 5: Clean and service the bracket

• Spray the bracket pad contact areas with brake cleaner spray.
• Use a wire brush to clean rust where the new clips sit.
• Install the new hardware clips from the brake hardware kit (clips).

Step 6: Compress the caliper piston

• Place an old pad against the piston, then compress the piston slowly using a C-clamp (6-inch) or brake caliper piston compressor (specialty).
• Watch the brake fluid level while compressing; don’t let it overflow.

Step 7: Install the new pads

• Apply a thin film of brake caliper grease (silicone) to pad ears/contact points where they slide in the clips.
• Install the new pads into the bracket by hand.

Step 8: Reinstall the caliper

• Slide the caliper back over the new pads.
• Install and tighten the caliper bolts using the correct socket set (8mm-24mm) and a torque wrench (30-250 ft-lbs range).
• Torque spec note: I’ll give you the exact Ford torque values as soon as you confirm SRW vs DRW (and/or share a caliper photo), because the caliper/bracket setup determines the correct numbers.

Step 9: Reinstall wheel

• Reinstall the wheel and hand-start all lug nuts.
• Lower the truck and tighten lug nuts in a star pattern using a torque wrench (30-250 ft-lbs range).
• Torque to 224 Nm (165 ft-lbs)

---

✅ After Repair

• Before driving, pump the brake pedal slowly 10-15 times until it feels firm.
• Recheck the brake fluid level and reinstall the reservoir cap by hand.
• Test at low speed first. Confirm normal stopping and no pulling/noise.
• Check for leaks and recheck lug nut torque after 50-100 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
