🔧 Accord - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers up, swap the old pads for new ones, and compress the caliper piston so everything fits back together. This restores safe braking and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and support the car with jack stands—never rely on a jack alone.
• 🛑 Brake dust is harmful—avoid blowing it with air; use brake cleaner instead.
• 🛑 Do one side at a time so you can use the other side as a reference.
• 🛑 Do not press the brake pedal while a caliper is off the rotor.
• 🛑 Watch the brake fluid reservoir when compressing pistons—fluid can overflow.
• 🛑 No battery disconnect is required for front pads on your Accord.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-150 ft-lbs range)
• 12mm socket
• 17mm socket
• Large C-clamp (6" or larger)
• Flat-blade screwdriver
• Bungee cord
• Wire brush
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (clips/shims) - Qty: 1
• Brake caliper grease (silicone-based) - Qty: 1
• Brake cleaner - Qty: 1
• DOT 3 brake fluid - Qty: 1 bottle
• Front brake rotors - Replace in pairs - Qty: 2 (optional if worn/pulsating)

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Pop the hood and locate the brake fluid reservoir; keep the cap sitting on top (not fully tightened) so pressure can vent.
• Tip: Take a quick photo of each side before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and lift the front

• Use a 19mm socket with a breaker bar to loosen the front lug nuts 1/2 turn (don’t remove yet).
• Use a floor jack to lift the front at the proper jack point.
• Set the car down onto jack stands and give the car a gentle shake to confirm it’s stable.

Step 2: Remove the front wheels

• Use a 19mm socket and ratchet to remove the lug nuts, then remove both front wheels.

Step 3: Inspect the caliper and pads

• Turn the steering wheel for easier access to the caliper you’re working on.
• Look at the rotor surface for deep grooves, heavy rust ridges, or cracking. If it’s badly worn, replace rotors in pairs.

Step 4: Remove the caliper slide pin bolts

• Use a 12mm socket and ratchet to remove the two caliper slide pin bolts (top and bottom).
• If the caliper wants to spring outward, use a flat-blade screwdriver gently between pad and rotor to create a little space.

Step 5: Support the caliper (do not hang it by the hose)

• Lift the caliper off the rotor.
• Hang it from the suspension spring using a bungee cord. (A bungee cord is an elastic strap used to support the caliper safely.)

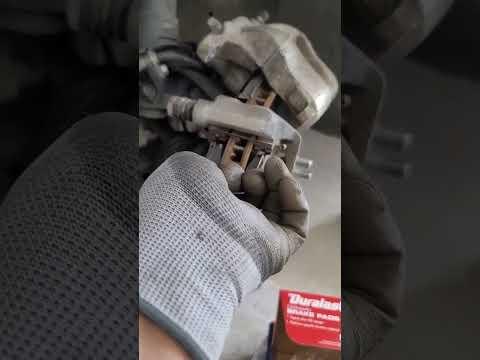

Step 6: Remove old pads and hardware clips

• Pull the inner and outer pads out by hand.
• Remove the stainless hardware clips from the bracket.
• Use brake cleaner spray and shop towels to clean the bracket where the clips sit.

Step 7: Check and service the slide pins

• Pull the slide pins out of the bracket by hand.
• Wipe them clean with shop towels.
• Apply a thin coat of brake caliper grease and reinstall the pins so they move smoothly. (Brake caliper grease is high-temp lube made for brake parts.)

Step 8: Install new hardware clips and pad grease

• Snap the new hardware clips into the bracket.
• Apply a very thin film of brake caliper grease to the pad “ears” where they slide in the clips.
• Do not get grease on the pad friction material or rotor face—clean with brake cleaner spray if you do.

Step 9: Compress the caliper piston

• Place one old brake pad against the piston face.
• Use a large C-clamp (6" or larger) to slowly press the piston back into the caliper until it bottoms out.
• Check the brake fluid reservoir as you compress; remove a little fluid if it’s close to overflowing.

Step 10: Install the new pads

• Install the new inner and outer pads into the bracket (match the original positions).
• Make sure the pads slide freely in the clips. If they bind, remove and re-clean the clip seats with brake cleaner spray and a wire brush.

Step 11: Reinstall the caliper and torque bolts

• Lower the caliper over the new pads.
• Thread the slide pin bolts in by hand first to avoid cross-threading.
• Use a 12mm socket and torque wrench to tighten the slide pin bolts: Torque to 34 Nm (25 ft-lbs).

Step 12: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the car off the jack stands using the floor jack.
• Use a 19mm socket and torque wrench to tighten lug nuts in a star pattern: Torque to 108 Nm (80 ft-lbs).

Step 13: Pump the brake pedal (critical)

• With the car on the ground, press the brake pedal slowly 10–15 times until it feels firm.
• This seats the pads against the rotors and brings the piston back out.

---

✅ After Repair

• Check brake fluid level and top off with DOT 3 brake fluid if needed.
• Start the engine and hold firm brake pressure for 15 seconds—pedal should not sink.
• Test-drive at low speed first. Confirm no pulling, grinding, or warning lights.
• Bed-in (break-in) the new pads: make 6–10 medium stops from ~50 km/h down to ~10 km/h, with short cool-down driving between stops. Avoid hard stops for the first 200 km.
• Tip: Light smell is normal at first.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹14,000 (parts + labor)

DIY Cost: ₹2,500-₹7,000 (parts only)

You Save: ₹3,500-₹7,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
