🔧 Tacoma - Front Brake Pad Replacement

This repair replaces the front disc brake pads on your Tacoma. The front pads create friction against the brake rotors to slow the truck, so replacing worn pads restores stopping power and helps prevent rotor damage.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface only. Never work under a vehicle supported only by a jack.
• ⚠️ Use jack stands. Jack stands are metal support stands that safely hold the vehicle after lifting.
• ⚠️ Brake dust can be harmful. Do not blow it with compressed air; use brake cleaner instead.
• ⚠️ Brake parts may be hot after driving. Let the brakes cool before starting.
• ⚠️ Do one side at a time so the other side can be used as a reference.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug nut socket
• 14mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive torque wrench

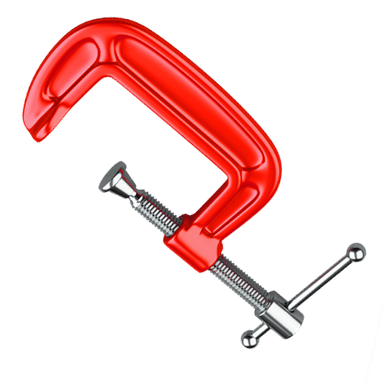

• C-clamp or disc brake pad spreader tool
• Flat-blade screwdriver
• Brake caliper hanger hook
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Brake cleaner spray
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake caliper slide pin grease - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park your Tacoma on level ground and shift the transmission into Park.
• Set the parking brake firmly.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir on the driver side of the engine bay.
• Check the brake fluid level before pushing the caliper piston back. If the reservoir is full, remove a small amount with a clean suction tool to prevent overflow.
• No infotainment menu, scan tool, EPB service mode, or battery disconnect is required.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 21mm lug nut socket and 3/8-inch drive ratchet to loosen the front wheel lug nuts about half a turn.
• Do not remove the lug nuts yet.
• Loosen before lifting the truck.

Step 2: Lift and Support the Front of the Truck

• Use a floor jack rated 3-ton minimum under the front center jacking point on the front crossmember.
• Raise the front of your Tacoma high enough for both front wheels to clear the ground.
• Place jack stands rated 3-ton minimum under the front frame rails.
• Slowly lower the truck onto the jack stands.
• Gently shake the truck by hand to confirm it is stable before working.

Step 3: Remove the Front Wheels

• Use the 21mm lug nut socket and 3/8-inch drive ratchet to remove the lug nuts.
• Remove both front wheels and place them flat under the frame area as an extra safety backup.

Step 4: Inspect the Brake Caliper and Pads

• Put on safety glasses and nitrile gloves.
• Use brake cleaner spray and shop rags to clean loose dust from the caliper area.
• Look at how the old pads and hardware clips are installed before removal.
• The caliper is the metal clamp that squeezes the brake pads against the rotor.

Step 5: Remove the Lower Caliper Bolt

• Use a 14mm socket and 3/8-inch drive ratchet to remove the lower brake caliper slide pin bolt.
• The slide pin bolt lets the caliper move slightly as the brakes apply and release.
• Keep the bolt in a safe spot.

Step 6: Swing the Caliper Up

• Use your hand to swing the caliper upward away from the brake pads.
• If it is stuck, gently use a flat-blade screwdriver to help lift it.
• Support the caliper with a brake caliper hanger hook.
• Do not let the caliper hang by the rubber brake hose.

Step 7: Remove the Old Brake Pads and Hardware

• Use your hands to slide the old inner and outer brake pads out of the caliper bracket.
• Use a flat-blade screwdriver to carefully remove the old pad hardware clips if they are stuck.
• Pay attention to clip position so the new hardware goes back the same way.

Step 8: Clean the Caliper Bracket

• Use brake cleaner spray and shop rags to clean the pad contact areas on the caliper bracket.
• Make sure the new pad hardware clips sit flat and fully seated.
• Do not get grease on the rotor or pad friction material.

Step 9: Install the New Brake Pad Hardware

• Use your hands to install the new front brake pad hardware kit clips into the caliper bracket.
• Confirm each clip snaps fully into place.
• Hardware prevents pad rattles and sticking.

Step 10: Compress the Caliper Piston

• Place one old brake pad against the caliper piston.
• Use a C-clamp or disc brake pad spreader tool to slowly push the caliper piston fully back into the caliper.
• The piston is the round metal part that pushes the inner brake pad.
• Watch the brake fluid reservoir while compressing the piston. Stop if fluid gets close to overflowing.

Step 11: Install the New Brake Pads

• Apply a very thin layer of brake caliper slide pin grease only to the pad ears where they touch the hardware clips.
• Use your hands to slide the new inner and outer brake pads into the caliper bracket.
• Make sure the friction material faces the rotor.
• Do not put grease on the pad face or rotor surface.

Step 12: Lower the Caliper and Install the Bolt

• Use your hand to swing the caliper back down over the new pads.
• If the caliper does not fit, use the C-clamp or disc brake pad spreader tool again to push the piston in farther.
• Install the lower caliper slide pin bolt by hand first to avoid cross-threading.
• Use a 14mm socket and 3/8-inch drive torque wrench to tighten the caliper slide pin bolt to Torque to 34 Nm (25 ft-lbs).

Step 13: Repeat on the Other Front Side

• Use the same tools and steps on the opposite front brake.
• Replace front brake pads in pairs only.
• Both sides must match for safe braking.

Step 14: Reinstall the Front Wheels

• Place each wheel back onto the hub by hand.
• Install the lug nuts by hand first.
• Use the 21mm lug nut socket and 3/8-inch drive ratchet to snug the lug nuts in a star pattern.

Step 15: Lower the Truck and Torque the Lug Nuts

• Use the floor jack rated 3-ton minimum to lift the truck slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the truck fully to the ground.
• Use a 21mm lug nut socket and 3/8-inch drive torque wrench to tighten the lug nuts in a star pattern to Torque to 113 Nm (83 ft-lbs).

Step 16: Pump the Brake Pedal

• Sit in the driver seat and press the brake pedal slowly several times until it feels firm.
• This moves the caliper pistons back out against the new pads.
• Do not drive until the brake pedal feels firm.

---

✅ After Repair

• Check the brake fluid level and top off only if needed with the correct brake fluid listed on the reservoir cap.
• Start your Tacoma and press the brake pedal again to confirm it stays firm.
• Check around both front calipers for leaks or loose parts.
• Test drive slowly in a safe area. Confirm the truck stops straight and quietly.
• Bed in the new brake pads by making several gentle stops from about 30 mph, allowing cooling time between stops.
• Avoid hard braking for the first 100-200 miles unless needed for safety.
• Recheck lug nut torque after 25-50 miles using the 21mm lug nut socket and 3/8-inch drive torque wrench to Torque to 113 Nm (83 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$380 (parts + labor)

DIY Cost: $45-$110 (parts only)

You Save: $175-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
