🔧 Civic - Front Brake Pad Replacement

You’ll remove the front wheels, swing the brake caliper out of the way, replace the old pads with new ones, then reassemble and torque everything correctly. This restores safe stopping power and prevents metal-to-metal rotor damage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and use jack stands—never rely on a jack alone.
• ⚠️ Do not press the brake pedal while the caliper is off the rotor.
• ⚠️ Brake dust is unhealthy—wear a mask and use brake cleaner, not compressed air.
• ⚠️ Watch the brake fluid level while compressing the piston; it can overflow.
• ⚠️ Keep grease and oil off pad friction surfaces and the rotor face.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• Breaker bar (1/2" drive)
• Torque wrench (20-150 ft-lbs range)
• 12mm socket
• 17mm socket
• Ratchet (3/8" drive)
• C-clamp (6" minimum) or disc brake piston tool (specialty)
• Flathead screwdriver
• Bungee cord
• Wire brush
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Brake caliper grease (high-temp silicone brake lubricant) - Qty: 1
• Brake cleaner - Qty: 1
• Front pad hardware kit (clips/shims) - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir; you’ll re-check the level later.
• Loosen the front lug nuts slightly before lifting (do not remove yet).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

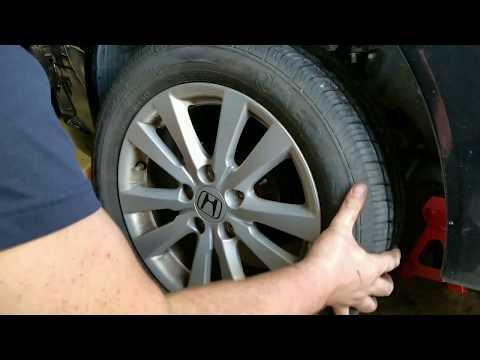

Step 1: Lift the front and remove the wheels

• Use a breaker bar (1/2" drive) with a 19mm socket to loosen lug nuts 1/2 turn.
• Lift the front with a floor jack and support the car with jack stands at the factory jack points.
• Remove lug nuts using a 19mm socket and take off both front wheels.

Step 2: Access the front brake caliper

• Turn the steering wheel to give yourself room (left side: turn wheel right; right side: turn wheel left).
• Visually inspect the rotor for deep grooves or heavy rust; if it’s badly worn, plan to replace rotors in pairs.

Step 3: Remove the caliper (and support it)

• Use a ratchet (3/8" drive) with a 12mm socket to remove the two caliper slide pin bolts.
• Lift the caliper off the bracket and suspend it with a bungee cord.
• Never let the caliper hang by the hose.
• A slide pin is the smooth bolt the caliper moves on.

Step 4: Remove old pads and hardware

• Remove the inner and outer pads from the bracket by hand; use a flathead screwdriver gently if they’re stuck.
• Remove any pad shims/clips from the bracket (note their positions so they go back the same way if reusing).
• Spray the bracket area with brake cleaner spray and wipe with shop towels.

Step 5: Compress the caliper piston

• Check the brake fluid reservoir level under the hood before compressing.
• Place an old pad against the piston face, then use a C-clamp (6" minimum) to slowly push the piston fully back.
• Stop if it feels extremely hard to compress; re-check alignment and don’t force it.
• The piston is the round part that pushes the pads.

Step 6: Clean and lubricate pad contact points

• Use a wire brush to clean rust from the bracket pad “tracks” where the clips sit.
• Install new hardware clips (recommended) and apply a thin film of brake caliper grease where pads slide on the clips.
• Only grease metal-to-metal sliding points.

Step 7: Install new pads

• Install the new inner and outer pads into the bracket by hand.
• Make sure they move freely in the clips; if they bind, re-clean with a wire brush and re-seat the clips.

Step 8: Reinstall the caliper and torque fasteners

• Lower the caliper over the new pads and align the slide pin bolt holes.
• Install the two slide pin bolts using a 12mm socket and snug them evenly.
• Final tighten with a torque wrench: Torque to 26 Nm (19 ft-lbs).
• If you removed the caliper bracket (only needed for rotor replacement), reinstall bracket bolts using a 17mm socket and torque wrench: Torque to 108 Nm (80 ft-lbs).

Step 9: Reinstall wheels and torque lug nuts

• Put the wheels back on and hand-thread lug nuts.
• Lower the car to the ground with the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench with a 19mm socket: Torque to 108 Nm (80 ft-lbs).

Step 10: Restore pedal feel

• With the engine OFF, press the brake pedal slowly 8–12 times until it feels firm.
• Check brake fluid level and top off only if needed (do not overfill).

---

✅ After Repair

• Start the engine and confirm the brake pedal stays firm.
• Do a slow test drive and verify no pulling, grinding, or abnormal noises.
• Pad break-in (bed-in): make 6–10 moderate stops from 30–40 mph with cooling time between stops; avoid hard panic stops for the first 200 miles.
• Re-check for fluid leaks and re-check lug nut torque after 25–50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$140 (parts only)

You Save: $110-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
