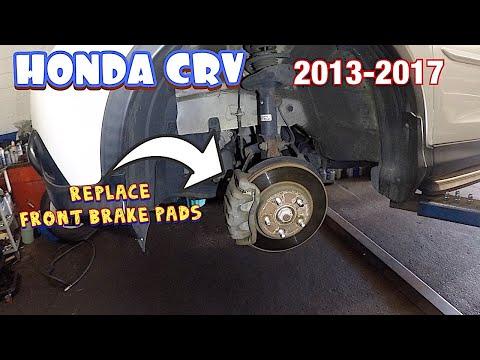

🔧 CR-V - Front Brake Pad Replacement

You’ll remove the front wheels, unbolt the brake calipers, swap the pads and hardware, then reassemble and bed in the new pads. This will restore proper stopping power and eliminate noise from worn pads.

Difficulty Level: Beginner-Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the CR-V with jack stands; never work under a vehicle held only by a jack.
• 🔥 Brakes and wheels can be very hot after driving; let the brakes cool completely before starting.
• 🧯 Wear safety glasses and mechanic gloves; brake dust and cleaner are irritating to skin and eyes.
• 🛞 Work on a flat, solid surface with the transmission in Park and the parking brake firmly set.
• 💧 Avoid getting oil or grease on the friction surfaces of the pads or rotors; it will reduce braking performance.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 2-ton or higher)
• 🧰 Jack stands (rated 2-ton or higher, Qty: 2)
• 🧰 Wheel chocks
• 🧰 Lug wrench 19mm
• 🧰 Socket wrench 3/8"
• 🧰 Socket 12mm
• 🧰 Socket 17mm
• 🧰 Breaker bar 1/2"
• 🧰 Torque wrench 3/8" or 1/2" drive
• 🧰 C-clamp 6" or disc brake caliper compression tool (specialty)
• 🧰 Flathead screwdriver medium
• 🧰 Wire brush small
• 🧰 Bungee cord
• 🧰 Shop rags
• 🧰 Safety glasses
• 🧰 Mechanic gloves
• 🧰 Disposable mask
• 🧰 Drip pan

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front brake pad set (left and right) - Qty: 1 set (replace in pairs)
• 🔩 Front brake pad hardware kit (abutment clips and shims) - Qty: 1 set
• 🔩 High-temperature brake grease - Qty: 1 tube
• 🔩 Brake cleaner spray - Qty: 1-2 cans
• 🔩 Anti-seize compound (for wheel hub) - Qty: 1 small tube
• 🔩 DOT 3 brake fluid - Qty: 1 small bottle (for top-off)
• 🔩 Replacement caliper slide pin boots (optional) - Qty: 1 set
• 🔩 New caliper bracket bolts (optional, if originals are badly corroded) - Qty: 4

---

📋 Before You Begin

• Park the CR-V on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels to prevent any movement.
• Loosen the front wheel lug nuts 1/2 turn with the 19mm lug wrench before lifting the vehicle.
• Locate the front jacking point: centered under the front subframe crossmember, just behind the front bumper.
• Plan to do one side at a time so you can look at the other side as a reference if you get confused.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the CR-V

• Use the 19mm lug wrench to loosen (but not remove) the front wheel lug nuts on both sides.
• Position the floor jack under the front center jacking point and raise the front until both front wheels are off the ground.
• Place jack stands under the left and right front pinch welds (just behind each front wheel) and slowly lower the CR-V onto the stands.
• Gently rock vehicle to confirm it is stable.

Step 2: Remove the front wheels

• Use the 19mm lug wrench to remove the front wheel lug nuts completely.
• Remove both front wheels and set them aside, face down to avoid scratching.

Step 3: Identify the brake components

• Look at the brake assembly: the caliper is the part that squeezes the rotor; the caliper bracket is the heavier metal piece the caliper mounts to; the rotor is the large metal disc behind the wheel.
• Note the two smaller caliper slide pin bolts (12mm head) and the two larger caliper bracket bolts (17mm head) behind the rotor.

Step 4: Compress the caliper piston slightly

• Place a shop rag over the brake fluid reservoir cap under the hood and loosen the cap slightly to allow fluid level changes.
• On the first front caliper, insert a worn pad or a flat piece of wood between the outer pad and the caliper.
• Use the C-clamp to gently press the pad inward and move the caliper piston back slightly; do not fully compress yet, just relieve tension.
• Move slowly; stop if you feel strong resistance.

Step 5: Remove the caliper

• Use the 12mm socket and socket wrench to remove the two caliper slide pin bolts on the back of the caliper.
• Carefully slide the caliper off the rotor and pads; you may need to wiggle it slightly.
• Support the caliper with a bungee cord hung from the suspension spring; do not let it hang by the brake hose.

Step 6: Remove the old pads and hardware

• Pull the old brake pads out of the caliper bracket by hand; note their orientation and where any shims are located.
• Remove the metal clips (abutment clips) from the caliper bracket using the flathead screwdriver if they are tight.
• Inspect the rotor surface for deep grooves or cracks; if badly worn, plan to replace or resurface rotors.

Step 7: Clean the caliper bracket and hardware area

• Place the drip pan under the brake assembly.
• Spray the caliper bracket and rotor surface with brake cleaner to remove dust and dirt.
• Use the wire brush to clean the pad support areas on the caliper bracket where the clips sit, removing rust and debris.
• Wipe clean with shop rags.

Step 8: Install new hardware clips

• Snap the new abutment clips from the hardware kit into place on the caliper bracket by hand; they should sit flat and secure.
• Apply a thin layer of brake grease to the surfaces of the clips where the pads will slide (not on the rotor or pad friction surfaces).
• Use very little grease; a thin film is enough.

Step 9: Inspect and lubricate caliper slide pins

• Gently pull each caliper slide pin out of the bracket by hand; note which pin goes where.
• Wipe old grease off each pin with shop rags and brake cleaner.
• Inspect the rubber boots for cracks; replace boots if damaged.
• Apply fresh brake grease to each pin and reinstall into the bracket, making sure they slide smoothly.

Step 10: Fully compress the caliper piston

• Place an old pad against the caliper piston face inside the caliper.
• Use the C-clamp to slowly compress the piston fully into the caliper housing until it stops.
• Check the brake fluid reservoir under the hood; if the level is near the top edge, remove a small amount with a clean syringe or rag to prevent overflow.

Step 11: Install the new brake pads

• Identify inner and outer pads from the new set; the inner pad often has a small metal wear indicator tab.
• Install the inner pad into the bracket first, pressing it into the new clips until it seats firmly.
• Install the outer pad the same way on the outside of the rotor.
• If your pads come with shims, attach them per the pad maker’s instructions before installing.

Step 12: Reinstall the caliper over the new pads

• Remove the caliper from the bungee and position it over the new pads and rotor.
• Align the caliper slide pin holes with the threaded holes in the caliper bracket.
• Install the two 12mm caliper slide pin bolts by hand to avoid cross-threading.
• Use the 12mm socket and socket wrench to tighten the slide pin bolts, then torque them with a torque wrench to 34 Nm (25 ft-lbs).

Step 13: Repeat on the other front wheel

• Repeat Steps 5 through 12 on the other front brake assembly.
• Do not mix old and new pads left-right.

Step 14: Reinstall wheels

• Apply a very thin smear of anti-seize compound to the wheel hub face if desired (avoid studs and rotor braking surface).
• Install each wheel back onto the hub and hand-thread all lug nuts using the 19mm lug wrench.
• Snug the lug nuts in a crisscross pattern with the wheel just touching the ground.

Step 15: Lower the CR-V and torque the lug nuts

• Use the floor jack to lift the CR-V slightly, remove the jack stands, then lower the vehicle fully to the ground.
• Use the torque wrench with 19mm socket to torque the lug nuts in a star pattern to 108 Nm (80 ft-lbs).

Step 16: Final checks and pedal pump

• Tighten the brake fluid reservoir cap under the hood.
• Sit in the driver seat and slowly pump the brake pedal several times until it feels firm; this seats the pads against the rotors.
• Check under the front of the CR-V for any obvious leaks or loose parts.

---

✅ After Repair

• With the engine running, press the brake pedal firmly several times; confirm a solid pedal feel.
• Perform a low-speed test drive in an open, safe area: make a few gentle stops from 20–30 km/h to verify normal braking and no pulling, noises, or vibration.
• Bed in the new pads: make 8–10 medium stops from about 40–50 km/h down to 10 km/h, allowing a bit of driving time between stops so the brakes do not overheat.
• After the test drive, recheck the brake fluid level and top off with DOT 3 if needed (do not overfill).
• After 1–2 days of driving, recheck lug nut torque to 108 Nm (80 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $280-$450 (parts + labor)

DIY Cost: $70-$140 (parts only)

You Save: $210-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
