🔧 Grand Cherokee - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers out of the way, swap the old pads for new ones, then reassemble and torque everything correctly. New pads restore safe stopping power and help prevent rotor damage when the old pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: your Grand Cherokee has the common sliding front calipers (most Limited trims do).

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat surface and use jack stands; never rely on a jack alone.
• ⚠️ Brake dust is harmful—avoid blowing it with air; use brake cleaner.
• ⚠️ Don’t press the brake pedal while a caliper is off the rotor.
• ⚠️ Support the caliper with a hanger; don’t let it hang by the brake hose.
• ⚠️ If brake fluid rises near “MAX” after compressing pistons, remove a little with a suction tool to prevent overflow.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 22mm socket
• Breaker bar 1/2"
• Ratchet 3/8"
• 13mm socket
• 18mm wrench
• Torque wrench 20–250 ft-lbs
• C-clamp 6"
• Flathead screwdriver
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Crack the front lug nuts loose before lifting: use 22mm socket and breaker bar (about 1/4 turn).
• Open the hood and locate the brake fluid reservoir; keep the cap on, but check the fluid level so you can watch for overflow later.
• “Caliper” is the clamp that squeezes the pads.
• A “torque wrench” tightens bolts to an exact spec.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper front jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum) under solid frame/support points.
• Give the vehicle a gentle shake to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts with a 22mm socket and breaker bar 1/2".
• Remove both front wheels and set them aside.

Step 3: Remove the caliper guide pin bolts

• Turn the steering slightly if needed for access.
• On the back of the caliper, remove the two guide pin bolts using a 13mm socket and ratchet 3/8".
• If the slide pin wants to spin, hold it with an 18mm wrench while loosening the 13mm socket.
• Slide pins are the caliper’s moving “rails”.

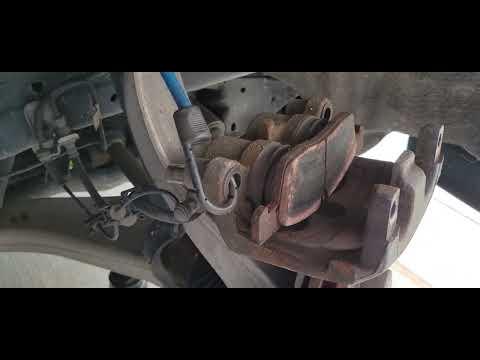

Step 4: Swing the caliper up and support it

• Use a flathead screwdriver to gently pry the caliper outward a little (this helps create space).
• Lift the caliper off the pads/rotor.
• Hang the caliper with a bungee cord so the brake hose is not stretched.

Step 5: Remove old pads and hardware

• Pull the old inner and outer pads out of the bracket by hand.
• Remove the stainless pad clips (hardware) from the bracket.
• Clean the pad landing areas on the bracket with brake cleaner spray and a wire brush.

Step 6: Compress the caliper piston

• Place one old pad against the piston face to protect it.
• Use a C-clamp 6" to slowly push the piston fully back into the caliper.
• Check the brake fluid reservoir as you compress; stop if it’s about to overflow.
• Go slow to avoid damaging seals.

Step 7: Install new pad hardware and grease contact points

• Snap the new hardware clips into the bracket by hand (same positions as removed).
• Apply a thin film of brake caliper grease (silicone) on the pad ears where they slide on the clips.
• Do not get grease on the pad friction material or rotor.

Step 8: Install the new pads

• Install the new inner and outer pads into the bracket, making sure they slide freely.
• If a pad feels stuck, remove it and re-clean the bracket/clip contact area with wire brush and brake cleaner spray.

Step 9: Reinstall the caliper and torque the guide pin bolts

• Lower the caliper over the new pads.
• Install the two guide pin bolts by hand first to avoid cross-threading.
• Tighten using a 13mm socket and ratchet 3/8".
• Torque to 38 Nm (28 ft-lbs) using a torque wrench 20–250 ft-lbs.
• If needed, hold the pin with an 18mm wrench while torquing.

Step 10: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread lug nuts.
• Lower the vehicle off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern with a torque wrench 20–250 ft-lbs: Torque to 176 Nm (130 ft-lbs).

---

✅ After Repair

• With the engine off, pump the brake pedal 10–15 times until it feels firm (this seats the pads).
• Check brake fluid level and top off only if needed.
• Start the engine and confirm the pedal stays firm.
• Test at low speed first; verify no pulling, grinding, or warning lights.
• Pad break-in (safe area): make 6–10 moderate stops from ~30 mph to 5 mph, with short cool-down driving between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$150 (parts only)

You Save: $190-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
