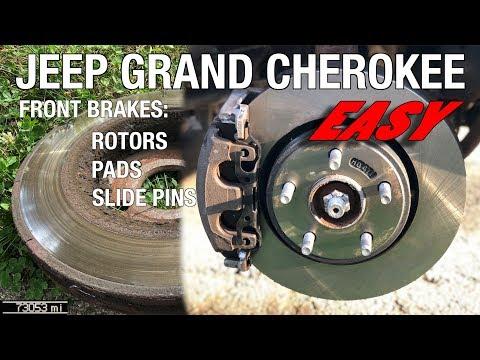

🔧 Grand Cherokee - Front Brake Pad Replacement

This repair replaces the front brake pads on your Grand Cherokee. Brake pads wear down over time, and replacing them before they get too thin protects the rotors and keeps braking smooth and safe.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface and never rely on a jack alone.
• ⚠️ Always support your Grand Cherokee with jack stands before putting hands near the wheels or brakes.
• ⚠️ Brake dust can be harmful. Do not blow it off with compressed air; use brake cleaner.
• ⚠️ Front brakes get very hot after driving. Let them cool fully before starting.
• ⚠️ Keep brake fluid off paint. It can damage the finish quickly.
• ⚠️ Battery disconnect is not required for front brake pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• 22mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• 13mm socket
• 15mm wrench
• Torque wrench 20-150 ft-lb range
• C-clamp 6-inch
• Flat-blade screwdriver
• Brake caliper hanger hook
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake caliper slide pin grease - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park your Grand Cherokee on level ground.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir.
• Brake fluid reservoir means the small tank that holds brake fluid for the brake system.
• Remove the reservoir cap loosely before pushing the caliper piston back in.
• Place shop towels around the reservoir in case fluid rises while compressing the caliper piston.
• If the brake fluid level is already at MAX, remove a small amount with a clean suction tool before compressing the pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 22mm lug nut socket and 1/2-inch drive breaker bar to loosen each front wheel lug nut about half a turn.
• Do this while the tires are still touching the ground so the wheels do not spin.
• Do not remove the lug nuts yet.

Step 2: Raise and Support the Front

• Use a floor jack rated 3-ton minimum to lift the front of your Grand Cherokee at the front center jacking point or one side at a time at the approved front lift points.
• Place jack stands rated 3-ton minimum under the approved front support points.
• Lower the vehicle gently onto the jack stands.
• Use your hands to lightly shake the vehicle to confirm it is stable before working.

Step 3: Remove the Front Wheels

• Use a 22mm lug nut socket and 1/2-inch drive ratchet to remove the loosened lug nuts.
• Remove both front wheels and set them flat on the ground.
• Slide a wheel under the frame for backup safety.

Step 4: Inspect the Brake Assembly

• Put on safety glasses and nitrile gloves.
• Use brake cleaner spray and shop towels to clean loose dust from the caliper area.
• The caliper is the clamp-shaped part that squeezes the brake pads against the rotor.
• The rotor is the round metal disc behind the wheel.
• Look for heavy rotor grooves, cracks, blue heat spots, or brake fluid leaks before continuing.

Step 5: Remove the Lower Caliper Bolt

• Use a 15mm wrench to hold the slide pin steady if it spins.
• Use a 13mm socket and 1/2-inch drive ratchet to remove the lower caliper bolt.
• A slide pin is a smooth pin that lets the caliper move slightly as the pads wear.
• Set the bolt aside where it will stay clean.

Step 6: Swing the Caliper Up

• Use a flat-blade screwdriver carefully between the old pad and rotor to create slight clearance.
• Swing the caliper upward from the bottom.
• Use a brake caliper hanger hook to support the caliper from the suspension.
• Do not let the caliper hang by the rubber brake hose.

Step 7: Remove the Old Brake Pads

• Use your hands to slide the inner and outer brake pads out of the caliper bracket.
• If they are stuck, use a flat-blade screwdriver to gently pry them loose.
• Note how the old pads and metal hardware clips are installed before removing them.
• Hardware clips are small stainless clips that help the brake pads slide smoothly.

Step 8: Replace the Pad Hardware

• Use a flat-blade screwdriver to remove the old brake pad hardware clips from the caliper bracket.
• Spray the bracket contact areas with brake cleaner spray and wipe with shop towels.
• Install the new front brake pad hardware kit clips in the same positions as the old ones.
• Apply a light coat of brake caliper slide pin grease to the pad contact points on the hardware clips.
• Do not get grease on the rotor or pad friction material.

Step 9: Compress the Caliper Piston

• Place one old brake pad against the caliper piston.
• Use a C-clamp 6-inch to slowly press the piston fully back into the caliper.
• The caliper piston is the round metal part that pushes the inner brake pad.
• Go slowly and check the brake fluid reservoir so it does not overflow.
• If fluid rises too high, stop and remove excess fluid safely with a clean suction tool.

Step 10: Install the New Brake Pads

• Install the new front brake pad set into the caliper bracket by hand.
• Make sure the friction material faces the rotor.
• Make sure the pads sit flat in the new hardware clips and slide slightly by hand.
• If forced, something is misaligned.

Step 11: Reinstall the Caliper

• Remove the brake caliper hanger hook.
• Swing the caliper down over the new brake pads.
• If it does not fit, use the C-clamp 6-inch again to compress the piston a little farther.
• Install the lower caliper bolt by hand first to avoid cross-threading.
• Use a 15mm wrench to hold the slide pin if needed.
• Use a 13mm socket and torque wrench 20-150 ft-lb range to tighten the caliper bolt to Torque to 32 Nm (24 ft-lbs).

Step 12: Repeat on the Other Side

• Repeat Steps 4 through 11 on the opposite front brake.
• Always replace front brake pads in pairs so braking stays even.

Step 13: Reinstall the Front Wheels

• Place each front wheel back onto the hub by hand.
• Install the lug nuts by hand first.
• Use a 22mm lug nut socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.
• A star pattern means tightening across the wheel instead of going in a circle.

Step 14: Lower the Vehicle and Torque Lug Nuts

• Use the floor jack rated 3-ton minimum to lift the front slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower your Grand Cherokee until the tires touch the ground.
• Use a 22mm lug nut socket and torque wrench 20-150 ft-lb range to tighten the lug nuts in a star pattern to Torque to 176 Nm (130 ft-lbs).

Step 15: Pump the Brake Pedal

• Sit in the driver seat and press the brake pedal slowly several times.
• The pedal may go low at first, then become firm.
• Do not drive until the brake pedal feels firm.
• Check the brake fluid reservoir and set the level between MIN and MAX.
• Reinstall the brake fluid reservoir cap securely by hand.

---

✅ After Repair

• Start your Grand Cherokee and press the brake pedal again to confirm it feels firm.
• Check around both front calipers for leaks or loose parts.
• Test drive slowly in a safe area before normal driving.
• Perform several gentle stops from low speed to confirm smooth braking.
• Avoid hard braking for the first 200 miles unless needed for safety.
• Recheck front lug nut torque after the first short drive: Torque to 176 Nm (130 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $55-$140 (parts only)

You Save: $195-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
