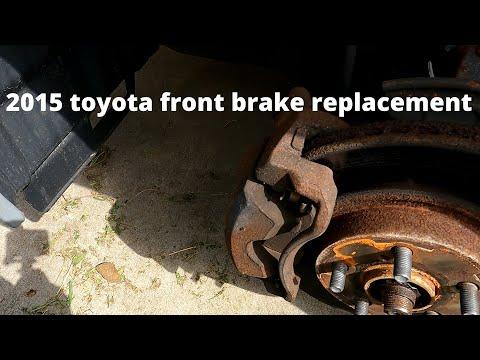

🔧 Corolla - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers out of the way, replace the old pads (and the pad hardware), then reassemble everything with the correct torque. New pads restore stopping power and prevent rotor damage from worn-down friction material.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: Stock front disc brakes with standard (non-Brembo) calipers.

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and chock the rear wheels.
• 🛑 Support the car with jack stands before you go under or remove wheels.
• 🛑 Do not press the brake pedal with the caliper removed.
• 🛑 Brake dust is unhealthy—use brake cleaner, not compressed air.
• 🛑 Keep brake fluid off paint; it can damage the finish.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 14mm socket
• 17mm socket
• Torque wrench (10-150 ft-lbs range)
• C-clamp (6" minimum)
• Flathead screwdriver
• Bungee cord
• Wire brush
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (clips/shims) - Qty: 1
• Brake caliper grease (silicone-based) - Qty: 1
• Brake cleaner - Qty: 1
• Front brake rotors - Qty: 2 Optional if worn/pulsation

---

📋 Before You Begin

• 🅿️ Put the shifter in Park and set the parking brake.
• 🧱 Chock both rear wheels.
• 🧴 Open the hood and check the brake fluid reservoir level; it may rise when you compress the caliper pistons.
• 🧼 Lay out tools and parts; keep grease off pad friction surfaces.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and raise the front

• Use a 21mm socket with a breaker bar to loosen the front lug nuts 1/2 turn (don’t remove yet).
• Lift the front with a floor jack at the proper front jacking point, then set the car onto jack stands.
• Remove the lug nuts using a 21mm socket and take both front wheels off.

Step 2: Access the front brake caliper

• Turn the steering wheel to give yourself more room (turn left to work on the right side, and vice versa).
• Look at the caliper: it sits over the rotor and holds the brake pads.

Step 3: Remove the caliper slide pin bolts

• Use a 14mm socket and ratchet to remove the two caliper slide pin bolts.
• Lift the caliper off the bracket. Use a bungee cord to hang it from the strut spring. A bungee cord is a stretchy strap that supports the caliper so the brake hose isn’t strained.
• Do not let the caliper hang by the rubber brake hose.

Step 4: Remove old pads and hardware

• Pull the old pads out of the bracket by hand.
• Remove the old stainless pad clips (hardware) from the bracket using a flathead screwdriver.
• Use brake cleaner spray and shop towels to clean the bracket area.

Step 5: Clean and prep the pad bracket

• Use a wire brush to clean rust from where the new pad clips sit (the “pad lands”).
• Install the new pad clips from the hardware kit by pressing them into place by hand.
• Apply a very thin film of brake caliper grease where the pad ears slide on the clips (not on the rotor or pad friction material).
• Thin grease only—too much attracts dirt.

Step 6: Compress the caliper piston

• Place one old brake pad against the piston face, then use a C-clamp (6") to slowly push the piston back into the caliper. A C-clamp is a screw clamp that presses the piston in evenly.
• Go slowly and watch the brake fluid reservoir under the hood; don’t let it overflow.

Step 7: Install the new pads

• Install the new inner and outer pads into the bracket by hand.
• If your pad set includes shims, install them exactly as the pad instructions show.

Step 8: Reinstall the caliper

• Set the caliper back over the new pads and align the slide pin bolt holes.
• Thread the slide pin bolts in by hand first (prevents cross-threading).
• Tighten the slide pin bolts using a 14mm socket and torque wrench: Torque to 34 Nm (25 ft-lbs).

Step 9: Repeat on the other front wheel

• Repeat Steps 2-8 on the opposite side.
• Do both sides before pumping the pedal.

Step 10: Reinstall wheels and torque lug nuts

• Reinstall both wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• 🦶 With the engine OFF, slowly press the brake pedal 10-15 times until it feels firm (this seats the pistons against the new pads).
• 🧴 Check brake fluid level and top off only if needed.
• 🔍 Look around both calipers for leaks and make sure the brake hose isn’t twisted.
• 🚗 Test drive at low speed first. Confirm normal braking and no pulling/noise.
• 🔥 Pad bedding (recommended): make 6-10 moderate stops from ~30 mph to ~5 mph, letting brakes cool a bit between stops. Avoid hard stops for the first 150-200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
