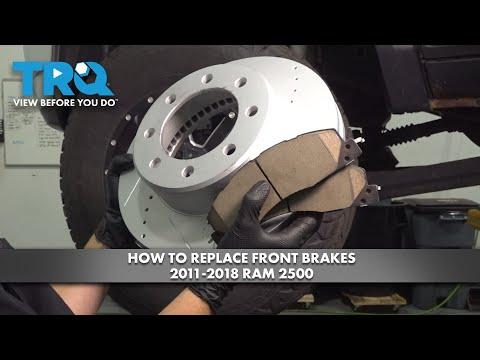

🔧 2500 - Front Brake Pad Replacement

You’ll remove the front wheels, swing the caliper out of the way, swap the old pads for new ones, then compress the caliper piston so everything fits back together. This restores safe stopping power and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🛑 Support your 2500 with jack stands before working underneath.
• 🧯 Brakes create dust—wear a mask and use brake cleaner, not compressed air.
• 🔥 Brakes get hot—let everything cool before starting.
• 🧴 Brake fluid can damage paint—wipe spills immediately.
• 🔒 Do not press the brake pedal with a caliper removed.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench or 22mm socket
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• 13mm socket
• 21mm socket
• Breaker bar (1/2" drive)
• Torque wrench (30–250 ft-lbs range)
• C-clamp (6" minimum)
• Large flathead screwdriver
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Crack the front lug nuts loose 1/2 turn using a lug wrench or 22mm socket before lifting.
• Open the hood and check the brake fluid level; if it’s near “MAX,” be ready to remove a little fluid (pads going in will raise the level).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front of your 2500 at the front jacking point.
• Set it down onto jack stands (rated 3-ton minimum).
• Give the truck a firm shake to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts using a lug wrench or 22mm socket.
• Remove the wheels and set them aside.

Step 3: Locate the caliper and remove the slide pin bolts

• Turn the steering to give yourself room (left side: turn wheel right; right side: turn wheel left).
• Find the two caliper slide pin bolts on the back of the caliper.
• Remove them using a 13mm socket and ratchet (3/8" drive).
• Tip: Keep bolts in order—top and bottom.

Step 4: Support the caliper (do not hang it)

• Lift the caliper off the bracket.
• Hang it from the suspension spring using a bungee cord.
• This protects the brake hose from damage (the hose should not carry the caliper’s weight).

Step 5: Remove the old pads and hardware

• Slide the inner and outer pads out of the bracket by hand.
• Remove the stainless pad clips (hardware) from the bracket.
• Clean the bracket “pad landing” areas using a wire brush and brake cleaner spray.

Step 6: Compress the caliper piston

• Place one old brake pad against the piston face.
• Use a C-clamp (6" minimum) to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir while compressing; fluid level will rise.
• Tip: Go slow to avoid overflowing fluid.

Step 7: Install new hardware and pads

• Install the new stainless pad clips into the bracket by hand.
• Apply a thin film of brake caliper grease (silicone) where the pad ears slide on the clips (not on friction material).
• Install the new inner and outer pads into the bracket.

Step 8: Reinstall the caliper

• Lower the caliper over the new pads.
• Reinstall the slide pin bolts using a 13mm socket and ratchet (3/8" drive).
• Tighten using a torque wrench (30–250 ft-lbs range): Torque to 47 Nm (35 ft-lbs).

Step 9: Repeat on the other front wheel

• Repeat Steps 3–8 on the other side.
• Replace pads on both sides together (left and right) for even braking.

Step 10: Reinstall wheels and torque lug nuts

• Install the wheels and hand-tighten the lug nuts.
• Lower the truck using a floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using a torque wrench (30–250 ft-lbs range): Torque to 176 Nm (130 ft-lbs).

---

✅ After Repair

• With the engine off, slowly pump the brake pedal 10–15 times until it feels firm.
• Check brake fluid level and top off only if needed.
• Start the engine and confirm the pedal feels normal (it may drop slightly with power assist).
• Do a careful test drive at low speed and verify no pulling, grinding, or warning lights.
• Pad bedding: make 6–10 gentle stops from 30–40 mph with cool-down between stops; avoid hard stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$200 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
