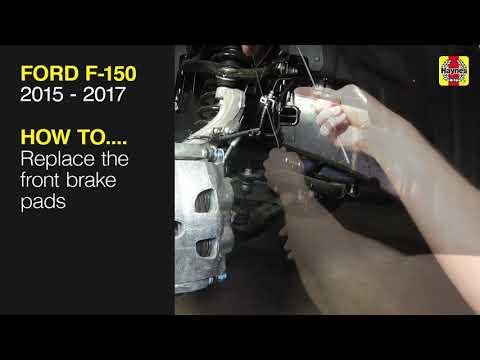

🔧 Front Brake Pads - Replacement

Replacing the front brake pads restores braking performance and helps protect the rotors from wear. On your F-150, this is a straightforward front-end brake service, but you need to support the truck safely and keep the caliper from hanging by the hose.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work on level ground and chock the rear wheels before lifting the truck.
• Support the truck with jack stands; never rely on the floor jack alone.
• Do not press the brake pedal with the caliper removed.
• Do not let the caliper hang by the brake hose.
• Brake dust can be harmful; use brake cleaner and avoid compressed air.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for truck weight)
• Wheel chocks
• 21mm lug wrench or socket
• 15mm socket
• Ratchet
• Breaker bar
• Torque wrench
• C-clamp
• Brake caliper hanger hook (specialty)
• Flat trim tool
• Wire brush
• Brake cleaner
• Brake caliper slide pin grease
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Brake hardware kit - Qty: 1
• Brake cleaner - Qty: 1
• Brake caliper slide pin grease - Qty: 1

---

📋 Before You Begin

• Park on a flat surface and set the parking brake.
• Chock the rear wheels.
• Loosen the front lug nuts slightly before lifting the truck.
• Plan to replace pads in pairs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack to lift the front of the truck at the proper lift point.
• Install jack stands under the frame and lower the truck onto them.
• Remove both front wheels with a 21mm lug wrench or socket.

Step 2: Remove the caliper

• Use a 15mm socket and ratchet to remove the caliper slide pin bolts.
• Lift the caliper off the bracket carefully.
• Hang the caliper with a brake caliper hanger hook (specialty) or bungee cord.
• Never let the caliper hang by the hose.

Step 3: Remove the old pads and hardware

• Pull the old brake pads out of the bracket by hand or with a flat trim tool.
• Remove the old hardware clips from the caliper bracket.
• Inspect the rotor for deep grooves, heavy rust, or cracking.

Step 4: Retract the caliper piston

• Use a C-clamp to slowly push the caliper piston fully back into the caliper.
• Watch the brake fluid reservoir while compressing the piston.
• Go slow to protect the seals.

Step 5: Clean and prep the bracket

• Use a wire brush to clean rust from the pad contact points.
• Spray the bracket with brake cleaner and let it dry.
• Apply a light coat of brake caliper slide pin grease to the slide pins and contact points.

Step 6: Install the new hardware and pads

• Install the new hardware clips into the caliper bracket.
• Place the new brake pads into the bracket in the same orientation as the old ones.
• Make sure the pads move freely in the clips.

Step 7: Reinstall the caliper

• Slide the caliper over the new pads and bracket.
• Install the caliper slide pin bolts by hand first.
• Tighten the bolts with a 15mm socket and ratchet.
• Torque to 31 Nm (23 ft-lbs).

Step 8: Reinstall the wheels

• Put the wheels back on and start the lug nuts by hand.
• Lower the truck to the ground.
• Tighten the lug nuts in a star pattern with a 21mm lug wrench or socket.
• Torque to 204 Nm (150 ft-lbs).

Step 9: Repeat on the other side

• Replace the pads on the other front wheel using the same steps.
• Always replace front brake pads in pairs.

---

✅ After Repair

• Press the brake pedal several times before moving the truck.
• Check the brake fluid level and top off if needed.
• Test the brakes at low speed in a safe area.
• Listen for any rubbing or clunking noises.
• Recheck lug nut torque after a short drive.
• Break in the new pads with gentle stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $80-$180 (parts only)

You Save: $170-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
