🔧 Outback - Front Brake Pad Replacement

You’ll be removing the front caliper, swapping the old pads for new ones, and compressing the caliper pistons so everything fits back over the rotor. This restores safe braking and prevents pad-to-metal grinding that can ruin your rotors.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the Outback on jack stands; never work under a jack only.
• ⚠️ Brake dust is harmful—avoid blowing it with compressed air; use brake cleaner.
• ⚠️ Brake fluid can damage paint—wipe spills immediately.
• ⚠️ Do not let the caliper hang by the hose—support it with a hook or bungee.
• 🔋 Battery disconnect is not required for front pad replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• Breaker bar (1/2" drive)
• Torque wrench (10–200 Nm range)
• 14mm socket
• 17mm socket
• Ratchet (3/8" drive)
• C-clamp (6")
• Brake caliper piston compressor (specialty)
• Flat-blade screwdriver
• Wire brush
• Brake cleaner spray
• Bungee cord
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Brake pad hardware/clip kit - Qty: 1
• Brake caliper grease (silicone-based) - Qty: 1
• Brake parts cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels using wheel chocks.
• Loosen the front lug nuts 1/2 turn with a 19mm socket and breaker bar (1/2" drive) before lifting.
• Open the hood and locate the brake fluid reservoir; keep the cap on, but check the fluid level so it doesn’t overflow when pistons are pushed back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove lug nuts with a 19mm socket and take off both front wheels.

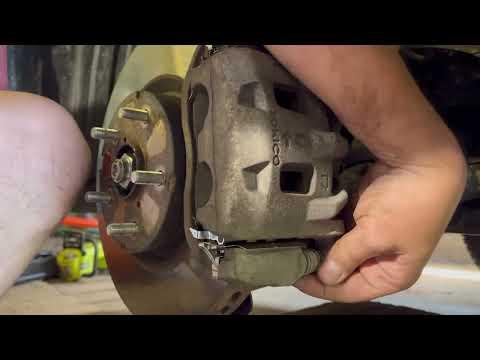

Step 2: Remove the caliper (not the bracket yet)

• Turn the steering wheel to give yourself room to work on the caliper.
• Remove the two caliper slide pin bolts using a 14mm socket and ratchet (3/8" drive).
• Carefully lift the caliper off the pads/rotor.
• Hang the caliper from the strut spring using a bungee cord. Never let it hang by the hose.
• Torque to 27 Nm (20 ft-lbs) (when reinstalling slide pin bolts).

Step 3: Remove old pads and hardware

• Slide the old inner and outer pads out of the caliper bracket by hand; use a flat-blade screwdriver gently if they’re stuck.
• Remove the stainless pad clips (hardware) from the bracket.

Step 4: Clean and prep the bracket and slide pins

• Spray the bracket pad lands with brake cleaner spray and scrub with a wire brush until smooth.
• Pull the slide pins out (they are the two “guide pins” the caliper moves on), wipe clean, and apply a thin coat of brake caliper grease (silicone-based).
• Reinsert the slide pins and make sure they move smoothly by hand.

Step 5: Install new hardware and pads

• Install new pad clips/hardware onto the bracket by hand (they should snap fully into place).
• Apply a thin film of brake caliper grease (silicone-based) to the pad ears where they touch the clips. Keep grease off pad friction material.
• Install the new pads into the bracket (inner and outer). If one pad has a wear indicator “squealer,” it typically goes on the inside pad—match your old pad position.

Step 6: Compress the caliper pistons

• Place an old pad against the pistons, then compress evenly using a brake caliper piston compressor (specialty) or C-clamp (6").
• Go slowly and watch the brake fluid reservoir level under the hood.
• If fluid rises near the top, stop and remove a small amount (do not overfill).

Step 7: Reinstall the caliper

• Lower the caliper over the new pads and align it with the slide pin holes.
• Install the slide pin bolts using a 14mm socket and ratchet (3/8" drive).
• Torque to 27 Nm (20 ft-lbs).

Step 8: Reinstall wheels and torque lug nuts

• Reinstall both wheels and hand-thread lug nuts.
• Lower the Outback to the ground using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (10–200 Nm range) and 19mm socket.
• Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• With the engine OFF, press the brake pedal slowly 10–15 times until it feels firm (this seats the pistons against the new pads).
• Check brake fluid level and top off only if needed (do not overfill).
• Test drive at low speed first. Confirm no pulling, grinding, or warning lights.
• Brake pad break-in: do 8–10 moderate stops from ~40 mph to ~10 mph, with cool-down driving between stops (avoid hard panic stops for the first 150–200 miles).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$150 (parts only)

You Save: $100-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
