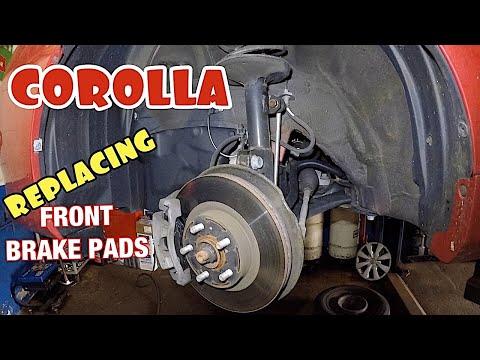

🔧 Corolla - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers up, swap the old pads for new ones, then reassemble with the correct torque. This restores safe braking and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat surface and support your Corolla with jack stands—never rely on a jack alone.
• ⚠️ Don’t breathe brake dust; use brake cleaner and let parts dry before touching.
• ⚠️ Brake fluid can damage paint—wipe spills immediately.
• ⚠️ Do not press the brake pedal while the caliper is off the rotor.
• ⚠️ If brake fluid level is near “MAX,” it may rise when compressing pistons—watch for overflow.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum) - pair
• Wheel chocks
• 21mm lug nut socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (20-200 Nm range)
• 14mm socket
• 17mm socket
• C-clamp (6")
• Brake piston compressor tool (specialty)
• Small flathead screwdriver
• Wire brush
• Bungee cord
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front disc brake hardware kit (pad clips/shims) - Qty: 1
• Brake caliper slide pin grease (silicone) - Qty: 1
• Brake parts cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the shifter in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir; keep the cap sitting loosely on top (don’t remove it completely).
• “Compressing the piston” pushes fluid back up.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front lug nuts

• Use a 21mm lug nut socket and ratchet to loosen (do not remove) the front lug nuts about 1/2 turn.

Step 2: Lift and support the front of the car

• Lift the front with a floor jack (rated 2-ton minimum).
• Set the car onto jack stands (rated 2-ton minimum) - pair at the proper support points.
• Give the car a gentle push to confirm it’s stable.

Step 3: Remove the front wheels

• Remove the lug nuts using the 21mm lug nut socket and ratchet.
• Remove both front wheels and set them aside.

Step 4: Remove the caliper slide pin bolts

• Turn the steering wheel to give yourself more room at the caliper you’re working on.
• Locate the two caliper slide pin bolts on the back of the caliper.
• Use a 14mm socket and ratchet to remove the slide pin bolts.
• Slide pins are the caliper’s “hinges.”

Step 5: Swing the caliper up and support it

• Carefully lift/swing the caliper off the pads and rotor.
• Hang the caliper from the strut spring using a bungee cord so the brake hose isn’t stretched.
• Do not let the caliper hang by the rubber hose.

Step 6: Remove old pads and hardware

• Pull the old pads out of the bracket by hand.
• Remove the pad clips/hardware from the bracket using a small flathead screwdriver if needed.
• Spray the bracket contact areas with brake cleaner spray and wipe with shop towels.

Step 7: Clean the bracket pad “rails”

• Use a wire brush to clean rust from where the pad clips sit (the “rails”).
• Spray again with brake cleaner spray and wipe clean.
• Clean rails help pads slide smoothly.

Step 8: Check and grease the slide pins

• Pull each slide pin out one at a time (by hand) and wipe it clean with shop towels.
• Apply a thin coat of brake caliper slide pin grease (silicone) and reinstall each pin fully.
• If a pin is stuck or torn boots are found, stop—those parts must be repaired before continuing.

Step 9: Install new pad hardware (clips)

• Snap the new clips from the front disc brake hardware kit onto the bracket.
• Make sure each clip is fully seated and not crooked.

Step 10: Compress the caliper piston

• Place an old pad against the piston face.
• Use a C-clamp (6") (or brake piston compressor tool (specialty)) to slowly push the piston back into the caliper.
• Go slowly and watch the brake fluid reservoir for overflow.
• Slow compression prevents seal damage.

Step 11: Install the new pads

• Install the new pads into the bracket (they should slide freely in the new clips).
• If your pad set includes shims, install them as provided with the pad kit.

Step 12: Reinstall the caliper

• Lower the caliper over the new pads and rotor.
• Reinstall the slide pin bolts using a 14mm socket and ratchet.
• Tighten with a torque wrench: Torque to 34 Nm (25 ft-lbs).

Step 13: Repeat on the other front side

• Repeat Steps 4 through 12 on the other front wheel.
• Replace pads on both sides as a set for even braking.

Step 14: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the car off the stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Pump the brake pedal 10-15 times until it feels firm (this seats the pistons against the new pads).
• Check brake fluid level and top off only if needed (use the correct DOT brake fluid listed on the reservoir cap).
• Do a slow test drive and confirm no pulling, grinding, or warning lights.
• Brake pad bed-in (typical): make 6-10 moderate stops from 30-40 mph, letting brakes cool a bit between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
