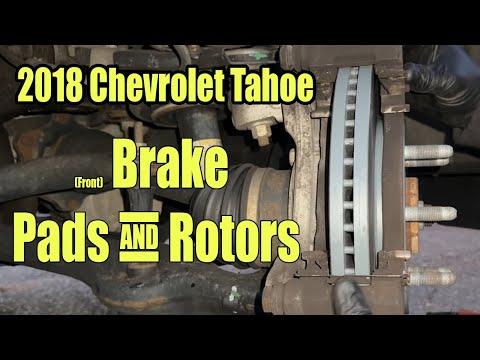

🔧 Tahoe - Front Brake Pad Replacement

Replacing the front brake pads restores stopping power and prevents rotor damage when pads get thin. On your Tahoe, this is a straightforward caliper-and-bracket setup, but there are a couple brake-package variations that can change bolt sizes.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Tahoe on jack stands; never rely on a floor jack.
• 🧱 Chock the rear wheels and keep the transmission in Park.
• 🔥 Brakes can be hot; let them cool before starting.
• 😷 Avoid breathing brake dust; use brake cleaner, not compressed air.
• 🧪 Brake fluid can overflow when compressing pistons; check the reservoir level first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar (1/2")
• Torque wrench (30-250 ft-lbs range)
• 22mm socket
• Ratchet (1/2")
• Socket set: 13mm, 15mm, 18mm, 21mm
• C-clamp (6" minimum)
• Flathead screwdriver
• Bungee cord
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake lubricant (silicone brake grease) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Pop the hood and locate the brake fluid reservoir; if it’s near the “MAX” line, remove a little fluid to prevent overflow when compressing caliper pistons.
• Loosen the front lug nuts slightly before lifting (do not remove them yet).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Use the floor jack (rated 3-ton minimum) to lift one front corner at a time at the correct jack point.
• Set the Tahoe down onto jack stands (rated 3-ton minimum).
• Remove lug nuts with a 22mm socket and breaker bar (1/2"), then remove the wheel.

Step 2: Locate the caliper and remove the caliper bolts

• Turn the steering wheel to give yourself room (left for right side, right for left side).
• On the back of the caliper, remove the two caliper guide/slide bolts using a 13mm socket or 15mm socket (use the one that fits your bolts).
• Lift the caliper off the bracket.
• Support the caliper using a bungee cord so it doesn’t hang by the brake hose.

Step 3: Remove the old pads and hardware

• Slide the old pads out of the caliper bracket by hand; use a flathead screwdriver gently if they’re stuck.
• Remove the stainless pad clips (hardware) from the bracket.
• Clean the bracket pad lands (where clips sit) using brake cleaner and a wire brush.
• Tip: Clean metal-to-metal contact points only.

Step 4: Compress the caliper pistons

• Place one old pad against the pistons, then use a C-clamp (6" minimum) to slowly press the pistons back into the caliper.
• Go slowly and keep the pistons straight to avoid binding.
• Re-check brake fluid level as you compress; stop if the reservoir is about to overflow.
• Tip: Slow compression protects seals.

Step 5: Install new pad hardware and pads

• Install the new abutment clips from the front brake pad hardware kit onto the bracket by hand.
• Apply a thin film of brake lubricant (silicone brake grease) where the pad ears slide on the clips.
• Install the new pads into the bracket (inner and outer).

Step 6: Reinstall the caliper and torque the bolts

• Lower the caliper over the new pads.
• Install the caliper guide/slide bolts using a ratchet (1/2") and the correct socket from your socket set: 13mm, 15mm, 18mm, 21mm.
• Torque to 74 Nm (55 ft-lbs) for the front caliper guide/slide bolts.
• If you removed the caliper bracket (only needed on some setups): reinstall bracket bolts using an 18mm socket or 21mm socket (whichever fits) and Torque to 221 Nm (163 ft-lbs).

Step 7: Reinstall wheels and torque lug nuts

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the Tahoe off the jack stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (30-250 ft-lbs range) and 22mm socket.
• Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• Before driving, pump the brake pedal slowly 10-15 times until it feels firm (this seats the pistons).
• Check the brake fluid level and top off only if needed (use the correct DOT brake fluid listed on the reservoir cap).
• Do a low-speed test in a safe area: confirm normal pedal feel and no pulling/noises.
• Bed-in procedure: make 8-10 moderate stops from ~30 mph to ~5 mph, allowing a little cooling between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
