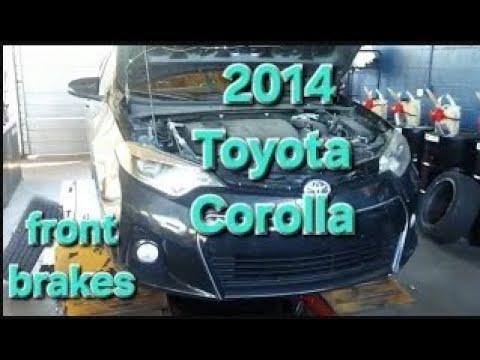

🔧 Corolla - Front Brake Pad Replacement

You’ll remove the front wheels, swing the brake caliper out of the way, replace the pad set (and hardware), then compress the caliper piston so everything fits back together. This restores safe stopping power and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: OEM-style front disc brakes; torque specs are typical for this Corolla.

---

⚠️ Safety & Precautions

• Work on level ground and use jack stands—never rely on a floor jack alone.
• Brake dust is harmful. Use brake cleaner—do not blow dust with compressed air.
• Brakes get hot. Let everything cool before touching calipers/rotors.
• Do not press the brake pedal while the caliper is off the rotor.
• Watch the brake fluid level when compressing the piston; it can overflow.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 14mm socket
• 17mm socket
• Torque wrench (10-150 ft-lbs range)
• Large C-clamp
• Flathead screwdriver
• Needle-nose pliers
• Wire brush
• Bungee cord
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle
• Front brake rotors - Replace in pairs - Qty: 2 (if worn or pulsating)

---

📋 Before You Begin

• Park on level ground, put the shifter in P, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front lug nuts 1/2 turn with a 21mm socket before lifting.
• Open the hood and locate the brake fluid reservoir; keep the cap sitting loosely on top (do not remove it completely).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front and remove the wheels

• Lift the front with a floor jack at the front center jack point, then support with jack stands under the proper front support points.
• Remove lug nuts using a 21mm socket and ratchet, then remove both front wheels.

Step 2: Locate the caliper and remove the slide pin bolts

• Turn the steering so you can see the caliper clearly (turn the hub by hand).
• Remove the two caliper slide pin bolts using a 14mm socket and ratchet.
• Torque to 34 Nm (25 ft-lbs) during reassembly.
• Slide pins are the caliper’s moving bolts.

Step 3: Swing the caliper up and support it

• Carefully pivot the caliper upward off the pads.
• Hang the caliper from the strut spring with a bungee cord. Do not let it hang by the brake hose.

Step 4: Remove old pads and hardware

• Pull the inner and outer pads out by hand. Use a flathead screwdriver gently if they’re stuck.
• Remove the stainless pad clips (abutment clips) from the bracket using a flathead screwdriver or needle-nose pliers.
• Abutment clips are the metal “tracks” pads slide on.

Step 5: Clean the bracket and install new hardware

• Clean the pad resting areas on the bracket using a wire brush.
• Spray and wipe using brake cleaner spray (wear safety glasses).
• Install the new abutment clips by hand; make sure they fully seat.

Step 6: Check and lubricate the slide pins

• Pull each slide pin out (one at a time) and wipe it clean.
• Apply a thin coat of brake caliper grease (silicone) to the smooth pin surface, then reinstall it.
• Do not get grease on the pad friction material or rotor.

Step 7: Compress the caliper piston

• Place one old pad against the piston face, then use a large C-clamp to slowly press the piston back into the caliper.
• Check the brake fluid reservoir while compressing; remove excess fluid if it gets too high (use a clean towel).
• Go slow to avoid damaging the master cylinder.

Step 8: Install the new pads

• Install the new inner and outer pads into the new clips by hand.
• Apply a very thin layer of brake caliper grease (silicone) only on pad backing/contact points where the pad touches the clips (not on the friction surface).

Step 9: Reinstall the caliper

• Lower the caliper back over the new pads.
• Install the slide pin bolts using a 14mm socket and ratchet.
• Tighten with a torque wrench: Torque to 34 Nm (25 ft-lbs).

Step 10: Reinstall wheels and torque lug nuts

• Reinstall both wheels and hand-thread the lug nuts.
• Lower the car to the ground using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Before driving, pump the brake pedal 8-12 times until it feels firm (this seats the pads against the rotors).
• Check brake fluid level and top off with DOT 3 if needed.
• Do a slow test in a safe area: confirm normal pedal feel, straight braking, and no grinding.
• Pad bed-in (break-in): make 6-10 moderate stops from ~30 mph to 5 mph, with light driving between stops to cool.
• Recheck for leaks, and listen for abnormal noises over the next day.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $50-$140 (parts only)

You Save: $200-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
