🔧 Sequoia - Front Brake Pad Replacement

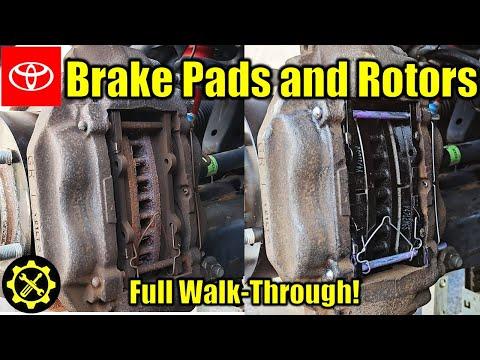

On your Sequoia, the front brake pads sit in a fixed 4-piston caliper. You’ll remove the pad retaining pins and spring, swap the pads, then push the pistons back so the caliper can accept the thicker new pads.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support the SUV with jack stands; never rely on a jack alone.
• 🧤 Brake dust is irritating—wear gloves and safety glasses; use brake cleaner, not compressed air.
• 🔥 Brakes can be extremely hot; let everything cool before starting.
• 🚫 Do not press the brake pedal while pads are out.
• 🧴 Brake fluid can overflow when pistons are pushed back—watch the reservoir level.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20–200 ft-lbs range)
• Flathead screwdriver
• Punch set (3/16"–1/4")
• Small hammer
• C-clamp (6" or larger)
• Brake piston spreader (specialty)
• Needle-nose pliers
• Wire brush
• Bungee cord
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (shims/clips, if included for your pad type) - Qty: 1
• Brake caliper grease (silicone-based) - Qty: 1
• Brake cleaner - Qty: 1
• DOT 3 brake fluid - Qty: 1 (small bottle, top-off as needed)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Crack the front lug nuts loose 1/2 turn using a 21mm socket and breaker bar (while the tires are still on the ground).
• Open the hood and locate the brake fluid reservoir; leave the cap on but be ready to check the level during piston compression.
• A “punch” is a metal pin you tap with a hammer.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Set the frame onto jack stands (rated 3-ton minimum) and give the SUV a firm shake to confirm it’s stable.

Step 2: Remove the front wheels

• Remove the lug nuts using a 21mm socket and breaker bar.
• Pull the wheels off and set them aside.

Step 3: Remove the pad retaining pins and spring

• Locate the two pad retaining pins on the front of the caliper and the anti-rattle spring between them.
• Use a punch set (3/16"–1/4") and small hammer to tap the pins out. Catch the pins as they slide free.
• Remove the anti-rattle spring using a flathead screwdriver if needed.
• Take a photo before removal.

Step 4: Remove the old brake pads

• Slide the pads out of the caliper by hand.
• If they’re stuck, gently pry with a flathead screwdriver (do not gouge the rotor).

Step 5: Retract (push back) the caliper pistons

• Check the brake fluid level under the hood. If it’s near “MAX,” remove a little with shop towels (do not spill on paint).
• Place one old pad against the pistons to spread the force.
• Use a C-clamp (6" or larger) or brake piston spreader (specialty) to slowly press the pistons back until they’re fully seated.
• Because this is a 4-piston caliper, press evenly—work one side, then the other, until all pistons are fully retracted.
• Wipe and clean the pad contact areas using brake cleaner spray and shop towels.

Step 6: Install any shims/clips (if your pads use them) and grease contact points

• Clean pad abutment/contact areas with a wire brush.
• Apply a thin film of brake caliper grease (silicone-based) to pad ears/contact points and shim contact points (do not get grease on pad friction material or rotor).

Step 7: Install the new brake pads

• Slide the new pads into position by hand.
• Make sure the pads sit squarely and can move slightly (they should not be forced in).

Step 8: Reinstall the anti-rattle spring and retaining pins

• Position the spring correctly and start both pins by hand.
• Tap the pins fully into place using the punch set (3/16"–1/4") and small hammer.
• If the pin ends use a retaining clip/cotter style (varies by hardware kit), install it using needle-nose pliers.

Step 9: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the SUV enough that the tires touch the ground and won’t spin.
• Tighten lug nuts in a star pattern using a 1/2" drive torque wrench: Torque to 131 Nm (97 ft-lbs).

---

✅ After Repair

• With the engine OFF, pump the brake pedal slowly 10–15 times until it feels firm (this seats the pads against the rotors).
• Re-check brake fluid level and top off with DOT 3 brake fluid if needed.
• Start the engine and confirm the pedal feels normal.
• Do a careful low-speed test stop in a safe area. Listen for abnormal scraping or clunks.
• Bed-in gently for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$650 (parts + labor)

DIY Cost: $80–$220 (parts only)

You Save: $270–$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–2.5 hours.

---
