🔧 RAV4 - Front Brake Pad Replacement

Replacing your front brake pads restores safe stopping power and prevents rotor damage when pads get thin. You’ll remove the front caliper, swap the pads (and hardware if included), then reassemble and pump the brake pedal to seat everything.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🛑 Support the RAV4 on jack stands before working under/near the wheel.
• 🛑 Do not press the brake pedal with a caliper removed (the piston can pop out).
• 🛑 Brake dust is harmful—use brake cleaner, not compressed air.
• 🛑 Brake fluid may rise when compressing the piston—watch the reservoir to prevent overflow.
• 🛑 Keep grease off pad friction surfaces and rotors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-200 ft-lbs range)
• 14mm socket
• 17mm socket
• Flathead screwdriver
• C-clamp (6" minimum)
• Bungee cord
• Wire brush
• Brake parts cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (clips/shims) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1

---

📋 Before You Begin

• Park on level ground and place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir. Do not remove it yet; just be ready to monitor the fluid level.
• Loosen the front wheel lug nuts slightly before lifting (do not remove them yet).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and lift the front

• Use a 21mm socket with a breaker bar to loosen the lug nuts about 1/2 turn.

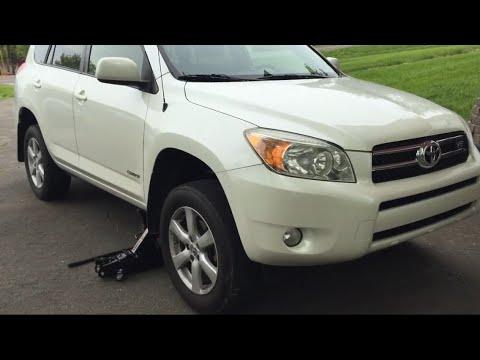

• Lift the front with a floor jack and support the vehicle with jack stands at safe lift points.
• Remove the lug nuts with a 21mm socket and remove the wheel.

Step 2: Locate the caliper and remove the lower slide pin bolt

• Turn the steering to give yourself room to work.
• Use a 14mm socket and 3/8" drive ratchet to remove the lower caliper slide pin bolt.
• Pivot the caliper upward like a hinge.
• Support the caliper with a bungee cord so it doesn’t hang by the brake hose.
• Slide pin bolts are the smaller caliper bolts.

Step 3: Remove the old pads and hardware

• Pull the old inner and outer pads out by hand. Use a flathead screwdriver gently if they’re stuck.
• Remove the old pad clips/hardware from the caliper bracket.
• Spray the bracket contact areas with brake parts cleaner spray and wipe with shop towels.
• Lightly clean rust from the pad “rails” with a wire brush so the new pads slide freely.

Step 4: Compress the caliper piston

• Place one old brake pad against the piston face.
• Use a C-clamp (6" minimum) to slowly push the piston back into the caliper until it’s fully seated.
• Check the brake fluid reservoir level and remove a little fluid if it’s close to overflowing.
• Go slow to avoid damaging seals.

Step 5: Install new hardware and pads

• Install the new pad clips/hardware into the caliper bracket by hand.
• Apply a very thin film of brake caliper grease where the pad ears slide on the clips.
• Install the new pads into the bracket in the same positions as the old ones (inner pad on the inside, outer pad on the outside).

Step 6: Reinstall the caliper and torque fasteners

• Pivot the caliper back down over the new pads.
• Reinstall the lower slide pin bolt using a 14mm socket and 3/8" drive ratchet.
• Torque to 34 Nm (25 ft-lbs) using a torque wrench (20-200 ft-lbs range).

Step 7: Repeat on the other front wheel

• Repeat Steps 1–6 on the other front side. Replace pads on both sides as a pair.

Step 8: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the vehicle from the jack stands using the floor jack.
• Torque lug nuts in a star pattern with a 21mm socket and torque wrench: Torque to 103 Nm (76 ft-lbs).

Step 9: Pump the brake pedal and final checks

• Before driving, press the brake pedal firmly 10–15 times until it feels normal (not soft).
• Check brake fluid level and top off if needed.
• Visually inspect for leaks and make sure the brake hose is not twisted.

---

✅ After Repair

• Test at low speed first. Confirm the pedal feels firm and the RAV4 stops straight.
• Perform a gentle bed-in: 6–10 moderate stops from ~30 mph down to ~5 mph, allowing short cool-down between stops.
• If you hear constant grinding or the wheel is hard to turn, stop and recheck pad fit and caliper movement.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
