🔧 Wrangler - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake caliper off the rotor, swap in new pads, then reassemble and pump the brake pedal to seat everything. This restores safe stopping and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and chock the rear wheels before lifting.
• ⚠️ Support the front axle with jack stands—never rely on a floor jack alone.
• ⚠️ Do not press the brake pedal with the caliper removed.
• ⚠️ Do not let the caliper hang by the brake hose; it can damage the hose.
• ⚠️ Brake dust is harmful—avoid blowing it out with compressed air.
• ⚠️ If brake fluid nears the top of the reservoir, it may overflow when compressing pistons.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lbs range)
• 13mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Flat-blade screwdriver
• C-clamp (6")
• Brake caliper hanger hook
• Wire brush
• Small bungee cord
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift into 1st gear, and set the parking brake.
• 🧱 Place wheel chocks behind both rear tires.
• 🧴 Open the hood and check the brake fluid reservoir level; if it’s very full, remove a small amount with a shop towel so it won’t overflow when you compress the caliper piston.
• 🧰 Lay out new pads and hardware; keep left/right parts organized.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front lug nuts

• Use a 21mm socket with a 1/2" drive breaker bar to loosen (do not remove) the lug nuts while the tires are still on the ground.

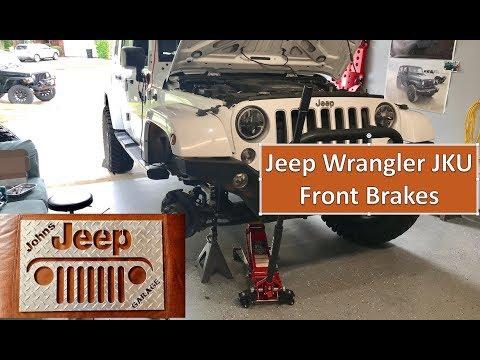

Step 2: Lift and support the front of the Jeep

• Use a floor jack (rated 3-ton minimum) to lift the front axle.
• Place jack stands (rated 3-ton minimum) under the axle tubes and lower onto them.
• Give the Jeep a firm shake to confirm it’s stable.

Step 3: Remove the front wheels

• Remove the lug nuts with the 21mm socket and 1/2" drive breaker bar.
• Remove both front wheels and set them aside.

Step 4: Remove the front caliper bolts

• Turn the steering wheel to give yourself room to work.
• Use a 13mm socket with a 3/8" drive ratchet and 6" extension (3/8" drive) to remove the two caliper guide/slide pin bolts.
• Keep bolts and parts in a small pile.

Step 5: Lift the caliper off and support it

• Use a flat-blade screwdriver to gently pry the caliper outward if it’s tight.
• Lift the caliper off the rotor and hang it using a brake caliper hanger hook or small bungee cord.
• Do not let the caliper hang by the rubber brake hose.
• A hanger hook is a metal hook that supports the caliper.

Step 6: Remove the old brake pads and hardware

• Pull the old pads straight out of the caliper bracket by hand.
• Remove the stainless pad clips (hardware) from the bracket.
• Use a wire brush to clean the pad clip “shelves” where the clips sit.
• Spray the area with brake cleaner and wipe with shop towels.

Step 7: Install new pad hardware and grease contact points

• Snap the new stainless clips from the front brake pad hardware kit into the bracket by hand.
• Apply a thin film of brake caliper grease (silicone) where the pad ears slide on the clips.
• Do not get grease on the pad friction material or rotor face.
• “Pad ears” are the small metal tabs on pad ends.

Step 8: Compress the caliper piston

• Place an old pad against the piston face (to protect it).
• Use a C-clamp (6") to slowly press the piston back into the caliper until it bottoms out.
• Watch the brake fluid reservoir while compressing; stop if it starts to overflow.
• Go slow to avoid damaging seals.

Step 9: Install the new brake pads

• Install the new inner and outer pads into the bracket by hand.
• Make sure the pads slide freely in the clips (no binding).

Step 10: Reinstall the caliper

• Lower the caliper back over the new pads and rotor.
• If it won’t fit, re-check piston compression using the C-clamp (6").
• Install the caliper guide/slide pin bolts by hand first to avoid cross-threading.
• Tighten with the 13mm socket, 3/8" drive ratchet, then final tighten with the 1/2" drive torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall both front wheels and hand-thread lug nuts.
• Lower the Jeep off the stands using the floor jack (rated 3-ton minimum).
• Use a 1/2" drive torque wrench (20-150 ft-lbs range) and 21mm socket to torque lug nuts in a star pattern: Torque to 130 Nm (96 ft-lbs).

Step 12: Pump the brake pedal before driving

• With the engine off, press the brake pedal repeatedly until it feels firm.
• This seats the pads against the rotors and restores normal pedal height.

---

✅ After Repair

• 🧪 Check brake fluid level; top off only if needed (use the correct DOT brake fluid listed on the reservoir cap).
• 🔍 Look around both front calipers for leaks or twisted hoses.
• 🛣️ Road test at low speed first; verify straight stops and no grinding noises.
• 🛑 Brake pad break-in: make 8-10 moderate stops from 40 to 10 mph, allowing 30-60 seconds between stops to cool slightly.
• 🔧 Re-torque lug nuts after ~50 miles using the 21mm socket and torque wrench: Torque to 130 Nm (96 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
