🔧 Focus - Front Brake Pad Replacement

You’ll remove the front wheel, swing the front brake caliper out of the way, swap the old pads for new ones, and compress the caliper piston so everything fits back together. This restores safe braking and prevents metal-to-metal rotor damage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Focus with jack stands before working under/around the wheel.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ Brake fluid can overflow when compressing the piston—check the reservoir often and clean spills immediately (it damages paint).
• ⚠️ Don’t let the caliper hang by the hose—always support it with a hanger.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench
• Torque wrench (20–200 ft-lbs range)
• Socket set (metric)
• 7mm hex bit socket
• 15mm socket
• Breaker bar
• Ratchet
• Flat-blade screwdriver
• C-clamp (6 inch)
• Brake caliper hanger (specialty)
• Wire brush
• Brake cleaner
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Brake pad hardware kit (clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, put the transmission in 1st gear, and set the parking brake.
• 🧱 Chock the rear wheels with wheel chocks.
• 🧴 Open the hood and locate the brake fluid reservoir. Keep the cap on, but check the fluid level before and during piston compression.
• 🛞 Break the front lug nuts loose 1/4 turn before lifting the car.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the car

• Use a lug wrench to loosen the front lug nuts about 1/4 turn.
• Lift the front using a floor jack at the proper front jacking point.
• Set the car down onto jack stands and give the car a gentle shake to confirm it’s stable.

Step 2: Remove the front wheel

• Remove the lug nuts with a lug wrench.
• Remove the wheel and slide it under the car as an extra safety backup.

Step 3: Access the caliper and pads

• Turn the steering wheel to give yourself more room (turn left for the right side, and right for the left side).
• Use a flat-blade screwdriver to gently pry the caliper outward a tiny bit to create slack. Go slow; don’t damage the rotor.

Step 4: Remove the caliper slide pin bolts

• On the back of the caliper, remove the two slide pin bolts using a 7mm hex bit socket with a ratchet.
• Set the bolts aside where they won’t get dirty.

Step 5: Support the caliper (do not hang it by the hose)

• Lift the caliper off the bracket by hand.
• Hang the caliper from the strut spring using a brake caliper hanger (specialty). (A caliper hanger is a hooked strap/wire that safely supports the caliper.)

Step 6: Remove the old pads and hardware

• Pull the inner and outer brake pads out of the bracket by hand.
• Remove the old pad clips (hardware) from the bracket. Use a flat-blade screwdriver if needed.

Step 7: Clean the bracket and slide points

• Spray the bracket pad-contact areas with brake cleaner and wipe with shop rags.
• Use a wire brush to clean rust where the new clips will sit. Clean metal helps prevent pad sticking.

Step 8: Install new pad hardware (clips)

• Snap the new clips from the hardware kit into the bracket by hand.
• Make sure each clip is fully seated and flat.

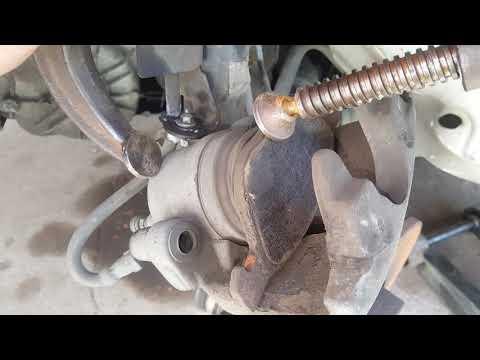

Step 9: Compress the caliper piston

• Check the brake fluid reservoir level under the hood before compressing the piston.
• Place one old pad against the piston face, then use a C-clamp (6 inch) to slowly press the piston fully into the caliper.
• If the reservoir starts to overfill, stop and remove a little fluid (do not spill on paint).

Step 10: Install the new pads

• Apply a thin film of brake caliper grease (silicone) to the pad “ears” where they touch the clips (do not get grease on the pad friction material or rotor).
• Install the new inner and outer pads into the bracket by hand.

Step 11: Reinstall the caliper

• Lower the caliper over the new pads.
• Install the caliper slide pin bolts using a 7mm hex bit socket and ratchet.
• Use a torque wrench to finish tightening (a torque wrench tightens bolts to an exact safe spec): Torque to 28 Nm (21 ft-lbs).

Step 12: Reinstall the wheel

• Put the wheel back on and hand-thread the lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 135 Nm (100 ft-lbs).

Step 13: Repeat on the other front wheel

• Repeat Steps 1–12 for the other front side.
• Always replace pads on both sides.

---

✅ After Repair

• 🦶 With the engine OFF, press the brake pedal slowly 10–15 times until it feels firm (this seats the pistons against the new pads).
• 🧴 Re-check the brake fluid level and top off only if needed.
• 🔍 Test drive at low speed and confirm the car stops straight with no grinding.
• 🛑 Pad break-in: make 8–10 moderate stops from ~30 mph down to ~5 mph, with cool-down time between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
