🔧 Camry - Front Brake Pad Replacement

You’ll be removing the front wheels, unbolting the brake calipers, swapping the pads, and re-greasing the sliding parts so your Camry stops smoothly and quietly again.

This guide is written for a first-time DIYer with simple tools.

Difficulty Level: Beginner/Intermediate | Estimated Time: 1.5–2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the car with jack stands. Never work under a car held up only by a jack.
• ⚠️ Wear safety glasses and gloves. Rust, dust, and brake cleaner can hurt your eyes and skin.
• ⚠️ Work on a flat, solid surface and keep the car in Park with the parking brake engaged and wheel chocks behind the rear wheels.
• ⚠️ Do not press the brake pedal when a caliper is off the rotor, or the piston can pop out.
• ⚠️ Brake dust can be harmful. Do not blow it with compressed air; use brake cleaner and a brush.
• Battery disconnection is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum, Qty: 2)
• Wheel chocks
• Lug wrench or 21mm socket
• Ratchet handle (3/8" or 1/2" drive)
• Breaker bar (1/2" drive)
• 14mm socket
• 17mm socket
• Torque wrench (10–150 ft-lbs range)
• C-clamp (6" or larger) or disc brake piston compressor tool (specialty)
• Flathead screwdriver (medium size)
• Wire brush
• Bungee cord or wire hanger
• Shop rags or paper towels
• Disposable nitrile gloves
• Safety glasses
• Small nylon brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1 (replace both sides as a pair)
• Front brake pad hardware kit (pad clips/shims) - Qty: 1
• High-temperature brake lubricant - Qty: 1 small tube
• Brake cleaner spray (non-chlorinated) - Qty: 1–2 cans
• Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park your Camry on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear tires so the car cannot roll.
• Loosen the front wheel lug nuts about one turn with the lug wrench or 21mm socket while the car is still on the ground.
• Gather all tools and parts so you do not have to search mid-job.
• Open the hood and locate the brake fluid reservoir; make sure it is not overfilled. We may need extra space when pushing pistons in.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely lift and support the front of the car

• Use the floor jack at the front center jacking point (under the front subframe crossmember) to lift the front of your Camry.
• Place jack stands under the reinforced pinch welds behind each front wheel.
• Lower the car gently onto the jack stands using the floor jack. Give the car a small shake to confirm it is stable.

Step 2: Remove the front wheels

• Use the lug wrench or 21mm socket with ratchet or breaker bar to remove the loosened lug nuts from both front wheels.
• Remove both front wheels and set them aside.

Step 3: Inspect the brake assembly

• Identify the brake rotor (big round disc) and the brake caliper (clamp that holds the pads).
• Look at the rubber brake hose. Make a plan where you will hang the caliper with a bungee cord so it is not supported by the hose.

Step 4: Remove the caliper slide pin bolts

• Locate the two slide pin bolts on the backside of the caliper (top and bottom).
• Use a 14mm socket and ratchet to loosen and remove both slide pin bolts.
• Set the slide pin bolts on a clean rag so they stay free of dirt.

Step 5: Lift off and support the caliper

• Use a flathead screwdriver to gently pry the caliper away from the rotor if it is stuck. Go slowly to avoid damage.
• Lift the caliper off the pads and rotor.
• Use a bungee cord or wire hanger to hang the caliper from the coil spring or strut. Make sure the rubber brake hose is not stretched or twisted.

Step 6: Remove the old brake pads and hardware

• Slide the inner and outer brake pads out of the caliper bracket by hand.
• Remove the metal pad clips (hardware) from the caliper bracket. Note their orientation.
• Use a wire brush to clean the areas on the caliper bracket where the clips sit and where the pads contact. Spray with brake cleaner as needed.
• Let everything dry. Brake cleaner evaporates quickly.

Step 7: Compress the caliper piston

• Place an old pad against the caliper piston face.
• Use a C-clamp or disc brake piston compressor tool to slowly push the piston back into the caliper until it bottoms out.
• Watch the brake fluid reservoir under the hood as you compress. If the fluid level gets near the top, use a shop rag to soak out a little fluid to prevent overflow.
• Always compress slowly to avoid damaging seals.

Step 8: Clean and lube the slide pins

• Pull each slide pin out of the caliper bracket by hand, one at a time, so you do not mix up positions.
• Wipe each slide pin with a shop rag until clean.
• Apply a thin coat of high-temperature brake lubricant to each slide pin, then push it back into its boot until fully seated and moving smoothly.

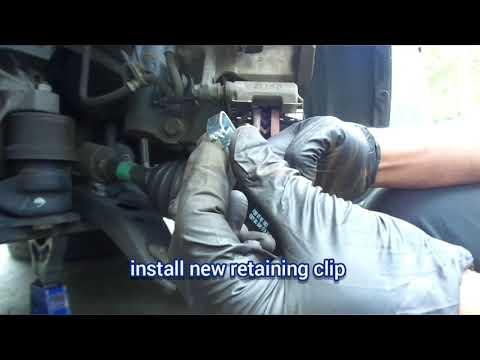

Step 9: Install new hardware clips

• Install the new metal clips from your front brake pad hardware kit onto the caliper bracket where the old ones were.
• Make sure they snap fully into place and sit flat.
• If they feel loose, remove and reseat until snug.

Step 10: Install the new brake pads

• Apply a very thin film of brake lubricant to the pad ears (the metal tabs that slide in the clips) and the areas where the pads touch the hardware. Do not get grease on the pad friction surface or rotor.
• Install the inner pad (usually the one with a wear indicator tab) into the caliper bracket, then the outer pad.
• Make sure both pads slide freely in the clips.

Step 11: Reinstall the caliper over the new pads

• Carefully lower the caliper over the new pads and rotor. Make sure the rubber brake hose is not twisted.
• Line up the caliper with the slide pin holes in the bracket.
• Insert the cleaned slide pin bolts by hand to avoid cross-threading.
• Use a 14mm socket and ratchet to tighten the slide pin bolts.
• Using a torque wrench with 14mm socket, tighten the slide pin bolts to 34 Nm (25 ft-lbs).

Step 12: Repeat on the other front side

• Repeat Steps 4–11 on the other front wheel.
• Do both sides before pressing the brake pedal.

Step 13: Reinstall wheels and lower the car

• Place each front wheel back on the hub and thread all lug nuts by hand.
• Use the lug wrench or 21mm socket with ratchet to snug the lug nuts in a star pattern (do not fully tighten yet).
• Use the floor jack to raise the car off the jack stands, remove the stands, then gently lower the car to the ground.
• Use a torque wrench with 21mm socket to tighten the lug nuts in a star pattern to 103 Nm (76 ft-lbs).

Step 14: Pump the brake pedal and check fluid

• Sit in the driver’s seat and slowly pump the brake pedal several times until it feels firm. This seats the pads against the rotors.
• Check the brake fluid reservoir under the hood. Adjust to the “MAX” line if needed.

---

✅ After Repair

• Start the engine and press the brake pedal several times. It should feel firm, not spongy.
• Check around both front calipers and hoses for any signs of fluid leaks.
• Test drive carefully at low speed first: 10–20 km/h, then 40–60 km/h. Listen for abnormal noises and ensure the car stops straight.
• For the first 300–500 km, avoid hard panic stops. Use gentle to moderate braking to bed in the new pads.

---
