🔧 RAV4 - Front Brake Pad Replacement

You’ll be removing the front wheels, unbolting the brake calipers, swapping the old pads for new ones, and then reassembling everything with proper lubrication and torque. This restores braking performance and stops grinding or squealing from worn pads.

Difficulty Level: Beginner | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the RAV4 with jack stands; never work under a vehicle held only by a floor jack.
• 🧯 Wear safety glasses and mechanic gloves; brake dust and metal edges can injure your eyes and hands.
• 🔥 Brakes get very hot after driving; let them cool for at least 30 minutes before starting.
• 🧰 Loosen wheel lug nuts slightly while the RAV4 is still on the ground to avoid spinning the wheel in the air.
• 🧪 Do not let the caliper hang by the rubber brake hose; support it with wire or a bungee cord.
• 💧 Avoid getting any grease or brake fluid on the pad friction surface or rotor face.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ Lug wrench 21mm
• 🛠️ Socket wrench 3/8" drive
• 🛠️ Socket wrench 1/2" drive
• 🛠️ 14mm socket
• 🛠️ 17mm socket
• 🛠️ 21mm socket
• 🛠️ Torque wrench 3/8" drive (5–60 ft-lbs range)
• 🛠️ Torque wrench 1/2" drive (30–150 ft-lbs range)
• 🛠️ C-clamp 6" or 8"
• 🛠️ Flathead screwdriver medium
• 🛠️ Wire brush small
• 🛠️ Bungee cord
• 🛠️ Shop rags
• 🛠️ Brake cleaner spray
• 🛠️ Nitrile or mechanic gloves
• 🛠️ Safety glasses
• 🛠️ Plastic or rubber mallet

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧷 Front brake pad set (left and right) - Qty: 1 set (replace both sides together)
• 🧷 Front brake pad hardware kit (pad clips/shims) - Qty: 1 set
• 🧷 High-temperature brake grease - Qty: 1 small tube
• 🧷 Brake cleaner spray - Qty: 1–2 cans
• 🧷 Anti-seize compound - Qty: small tube (for wheel hub/lug nuts, optional)

---

📋 Before You Begin

• 🚗 Park the RAV4 on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels to keep the vehicle from rolling.
• 📦 Lay out all tools and parts so you’re not searching mid-job.
• 🧴 Open the hood and locate the brake fluid reservoir; note the fluid level so you can check if it rises when compressing caliper pistons.
• 📸 Take a clear photo of the front brake assembly before disassembly; it’s a great reference during reassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen front wheel lug nuts

• Use the lug wrench 21mm (or 21mm socket with 1/2" drive socket wrench) to break loose each front wheel lug nut about one turn. Do not remove them yet.
• Crack lugs loose before jacking up.

Step 2: Lift and support the front of the RAV4

• Position the floor jack under the front center jacking point (under the front crossmember, behind the radiator area).
• Jack up the front of the RAV4 until both front wheels are off the ground.
• Place jack stands under the reinforced pinch welds or frame rails on both sides, then carefully lower the vehicle onto the stands using the floor jack.
• Give the vehicle a gentle push to confirm it’s stable on the stands.

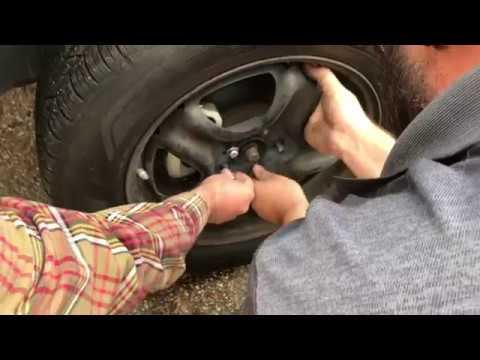

Step 3: Remove the front wheels

• Use the 21mm socket and 1/2" drive socket wrench to remove the front wheel lug nuts fully.
• Pull the front wheels off and set them aside.
• Slide wheels under frame as extra safety.

Step 4: Inspect the brake assembly

• Look at the caliper (the part that squeezes the pads) and the rotor (large metal disc).
• Check the rotor surface for deep grooves or heavy rust. Light grooves are normal; heavy damage may require rotor replacement, which is a separate job.

Step 5: Remove the caliper slide pin bolts

• Turn the steering wheel (with ignition on, then off again) to give better access to the caliper bolts if needed.
• Use the 14mm socket and 3/8" drive socket wrench to remove the two caliper slide pin bolts on the back of the caliper (top and bottom).
• Set the bolts in a safe place; you’ll reuse them.

Step 6: Lift and support the caliper

• Use a flathead screwdriver medium to gently pry the caliper away from the pads if it’s tight.
• Lift the caliper off the rotor and old pads.
• Hang the caliper from the suspension spring using a bungee cord so there is no strain on the rubber brake hose.
• Never let caliper hang by its hose.

Step 7: Remove old brake pads and hardware

• Slide the old brake pads out of the caliper bracket by hand.
• Remove the metal pad clips (hardware) from the caliper bracket using your fingers or the flathead screwdriver medium.
• Note how everything was positioned; use your earlier photo if needed.

Step 8: Clean the caliper bracket and area

• Use the wire brush small to clean rust and dirt from the pad contact areas on the caliper bracket.
• Spray the area with brake cleaner spray to remove dust and debris; let it drip into a catch pan or onto rags.
• Do not spray brake cleaner on painted surfaces; wipe off immediately if you do.

Step 9: Install new hardware clips

• Snap the new pad clips from your pad hardware kit into the caliper bracket where the old clips were removed.
• Ensure each clip is fully seated and not bent.

Step 10: Lubricate pad contact points

• Apply a very thin layer of high-temperature brake grease to the surfaces of the new clips where the pads will slide.
• Do not get grease on the friction surfaces of the pads or the rotor.
• Less grease is better than too much.

Step 11: Compress the caliper piston

• Check the brake fluid level in the reservoir under the hood; if it’s at the very top, remove a little fluid with a clean syringe or rag to prevent overflow when you compress the piston.
• Place one of the old pads against the caliper piston face.
• Position the C-clamp 6" or 8" with one end on the back of the caliper and the other on the old pad.
• Slowly tighten the C-clamp until the caliper piston is fully pushed back into the caliper housing.
• Remove the C-clamp and old pad once the piston is fully seated.

Step 12: Install new brake pads

• Compare the new pads to the old ones to be sure they match in shape and size.
• If your new pads have inner and outer pads (one with a wear indicator tab), install them in the same positions as the originals: usually the pad with the metal wear tab goes on the inner side.
• Apply a thin layer of high-temperature brake grease on the metal backing plates where they contact the caliper or hardware (not on the friction material).
• Slide the new pads into the caliper bracket, making sure they move freely in the new clips.

Step 13: Reinstall the caliper over the new pads

• Remove the bungee cord and carefully set the caliper back over the new pads and rotor.
• Make sure the caliper slide pin boots are aligned with the holes in the caliper.
• Install the two 14mm caliper slide pin bolts by hand to avoid cross-threading.
• Use the 14mm socket and 3/8" drive socket wrench to snug them down.
• Then use the 3/8" drive torque wrench and 14mm socket to tighten the slide pin bolts to 34 Nm (25 ft-lbs).

Step 14: Repeat on the other front side

• Repeat Steps 5–13 for the other front wheel.
• Try to keep both sides’ work at the same stage so you can use the other side as a visual reference.

Step 15: Reinstall wheels

• Place each wheel back on its hub and hand-thread the lug nuts.
• Use the 21mm socket and 1/2" drive socket wrench to snug the lug nuts in a star pattern, but do not fully torque yet.

Step 16: Lower the vehicle and torque lug nuts

• Use the floor jack to lift the RAV4 slightly and remove the jack stands, then lower the vehicle fully to the ground.
• Use the 1/2" drive torque wrench and 21mm socket to tighten the front wheel lug nuts in a star pattern to 103 Nm (76 ft-lbs).
• Star pattern helps the wheel sit flat.

Step 17: Pump the brake pedal and check fluid

• Before driving, sit in the driver’s seat and slowly press the brake pedal several times until it feels firm. This seats the pads against the rotors.
• Check the brake fluid level in the reservoir and adjust to the “MAX” line if needed.
• Inspect around the calipers for any signs of leaks or loose parts.

---

✅ After Repair

• 🚘 Start the engine and press the brake pedal again to confirm it feels firm, not spongy.
• 🛣️ Take a short, slow test drive in a safe area. Check that the RAV4 stops smoothly, with no pulling to one side and no grinding or loud squealing.
• 🔁 Bed-in (break in) the new pads: make 5–10 gentle stops from about 30–40 km/h down to 5–10 km/h, letting the brakes cool slightly between each stop. Avoid hard emergency-style braking for the first 300–500 km unless necessary.
• 👀 After the test drive, recheck lug nut torque and look for any fresh fluid leaks or unusual smells.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$450 (parts + labor)

DIY Cost: $60–$150 (parts only)

You Save: $190–$300 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
