🔧 Corolla - Front Brake Pad Replacement

Your Corolla’s front brake pads are clamped against the rotor (brake disc) to slow the car down. Replacing worn pads restores stopping power and prevents damage to the rotors.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the car with jack stands before going under or removing wheels.
• ⚠️ Do not press the brake pedal while the caliper is off the rotor, or the piston can pop out and leak fluid.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air, to clean parts.
• ⚠️ Keep grease off pad friction material and the rotor surface.
• ⚠️ Check brake fluid level after compressing the piston—overflow can damage paint.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• Breaker bar (1/2")
• Torque wrench (10–150 ft-lbs range)
• 14mm socket
• 17mm socket
• Ratchet (3/8" or 1/2")
• C-clamp (6")
• Flathead screwdriver
• Bungee cord
• Wire brush
• Brake cleaner
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake hardware kit (clips/shims) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, put the shifter in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Pop the hood and locate the brake fluid reservoir. You can loosen the cap (don’t remove it fully) so fluid returns easier when you compress the piston.
• Loosen the front lug nuts slightly while the car is still on the ground (do not remove them yet).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the car

• Use a floor jack to lift the front of the car at the front center jacking point.
• Set the car onto jack stands at the proper front support points and gently lower the floor jack.
• Give the car a small shake to confirm it’s stable.

Step 2: Remove the front wheels

• Use a 21mm socket and ratchet (or breaker bar) to remove the lug nuts.
• Remove the wheels and set them aside.

Step 3: Remove the caliper (do not let it hang)

• Turn the steering wheel so you have more room to access the caliper.
• Use a 14mm socket and ratchet to remove the two caliper slide pin bolts.
• Lift the caliper off the rotor.
• Hang the caliper from the strut spring using a bungee cord (this prevents strain on the brake hose).
• Never hang it by the rubber hose.

Step 4: Remove old pads and hardware

• Pull the old brake pads out of the bracket by hand. If they’re stuck, use a flathead screwdriver gently.
• Remove the stainless hardware clips from the caliper bracket.
• Use brake cleaner to spray the bracket area, then scrub rust with a wire brush.

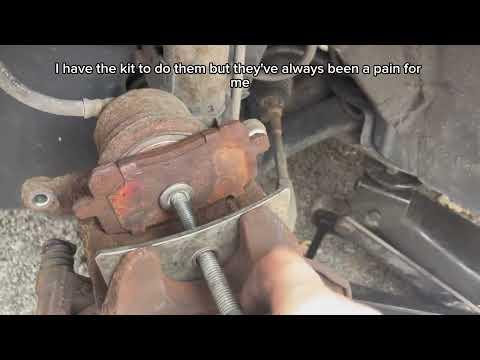

Step 5: Compress the caliper piston

• Place one old pad against the piston face (as a buffer).
• Use a C-clamp (6") to slowly press the piston back into the caliper until it’s fully seated.
• Check the brake fluid reservoir level under the hood. If it’s near full, remove a small amount (so it doesn’t overflow).
• Go slow—fast clamping can spill fluid.

Step 6: Install new hardware and pads

• Install the new hardware clips into the caliper bracket (same positions as removed).
• Apply a thin film of brake caliper grease (silicone) where the pad ears slide on the clips (not on the pad face).
• Install the new pads into the bracket.

Step 7: Reinstall the caliper and torque bolts

• Lower the caliper over the new pads.
• Install the caliper slide pin bolts by hand first to avoid cross-threading.
• Use a 14mm socket and torque wrench to tighten the slide pin bolts: Torque to 34 Nm (25 ft-lbs).
• If you removed the caliper bracket (only if necessary), use a 17mm socket and torque wrench for the bracket bolts: Torque to 107 Nm (79 ft-lbs).

Step 8: Reinstall wheels and lower the car

• Put the wheels back on and thread lug nuts by hand.
• Snug the lug nuts with a 21mm socket in a star pattern.
• Use the floor jack to lift slightly, remove the jack stands, then lower the car.
• Use a torque wrench to tighten lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• With the engine OFF, press the brake pedal 10–15 times until it feels firm (this seats the pads against the rotor).
• Check the brake fluid level and top off with DOT 3 if needed (do not overfill).
• Start the engine and confirm the brake pedal feels normal.
• Test drive at low speed first. Do a few gentle stops to confirm no pulling, grinding, or warning lights.
• A slight smell is normal at first.

---
