🔧 Tacoma - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the brake calipers, swap in new rotors and pads, then reassemble and torque everything correctly. This restores stopping power and prevents vibration or grinding when braking.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the front of your Tacoma with jack stands; never work under a vehicle held up only by a floor jack.
• ⚠️ Wear safety glasses and mechanic gloves; brake dust and metal edges can injure eyes and hands.
• ⚠️ Do not press the brake pedal with a caliper removed; this can push pistons out and cause a brake fluid leak.
• ⚠️ Keep brake fluid off paint; it can damage painted surfaces. Wipe any spills immediately.
• ⚠️ Work on one side at a time so you can use the other side as a visual reference.
• ⚠️ Battery disconnect is not required for front pads/rotors on your Tacoma.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ 21mm socket (for lug nuts)
• 🛠️ 1/2" drive breaker bar
• 🛠️ 1/2" drive torque wrench (20–150 ft-lbs range)
• 🛠️ 14mm socket (front caliper slide pin bolts)
• 🛠️ 17mm socket (front caliper mounting bracket bolts)
• 🛠️ 3/8" drive ratchet
• 🛠️ Short extension (3"–6")
• 🛠️ C-clamp (6" or larger) or disc brake piston tool
• 🛠️ Flathead screwdriver (medium size)
• 🛠️ Wire brush (for cleaning rust from hub and bracket)
• 🛠️ Bungee cord or wire hanger (to hang caliper)
• 🛠️ Shop rags
• 🛠️ Brake cleaner spray
• 🛠️ Small nylon brush (optional, to clean slide pin bores)
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front brake rotor set - Qty: 2 (replace in pairs)
• 🔩 Front brake pad set - Qty: 1 (includes inner and outer pads for both sides)
• 🔩 Front brake hardware kit (pad clips/shims, if not included with pads) - Qty: 1
• 🔩 High-temperature brake grease - Qty: 1 small tube
• 🔩 Brake cleaner (aerosol) - Qty: 1–2 cans
• 🔩 Anti-seize compound - Qty: 1 small tube (optional but recommended)

---

📋 Before You Begin

• Park your Tacoma on a flat, solid surface, set the parking brake, and place wheel chocks behind the rear wheels.
• Loosen (but do not remove) the front lug nuts with a 21mm socket before lifting the truck.
• Gather all tools and parts so you don’t have to stop mid-job.
• Open the hood and locate the brake fluid reservoir. Make sure the fluid is not filled above the MAX line; you may need to remove a little with a clean syringe if it’s very full because pushing the pistons back will raise the level.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front of the Tacoma

• Use the floor jack (3-ton) under the front crossmember (center front jack point) to raise the front of the truck.
• Place jack stands under the frame rails behind each front wheel, then slowly lower the truck onto the stands with the floor jack.
• Verify stability by gently rocking the truck before removing any wheels. If it moves, reposition stands.

Step 2: Remove front wheels

• Use the 21mm socket and breaker bar or ratchet to remove the lug nuts on one front wheel.
• Pull the wheel straight off and set it aside under the truck as an extra safety backup if you like.
• Repeat for the other front wheel, or complete one side at a time.

Step 3: Inspect the front brake assembly

• Identify the caliper (the part that squeezes the brake pads), the caliper bracket (metal holder behind pads), and the rotor (the large metal disc).
• Look for any wetness or leaks around the caliper or brake hose; if you see fluid, stop and have the system inspected by a professional.

Step 4: Remove caliper slide pin bolts

• Locate the two smaller bolts on the back of the caliper (top and bottom). These are the slide pin bolts.
• Use a 14mm socket and 3/8" ratchet to loosen and remove both slide pin bolts.
• Gently slide the caliper off the pads and rotor. If it’s stuck, use a flathead screwdriver to gently pry between the pad and rotor.
• Hang the caliper from the suspension spring using a bungee cord or wire hanger so there is no strain on the rubber brake hose. Never let caliper hang by hose.

Step 5: Remove brake pads and hardware

• Slide the old pads out of the caliper bracket by hand.
• Remove the metal pad clips/hardware from the caliper bracket with your flathead screwdriver if they don’t simply pull out.
• Take note of how the pads and clips were installed so you can match the orientation with the new ones.

Step 6: Remove caliper bracket

• Locate the two larger bolts that hold the caliper bracket to the steering knuckle.
• Use a 17mm socket and breaker bar to loosen and remove these bolts.
• Remove the caliper bracket and set it on a clean surface.

Step 7: Remove the old rotor

• Slide the old rotor off the wheel hub. If it’s rusted and stuck, tap around the rotor hat (center section) with your hand or a rubber mallet until it loosens.
• Do not hit the wheel studs directly.

Step 8: Clean the hub surface

• Spray some brake cleaner on the hub surface.
• Use the wire brush to scrub off rust and debris from the hub face where the rotor sits. A clean, flat surface prevents rotor wobble and brake pulsation.
• Wipe with a shop rag until clean and dry.
• Apply a very thin layer of anti-seize compound to the hub face if desired (avoid studs). Thin film is enough.

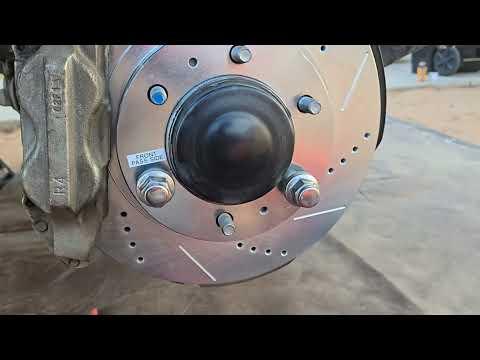

Step 9: Install new rotor

• Spray the new rotor (both sides) with brake cleaner to remove any protective oil, then wipe with a clean shop rag.
• Slide the new rotor onto the hub, lining up with the wheel studs.
• You can hold it in place with one or two lug nuts threaded on by hand using the 21mm socket to gently snug them so the rotor doesn’t wobble while you work.

Step 10: Clean and prep caliper bracket

• Spray the caliper bracket with brake cleaner and scrub the pad contact areas with the wire brush to remove rust and buildup.
• If your pads use separate pad clips, snap the new clips from the hardware kit into place on the bracket by hand.
• Apply a very light coat of brake grease to the areas of the clips where the pads slide. Do not get grease on rotor.

Step 11: Reinstall caliper bracket

• Position the caliper bracket over the new rotor and align the bolt holes.
• Install the two large bracket bolts by hand first to avoid cross-threading.
• Use a 17mm socket and ratchet to snug them, then use the torque wrench with the 17mm socket to tighten to 123 Nm (91 ft-lbs).

Step 12: Install new brake pads

• Compare new pads to old ones to confirm they match.
• Apply a thin film of brake grease to the backup plates (metal side) where they contact the clips and caliper, not on the friction material.
• Slide the new inner and outer pads into the caliper bracket, following the same orientation as the originals.

Step 13: Compress the caliper pistons

• Place an old brake pad against the caliper pistons (the round parts that press against the pads).
• Use a C-clamp over the back of the caliper and the old pad to slowly press the pistons back into the caliper housing.
• Tighten the C-clamp slowly until the pistons are fully seated and flush. Watch the brake fluid reservoir to ensure it does not overflow; remove extra fluid with a clean rag or syringe if needed.
• Remove the C-clamp and old pad once pistons are fully retracted.

Step 14: Reinstall caliper over new pads

• Lower the caliper down over the new pads and onto the caliper bracket.
• Align the caliper slide pin holes with the bracket.
• Apply a small amount of brake grease to the smooth part of the slide pins if you removed them; do not get grease on threads.
• Install the upper and lower slide pin bolts by hand.
• Use a 14mm socket and ratchet to snug them, then torque with the torque wrench to 34 Nm (25 ft-lbs).

Step 15: Repeat on the other front side

• Repeat Steps 4–14 on the other front brake assembly.
• Always replace pads and rotors on both sides to keep braking balanced.

Step 16: Reinstall front wheels

• Remove any lug nuts you used to hold the rotors on.
• Mount each wheel back onto the hub, lining up with the studs.
• Thread lug nuts on by hand to avoid cross-threading.
• Use the 21mm socket and ratchet to snug the lug nuts in a star pattern while the truck is still on jack stands.

Step 17: Lower the Tacoma and torque lug nuts

• Use the floor jack to lift the front slightly, remove the jack stands, then gently lower the truck to the ground.
• With the wheels on the ground, use the torque wrench and 21mm socket to torque the lug nuts in a star pattern to 113 Nm (83 ft-lbs).

Step 18: Pump the brake pedal

• Before driving, sit in the driver’s seat with the engine off.
• Press the brake pedal slowly several times until it becomes firm. This seats the pads against the rotors.
• Check the brake fluid level and top off to the MAX line with the correct brake fluid type if needed.

---

✅ After Repair

• Start the engine and press the brake pedal again; it should feel firm and consistent.
• Check around each front caliper and hose for any fluid leaks or rubbing hoses.
• Perform a short test drive: first in a parking lot, then on a quiet road. Make several gentle stops from low speeds to confirm smooth braking with no pulling, grinding, or vibration.
• Brake pad break-in (bedding) for new pads and rotors: make 5–10 medium stops from about 30–40 mph down to 5–10 mph, allowing a bit of time between stops for cooling. Avoid hard panic stops and long pedal holds for the first 200–300 miles.
• After the test drive, recheck lug nut torque to 113 Nm (83 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $550–$850 (parts + labor)

DIY Cost: $220–$380 (parts only)

You Save: $330–$470 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
