🔧 Tacoma - Front Brake Pads & Rotor Replacement

You’ll be replacing the front brake pads and brake rotors on your Tacoma. This restores stopping power, reduces vibration when braking, and protects the calipers from damage.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support your Tacoma with jack stands; never work under a vehicle held only by a jack.
• ⚠️ Work on a flat, solid surface and set the parking brake; keep the truck in gear so it cannot roll.
• ⚠️ Brakes and wheels can get very hot; only work when everything is completely cool.
• ⚠️ Brake dust can be harmful; avoid blowing it with air, and use brake cleaner instead.
• ⚠️ Do not press the brake pedal with a caliper removed, or the piston can pop out.
• ⚠️ Keep all grease and oil off the rotor and pad friction surfaces.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ Lug wrench or 21mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet
• 🛠️ 14mm socket
• 🛠️ 17mm socket
• 🛠️ 10mm socket
• 🛠️ Torque wrench (3/8" or 1/2" drive)
• 🛠️ C-clamp or disc brake piston compressor tool (specialty)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ Wire brush
• 🛠️ Bungee cord or mechanics wire
• 🛠️ Rubber mallet
• 🛠️ Brake cleaner spray
• 🛠️ Disposable shop towels or rags
• 🛠️ Small pick tool
• 🛠️ Safety glasses
• 🛠️ Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

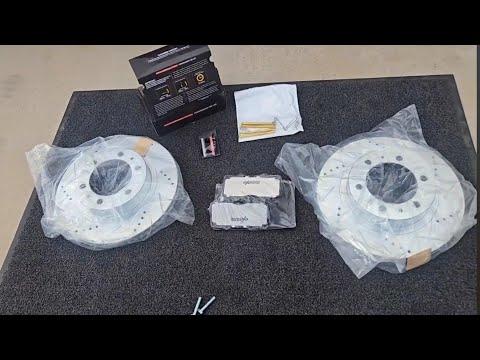

• 🔩 Front brake pad set (left and right) - Qty: 1 set
• 🔩 Front brake rotors - Qty: 2
• 🔩 Front brake hardware kit (pad clips/anti-rattle shims) - Qty: 1 set
• 🔩 Caliper slide pin boots - Qty: 4 (optional but recommended)
• 🔩 High-temperature brake grease - Qty: 1 tube
• 🔩 Brake cleaner - Qty: 1-2 cans
• 🔩 Anti-seize compound - Qty: 1 small tube
• 🔩 Front wheel lug nuts - Qty: 12 (optional, if any are damaged)

---

📋 Before You Begin

• Park your Tacoma on level ground, in gear, with the parking brake fully applied.
• Place wheel chocks behind the rear wheels.
• Loosen (do not remove) the front wheel lug nuts one turn while the truck is on the ground.
• Identify the front jacking point: use the front frame crossmember, then support on the frame rails with jack stands.
• Open the hood and locate the brake fluid reservoir; if fluid is at the very top, you may need to remove a little with a clean syringe so it doesn’t overflow when you push the pistons back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and Support the Front of the Truck

• Use the floor jack under the front frame crossmember to raise the front of your Tacoma until both front wheels are off the ground.
• Place jack stands under the frame rails behind each front wheel and lower the truck gently onto the stands.
• Use the 21mm socket and ratchet (or lug wrench) to remove the front wheel lug nuts and take off both front wheels.
• Torque spec for reinstallation later: 113 Nm (83 ft-lbs)

Step 2: Inspect the Brake Setup

• Look at the front brake: you’ll see the rotor (big disc) and the caliper (clamp) over the pads.
• Note the brake hose routing and how the pads and shims are installed for reference.
• Take a quick photo as a memory aid.

Step 3: Remove Caliper Slide Bolts and Caliper

• Locate the two caliper slide bolts on the back of the caliper (upper and lower).
• Use the 14mm socket and 3/8" ratchet to remove both slide bolts.
• Carefully slide the caliper off the pads and rotor; if it’s stuck, gently wiggle it side to side by hand.
• Use the bungee cord or mechanics wire to hang the caliper from the suspension spring so the brake hose is not stretched.
• Torque spec for reinstallation later (slide bolts): 34 Nm (25 ft-lbs)

Step 4: Remove Old Pads and Hardware

• Slide the old pads out of the caliper bracket by hand.
• Use the needle-nose pliers to remove any pad retaining clips or springs from the bracket.
• Use the small pick tool to help lift out the old stainless steel pad clips from the caliper bracket.
• Inspect the clips and shims; you will install new ones from the hardware kit.

Step 5: Remove Caliper Bracket

• Find the two larger caliper bracket bolts on the back of the steering knuckle.
• Use the 17mm socket and 1/2" ratchet to remove both bolts; these may be tight, so use steady force.
• Remove the caliper bracket and set it on a clean surface.
• Torque spec for reinstallation later (caliper bracket bolts): 107 Nm (79 ft-lbs)

Step 6: Remove the Old Rotor

• If your rotor comes off easily, slide it straight off the hub by hand.
• If it’s stuck from rust, first remove any small retaining clips on the wheel studs using needle-nose pliers (if present).
• Tap around the rotor hat (center part) with a rubber mallet to break it free, then slide it off.
• Hit the rotor, not other parts.

Step 7: Clean the Hub Surface

• Use the wire brush to clean rust and debris from the hub face where the rotor sits.
• Spray a little brake cleaner and wipe with shop towels to get a clean, smooth surface.
• Apply a very thin film of anti-seize compound to the hub face to help prevent the new rotor from sticking in the future (avoid getting any on wheel studs).

Step 8: Prep and Install the New Rotor

• Spray the new rotor (both sides) with brake cleaner to remove the oily protective coating, then wipe dry with clean rags.
• Slide the new rotor onto the hub and seat it fully.
• To keep it from wobbling, thread on one or two lug nuts by hand using the 21mm socket to hold the rotor snug against the hub.

Step 9: Service the Caliper Bracket and Slide Pins

• On the caliper bracket, pull the rubber boots back and slide the caliper pins out one at a time.
• Wipe old grease and dirt off the pins with rags and brake cleaner.
• Inspect the rubber boots for damage and replace with new boots if needed.
• Apply a thin coat of high-temperature brake grease to each slide pin and reinstall them, making sure they move smoothly.
• Pins should slide freely with light resistance.

Step 10: Install New Pad Hardware (Clips)

• Install the new stainless steel pad clips from the hardware kit into the caliper bracket by hand; they should snap firmly into place.
• Use the small pick tool if needed to fully seat the clips.
• Apply a very light film of high-temperature brake grease on the areas where the pad “ears” will slide on the clips. Do not get grease on the pad friction surfaces.

Step 11: Reinstall Caliper Bracket

• Position the caliper bracket back over the new rotor.
• Install the two caliper bracket bolts by hand.
• Tighten them using the 17mm socket and 1/2" ratchet, then finish with the torque wrench.
• Torque to 107 Nm (79 ft-lbs)

Step 12: Install New Brake Pads

• Check your new pads: one may have a small wear indicator tab; match it to the same position as on the old pads (usually the inner pad).
• Slide the new pads into the caliper bracket on each side of the rotor, making sure they sit flat and move freely in the new clips.
• If your pads came with shims, install them on the back of the pads as directed by the kit.

Step 13: Compress the Caliper Piston

• Set the caliper on a solid surface or hold it in your hand.
• Place an old brake pad against the piston face in the caliper.
• Use the C-clamp or disc brake piston compressor tool to slowly press the piston back into the caliper until it is fully seated. Go slowly to avoid damaging seals.
• Check the brake fluid reservoir under the hood to ensure it doesn’t overflow as the piston goes in; remove excess fluid if needed using a clean tool.

Step 14: Reinstall the Caliper

• Position the caliper over the new pads and rotor, making sure the slide pins line up with their holes in the caliper.
• Install the two caliper slide bolts by hand to avoid cross-threading.
• Tighten using the 14mm socket and 3/8" ratchet, then torque them properly.
• Torque to 34 Nm (25 ft-lbs)

Step 15: Repeat on the Other Front Side

• Repeat Steps 3 through 14 on the other front wheel.
• Always replace pads and rotors in pairs.

Step 16: Reinstall Wheels and Lower the Truck

• Remove any lug nuts you used to hold the rotor in place with the 21mm socket.
• Put the wheels back on and hand-thread all lug nuts.
• Use the floor jack to raise the truck slightly, remove the jack stands, and lower the truck fully to the ground.
• Use the torque wrench with 21mm socket to tighten the lug nuts in a star pattern.
• Torque to 113 Nm (83 ft-lbs)

Step 17: Pump the Brake Pedal and Check Fluid

• Before starting the engine, sit in the driver’s seat and slowly pump the brake pedal several times until it feels firm. This seats the pads against the rotors.
• Check the brake fluid level in the reservoir and adjust to the “MAX” line if needed.
• Inspect around both calipers and brake hoses for any leaks or loose parts.

---

✅ After Repair

• Start the engine and press the brake pedal; it should feel firm and consistent.
• Perform a short, low-speed test drive in a safe area: gently brake from 20–30 km/h a few times to make sure the truck stops straight with no odd noises.
• Bed-in (break-in) the new pads: make 5–10 smooth stops from 40–50 km/h down to 10–15 km/h, allowing some cooling time between stops. Avoid hard panic stops at first.
• After the test drive, recheck lug nut torque and look for any leaks or unusual smells (a light odor from new brakes is normal early on).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
