🔧 Corolla - Front Brake Pads & Rotors Replacement

You’ll be replacing the front brake pads and brake rotors on your Corolla to restore braking power and get rid of any vibration or grinding. This job involves lifting the car, removing the wheels, then swapping pads and rotors on both front wheels.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🔹Always work on a flat, solid surface and use jack stands, never rely only on the jack.
• 🔹Engage the parking brake and chock (block) the rear wheels so the car cannot roll.
• 🔹Let the brakes cool fully before starting; hot brakes can burn you.
• 🔹Wear safety glasses and mechanic gloves to protect your eyes and hands.
• 🔹Do not press the brake pedal with a caliper removed; it can push the piston out.
• 🔹Keep all grease and oil off the friction surfaces of pads and rotors.
• 🔹You do not need to disconnect the battery for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔹Floor jack (rated 3-ton minimum)
• 🔹Jack stands (rated 3-ton minimum, Qty: 2)
• 🔹Wheel chocks
• 🔹Lug wrench (21mm)
• 🔹Socket wrench (3/8" drive)
• 🔹Socket wrench (1/2" drive)
• 🔹14mm socket
• 🔹17mm socket
• 🔹Breaker bar (1/2" drive)
• 🔹Torque wrench (1/2" drive, up to 150 ft-lbs)
• 🔹Torque wrench (3/8" drive, up to 50 ft-lbs)
• 🔹C-clamp (6" or larger)
• 🔹Flathead screwdriver (medium size)
• 🔹Wire brush (steel)
• 🔹Bungee cord or wire hanger
• 🔹Rubber mallet
• 🔹Brake cleaner spray
• 🔹Shop rags
• 🔹Small nylon brush
• 🔹Pick tool or small flat screwdriver
• 🔹Mechanic gloves
• 🔹Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔹Front brake pad set - Qty: 1 set (does both front wheels)
• 🔹Front brake rotors - Qty: 2 (replace in pairs)
• 🔹Front brake hardware kit (pad clips/shims) - Qty: 1
• 🔹High-temperature brake grease - Qty: 1 small tube
• 🔹Anti-seize compound - Qty: 1 small tube
• 🔹Brake cleaner spray - Qty: 1–2 cans
• 🔹Shop towels or paper towels - Qty: 1 pack

---

📋 Before You Begin

• 🔹Park your Corolla on level ground, shift to Park, and apply the parking brake.
• 🔹Place wheel chocks behind both rear wheels.
• 🔹Loosen (do not remove) the front wheel lug nuts with the 21mm lug wrench while the car is still on the ground.
• 🔹A torque wrench is a special wrench that lets you tighten bolts to a specific force; you’ll use it when reassembling.
• 🔹Open the hood so you can see the brake fluid reservoir; if the level is at the very top, you may need to remove a little fluid later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front of the car

• Use the floor jack (3-ton) at the front center jacking point (behind the front bumper on the subframe) to lift the front of the car.
• Place jack stands (3-ton) under the left and right front pinch welds (reinforced seam under the doors).
• Lower the car gently onto the jack stands using the floor jack.
• Remove the front wheels using the 21mm lug wrench.
• Give the car a small push to be sure it’s stable.

Step 2: Inspect the brake assembly

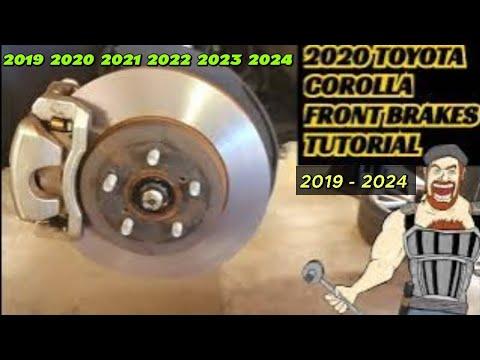

• Look at the front brake: you’ll see the rotor (large round disc) and the caliper (clamp that squeezes the rotor).
• Note the position of the caliper, pads, and any metal clips so you can put everything back correctly.

Step 3: Remove the caliper (outer clamp)

• On the back of the caliper, locate the upper and lower slide-pin bolts (usually 14mm heads).
• Use a 14mm socket and 3/8" drive socket wrench to loosen and remove both caliper slide-pin bolts.
• Carefully slide the caliper off the pads and rotor.
• Use a bungee cord to hang the caliper from the spring or strut so it is not hanging by the brake hose.
• Never let the caliper hang by the rubber hose.

Step 4: Remove the old brake pads

• Slide the inner and outer brake pads out of the caliper bracket using your hands or a flathead screwdriver if they are tight.
• Note any metal shims or clips attached to the pads; these will be replaced with new hardware from your kit.

Step 5: Remove the caliper bracket

• Behind the rotor, find the two large caliper bracket bolts (usually 17mm heads) that hold the bracket to the steering knuckle.
• Use a 17mm socket and breaker bar to loosen both bolts; they may be tight.
• Remove both bolts fully and take the caliper bracket off the rotor.
• Set the bracket on a clean surface or on a shop rag.

Step 6: Remove the old rotor

• If the rotor is loose, slide it straight off the hub.
• If it is stuck from rust, tap around the rotor hat (center area) with a rubber mallet to break it free.
• If your rotor has any small retaining screw and you see one, remove it with a suitable screwdriver; many Corollas do not use one.
• Hit the rotor face, not the dust shield behind it.

Step 7: Clean the hub surface

• Use a wire brush to clean rust and dirt from the wheel hub face where the rotor sits.
• Spray a small amount of brake cleaner on the hub and wipe with shop rags.
• Apply a thin film of anti-seize compound to the hub face to help prevent the new rotor from sticking in the future. Avoid getting any on the wheel studs.

Step 8: Install the new rotor

• Spray the new rotor (both sides) with brake cleaner to remove any protective oil coating, then dry with shop rags.
• Slide the new rotor onto the hub and seat it flat.
• You can hold it in place with one lug nut hand-threaded using the 21mm lug wrench to keep it from wobbling.

Step 9: Service the caliper bracket and hardware

• Take the caliper bracket you removed earlier.
• Remove the old pad clips from the bracket with a flathead screwdriver or pick tool.
• Use a wire brush and brake cleaner to clean the pad contact areas on the bracket.
• Install the new pad clips from your hardware kit, pressing them firmly into place.
• Check the caliper slide pins (the sliding pins the caliper bolts go into): pull each pin out carefully, wipe old grease off with a rag, then apply fresh high-temperature brake grease and slide them back in smoothly.
• The pins should move freely, not stick.

Step 10: Reinstall the caliper bracket

• Place the caliper bracket over the new rotor and align it with the mounting holes on the steering knuckle.
• Install the two large 17mm caliper bracket bolts by hand first to avoid cross-threading.
• Use a 17mm socket and breaker bar to snug them down.
• Then use the 17mm socket and 1/2" drive torque wrench to tighten the bracket bolts to 107 Nm (79 ft-lbs).

Step 11: Install the new brake pads

• Apply a very thin layer of high-temperature brake grease to the metal backing plate ears of the new pads where they contact the pad clips. Do not get grease on the pad friction surface.
• Install the inner and outer pads into the bracket, making sure they sit fully in the clips and move freely.
• If your pads come with a wear indicator tab, install them in the same position as the old pads (usually on the inner pad, top side).

Step 12: Compress the caliper piston

• Place the caliper on your work area with the piston facing you.
• Position an old pad or a flat piece of wood against the piston face.
• Use the C-clamp over the back of the caliper and the old pad, and slowly tighten the C-clamp to push the piston fully back into the caliper.
• Watch the brake fluid reservoir under the hood as you do this; if the fluid gets too close to the top, remove a little with a clean rag or small syringe.
• Go slowly to avoid damaging the piston seal.

Step 13: Reinstall the caliper over the new pads

• Remove the C-clamp and old pad.
• Place the caliper back over the new brake pads and onto the caliper bracket.
• Align the slide-pin holes with the threaded slide pins.
• Install the caliper slide-pin bolts by hand first.
• Use a 14mm socket and 3/8" drive socket wrench to snug them.
• Use the 14mm socket and 3/8" drive torque wrench to tighten the caliper slide-pin bolts to 34 Nm (25 ft-lbs).

Step 14: Repeat on the other front wheel

• Repeat Steps 3–13 on the other front brake assembly so both sides have new pads and rotors.
• Always replace pads and rotors in pairs left/right.

Step 15: Reinstall wheels and lower the car

• Remove any temporary lug nut holding the rotor in place.
• Mount each front wheel and install the lug nuts by hand.
• Use the 21mm lug wrench to snug the lug nuts in a star pattern.
• Use the floor jack to raise the car slightly, remove the jack stands, then lower the car fully to the ground.
• Use the 21mm socket and 1/2" drive torque wrench to torque the wheel lug nuts in a star pattern to 103 Nm (76 ft-lbs).

Step 16: Pump the brake pedal and check fluid

• Sit in the driver’s seat and slowly press the brake pedal 5–10 times until it becomes firm; this seats the pads against the rotors.
• Check the brake fluid level in the reservoir; it should be between MIN and MAX. Adjust if needed.

---

✅ After Repair

• 🔹Start the engine and gently press the brake pedal to confirm it feels firm, not spongy, and that the brake warning light is off.
• 🔹Do a short, low-speed test drive in a safe area: check for normal braking, no grinding noises, and no pulling to one side.
• 🔹For the first 300–500 km, avoid very hard stops if possible; this lets the pads and rotors “bed in” and wear in together.
• 🔹After the test drive, check around the front wheels for any leaks and recheck the lug nut torque.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 (parts + labor)

DIY Cost: $150–$250 (parts only)

You Save: $200–$300 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
